Internal cable routing and connectors
This topic provides illustraions of the internal cable routing and connectors.
About this task

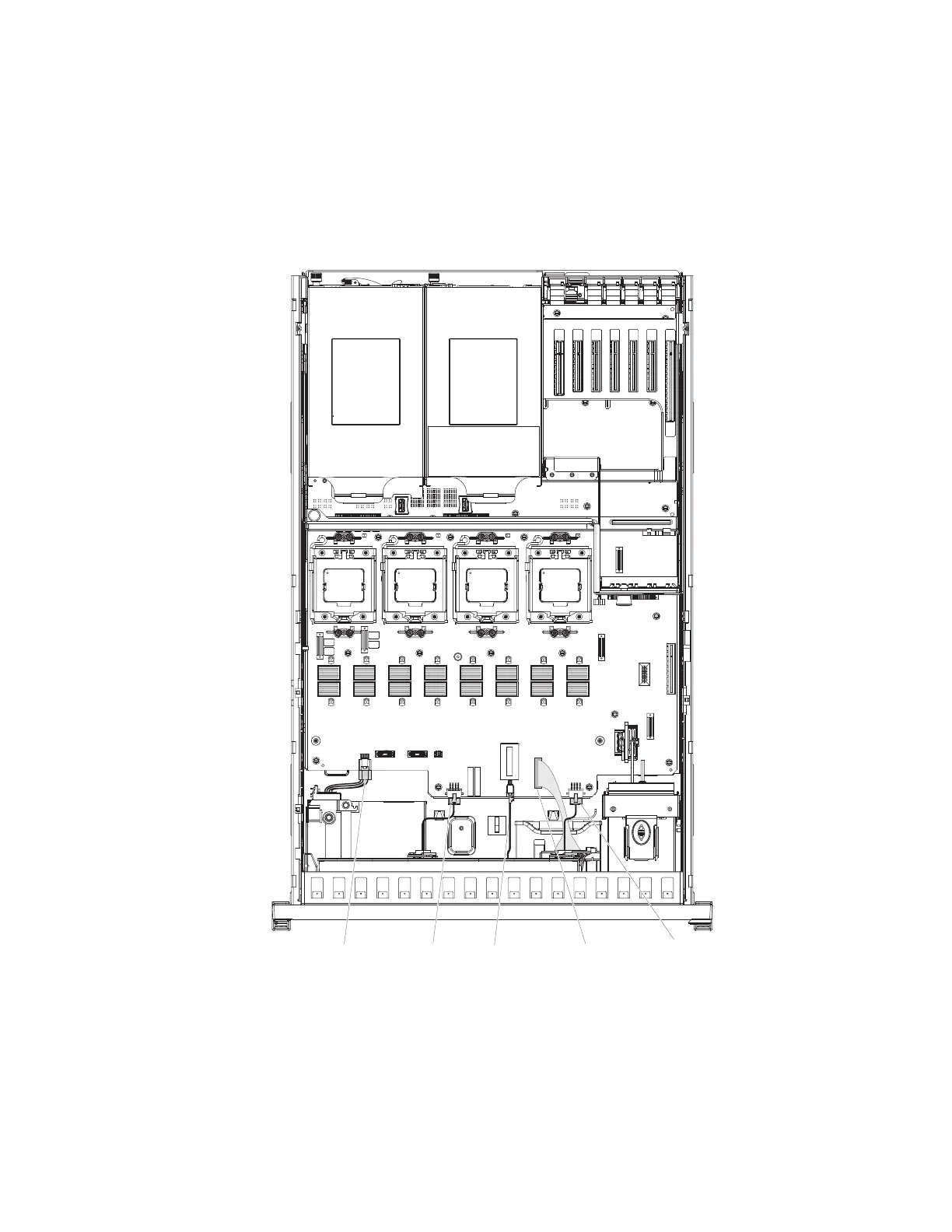

The following illustration shows the routing of the DVD power, fans 1 and 2,
scalability LED, and operator information cables.
DVD power
cable connector
Fan 1 cable
connector
Scalability
LED cable
Fan 2 cable
connector
Operator
information
cable
