I/O-board connectors
This topic provides an illusration that shows the connectors on the I/O board.

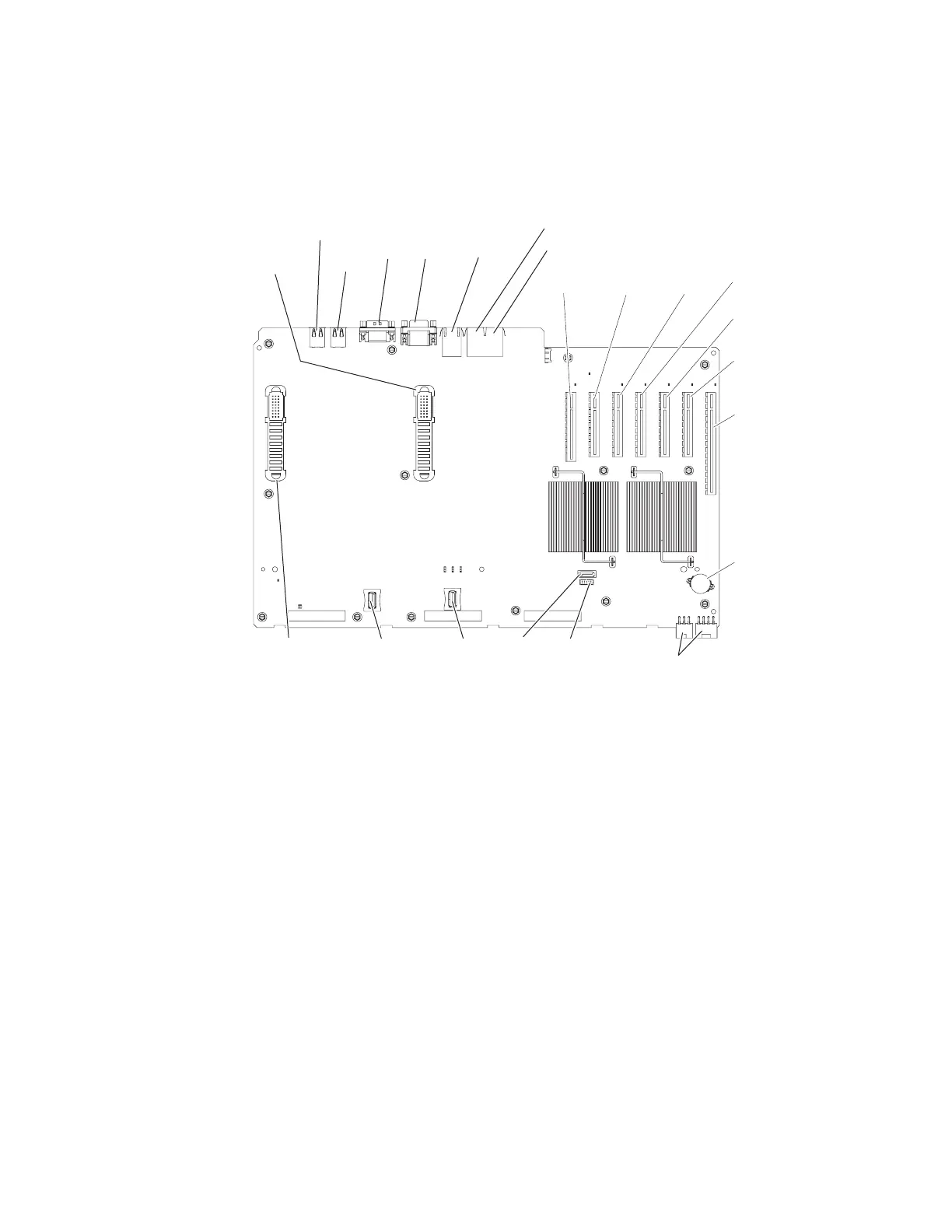

The following illustration shows the connectors on the I/O board.
PCIe2 x8
slot 7 slot 6
PCIe2 x8
slot 5
PCIe2 x8
slot 4
PCIe2 x8
slot 1
PCIe2 x16
slot 3
PCIe2 x8
slot 2
PCIe2 x8
(x4 electrically)
Ethernet 1
Ethernet 2
VideoSerialUSB
6 - 7
USB
4 - 5
Internal
USB
Internal
USB
S ATA
DVD
Front
USB
PCIe
auxiliary
power
Power
supply 1
Power
supply 2
System
management
Ethernet
Battery
Note: Slot 2 is electrically only x4.
I/O-board LEDs
This topic provides an illustration that shows the LEDs on the I/O board.
The following illustration shows the LEDs on the I/O board.
26 IBM System x3850 X5 and x3950 X5 Types 7145, 7146, 7143, and 7191: Problem Determination and Service Guide
