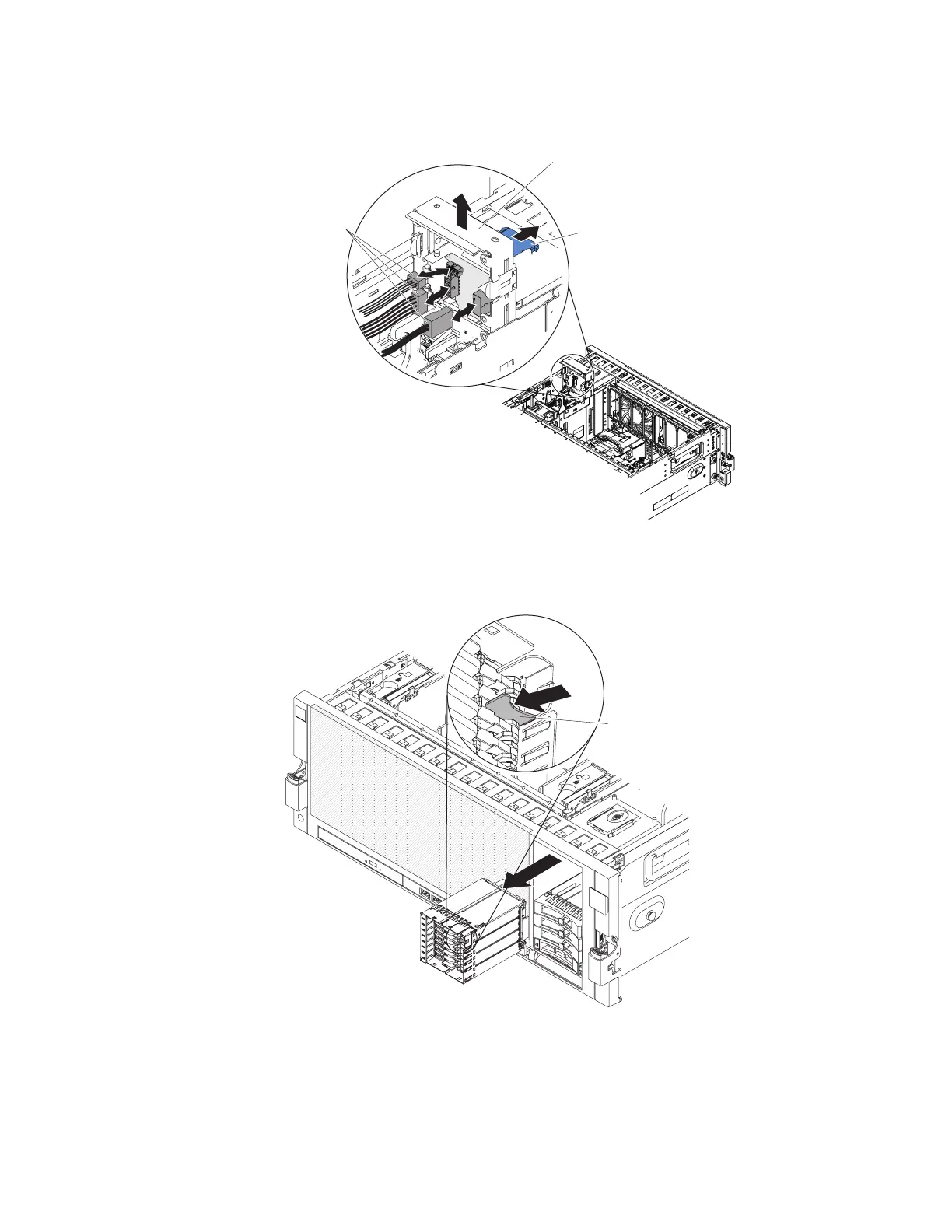

7. Slide the backplane retention release tab forward and slightly lift the hard disk
drive backplane carrier to disconnect the cables from the rear of the 1.8-inch
backplane and cage assembly.
Retention
release tab
Hard disk drive
backplane
carrier
Backplane
cables
8. Disconnect the signal cable and power and configuration cables from the
backplane.
9. Slide the backplane retention release tab forward and pull the solid state drive
backplane cage assembly out of the server.
Release
latch
10. If you are instructed to return the solid state drive backplane cage assembly,
follow all packaging instructions, and use any packaging materials for
shipping that are supplied to you.
158 IBM System x3850 X5 and x3950 X5 Types 7145, 7146, 7143, and 7191: Problem Determination and Service Guide
