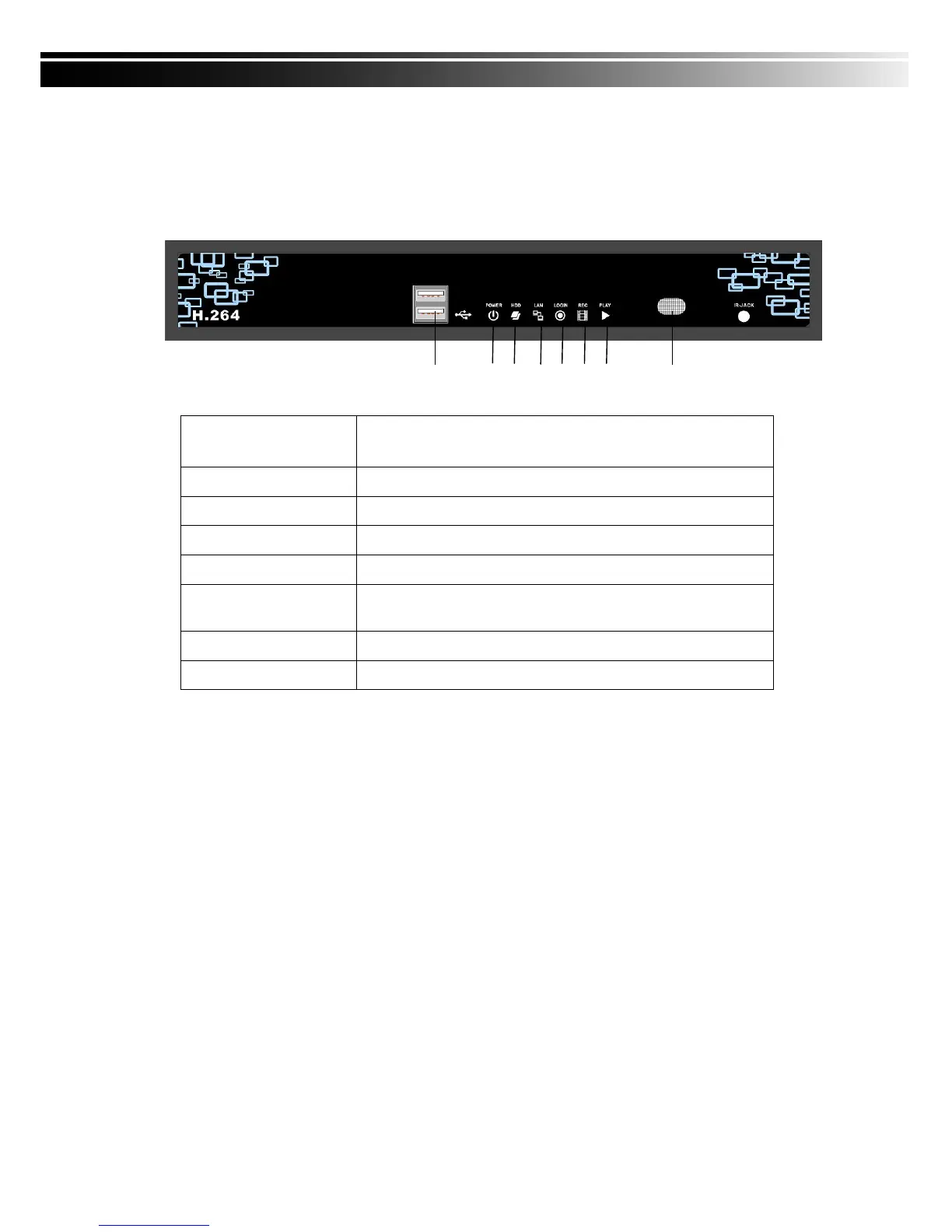

CHAPTER 2 PANEL LOCATION
2-1 FRONT PANEL CONTROLS
○
1
USB Port
Top(USB2.0) is used to plug the USB memory stick
Bottom(USB1.1) is used to plug the mouse
○
2
LED Display- Power
DVR Power is on.
○
3
LED Display - HDD
Hard disk is in use.
○
4
LED Display - LAN
Connected to the internet.
○
5
LED Display- LOGIN
Remote user logged in.
○
6
LED Display - REC
DVR Recording.
(or Schedule Recording and recording are
on)
○
7
LED Display - PLAY
DVR Playing back.
○
8
IR Sensor
Input sensor for the remote control.
④ ⑥
⑦
⑧
①
②
③
⑤
