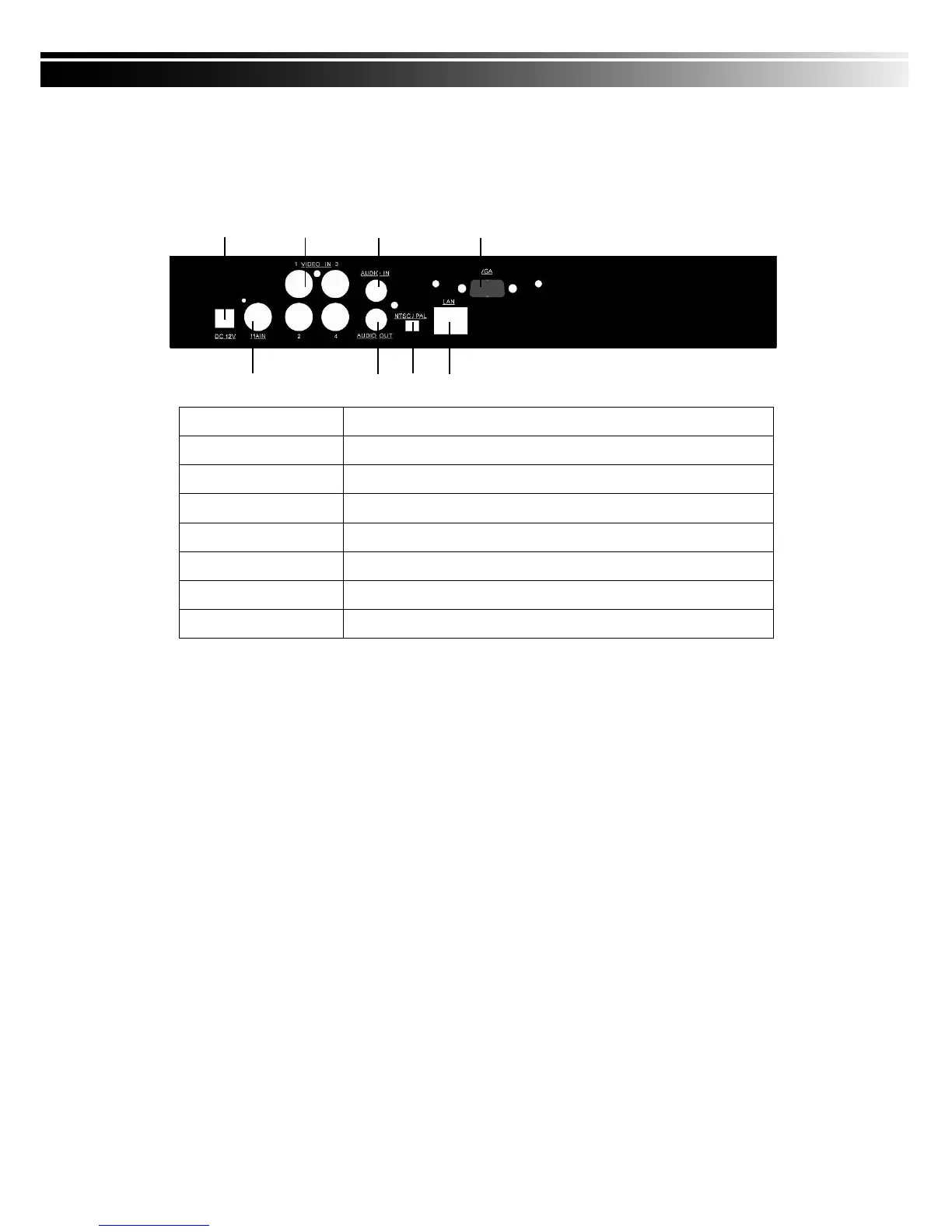

2-2 4CH REAR PANEL CONNECTORS
① ③ ④ ⑧
② ⑤ ⑥ ⑦
①
DC 12V
Socket for a DC 12V input.
② MAIN monitor
BNC port for the main monitor.
③ VIDEO IN
BNC input ports for cameras, 16 in total.
④ AUDIO IN
RCA input port for audio signal.
⑤ AUDIO OUT
RCA output for audio signal.
⑥ NTSC／PAL Switch
Switch between NTSC and PAL format.
⑦ LAN
Network port.
⑧ VGA
VGA port.
