PANEL DESCRIPTION
1
e
r
t
yuiuy
q
w
e
r
t
w

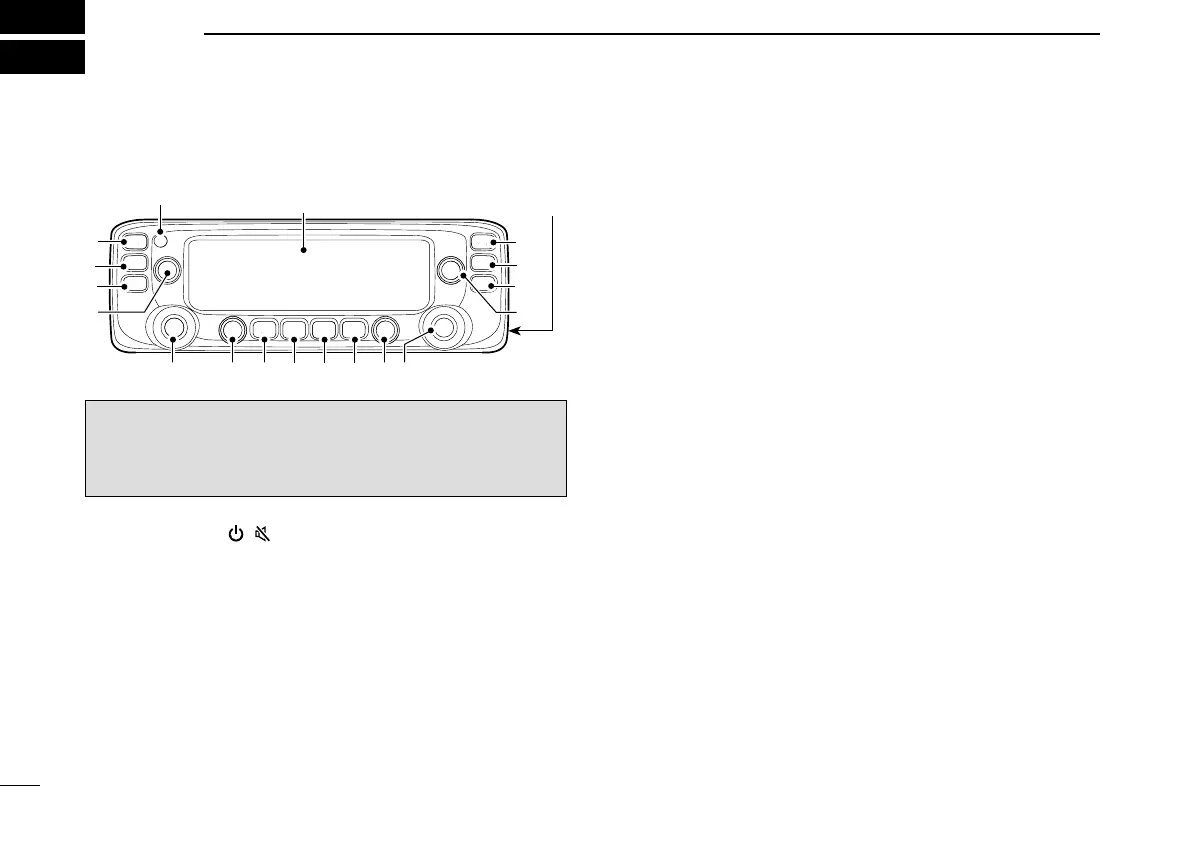

■ Controller — Front panel
q POWER KEY [ ]( )
Hold down for 1 second to turn power ON or OFF. ➥
Push to mute the audio. (p. 27) ➥
wMAIN•BANDKEY[MAINBAND]
Push to select the MAIN band. (p. 23)
In the VFO mode
Hold down for 1 second to enter the Operating band select
mode. (p. 24)
In the Memory mode
Hold down for 1 second to enter the Memory bank select
mode. (p. 33)
eVFO/MHzTUNING•SCANKEY[V/MHzSCAN]
Push to select the VFO mode. ➥
In the VFO mode, push to select 1 MHz tuning. (p. 24) ➥
Hold down for 1 second to display the scan type setting ➥
screen. (pp. 41, 43)
rMEMORY•CALLKEY[MRCALL]
In the VFO mode, push to select the Memory mode. ➥
(p. 23)
In the Memory mode, push to select the Weather chan- ➥
nel mode.* (p. 23)
*Weather channels are selectable in only the USA version.
Hold down for 1 second to select the Call channel ➥
mode. (p. 23)
t VOLUME CONTROL (p. 23)
y TUNING DIAL [DIAL]
In the VFO mode
Rotate to select the operating frequency. (pp. 24, 25)
In the Memory mode
Rotate to select a Memory channel. (p. 29)
While scanning
Rotate to change the scanning direction. (p. 37)
In the MENU mode
Rotate to select a desired option or value. (p. 11)
u SQUELCH CONTROL (p. 25)
Rotate to adjust the squelch level.
Display (p. 2)
Microphone
connector (pp. 5, 63)
For your reference:
The key-touch beep tones on the left band are different than
the tones on the right band. The different tones will let you
know which band you are operating on.
