PANEL DESCRIPTION
New2001 New2001
i MEMORY CHANNEL NUMBER (p. 29)
Displays the selected Memory channel, Memory Bank,
Call channel, or Menu item.
o PRIORITY ICON (p. 46)
Displayed when Priority Watch is turned ON.
!0 SKIP ICON (p. 42)
Appears when the displayed Memory channel is specified
as a skip channel.
!1 MODE ICON (p. 26)
Displays the operating mode.
!2 POWER ICON (p. 26)
Displays the output power level.
•“LOW”isdisplayedwhenyouselectlowpower.
•“MID”isdisplayedwhenyouselectmidpower.
•Noiconisdisplayedwhenyouselecthighpower.
!3 VOX ICON (p. 75)
Displayed when the transceiver is connected to the optional
VS-3
Bluetooth
®
h e a d s e t , and the VOX function is ON.
!4 MEMORY MODE ICON (p. 29)
Displayed while in the Memory mode.
!5 S/RF METER
Displays the relative signal strength of the receive signal. ➥
Displays the output power level of the transmit signal. ➥
(p. 26)
!6 BUSY ICON
Displayed while a signal is being received, or the ➥
squelch is open.
Blinks while the Monitor function is activated. (p. 27) ➥
The following key icons are displayed in the MENU mode
or Memory write screen, and you can push a key that is
located below the icon.
!7 CLEAR KEY [CLR]
In the MENU mode
Push to return to the previous screen. (p. 9)
While entering text
Push to delete the selected character or number. ➥
(p. 34)
Hold down for 1 second to delete the selected charac- ➥
ter or number, and all characters that are located to the
right of the cursor. (p. 54)

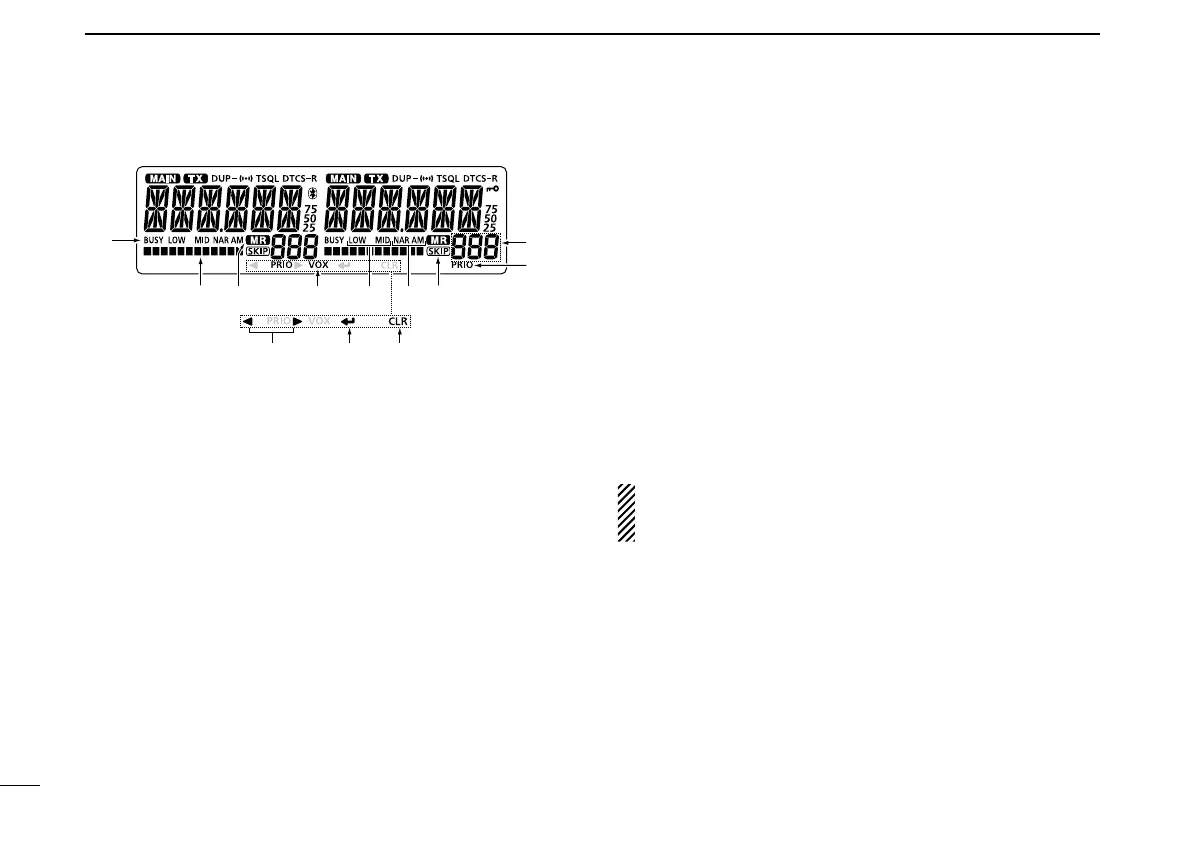

Controller — Display (Continued) ■
