PANEL DESCRIPTION
1-8
Previous view

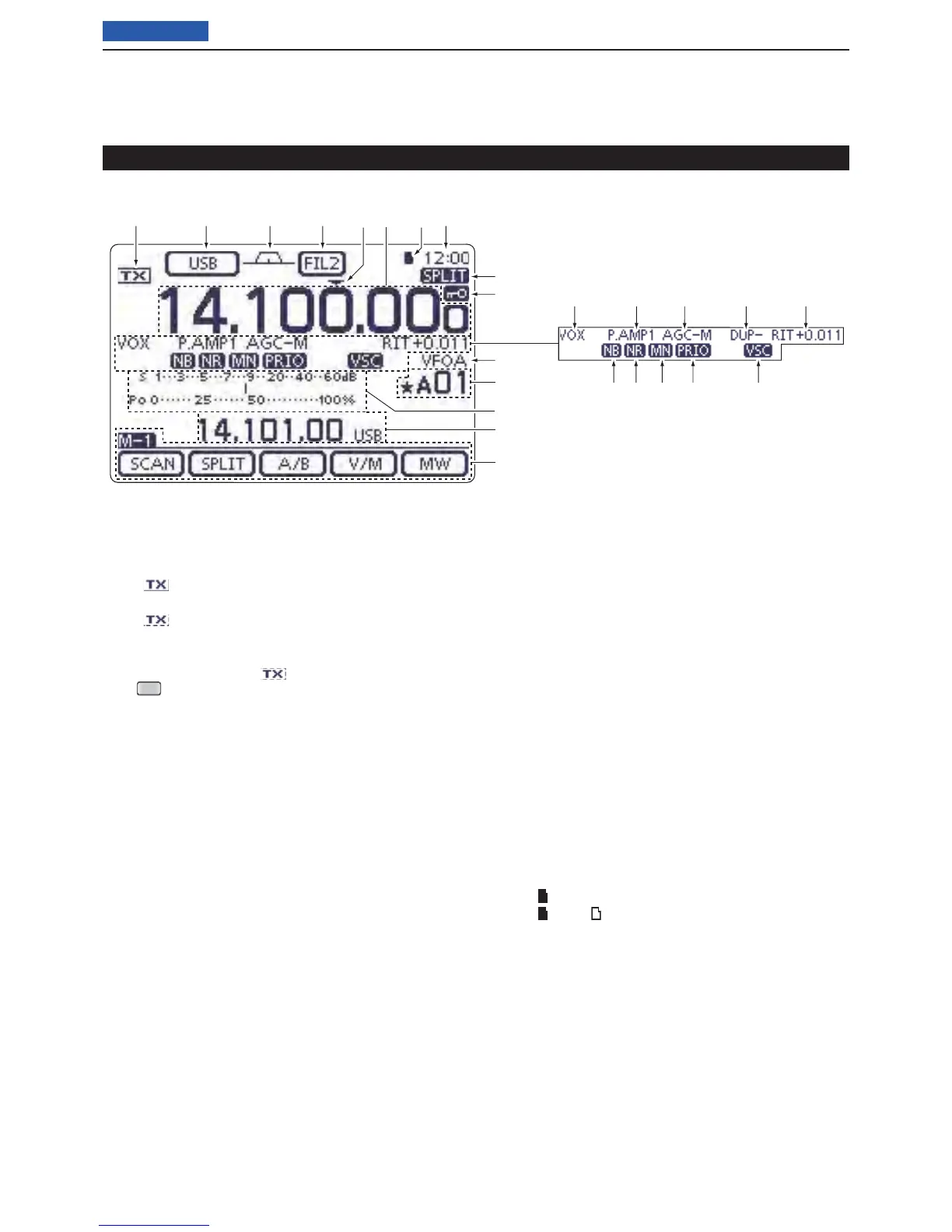

Front panel (Controller) (Continued)
q TX ICON
Indicates either the displayed frequency can be
transmitted, or not.
➥ “
” appears while the operating frequency is in
an amateur band.
➥ “
” appears while the operating frequency is
not in an amateur band. However, when the “Band
Edge Beep” item is set to “OFF” in the “Function”
Set mode (p. 85), “
” does not appear.
> Function > Band Edge Beep
“LMT” appears while the output power is de- ➥
creased due to the Power FET’s temperature is
high.
“HOT” appears while the transmission is inhibited ➥
due to the Power FET’s temperature is too high.
w MODE ICONS (p. 43)
Displays the selected operating mode. ➥
• “-D” appears when SSB data, AM data or FM data
mode is selected.
Touch to enter the Mode selection screen. ➥
• On the Mode selection screen, touch the block to se-
lect the operating mode.
e PASSBAND WIDTH ICON (p. 75, 77)
Graphically displays the passband width for twin
PBT operation and center frequency for IF shift op-
eration.
r IF FILTER ICON (p. 75, 77)
Shows the selected IF fi lter. ➥
Touch to select one of three IF fi lter settings. ➥
• The selected fi lter passband width and shifting value
are displayed for 2 seconds on the window.
➥ Touch for 1 second to display the “FILTER” screen
(Filter) to adjust the fi lter passband width.
➥
When the “FILTER” screen is displayed, touch for
1 second to return to the previous screen.
t QUICK TUNING ICON
Appears when the Quick tuning mode is selected.
• When “Z” is displayed, the frequency changes in pre-set
kHz or 1 MHz quick tuning steps. (p. 38)
• When “Z” is not displayed, the frequency changes in 10
Hz or 1 Hz steps. (pp. 37, 39)
y FREQUENCY READOUTS
Displays the operating frequency. ➥
Touch the MHz digits to enter the Band selection ➥
screen.
Touch the MHz digits for 1 second to turn the 1 ➥
MHz quick tuning mode ON or OFF.
Touch the kHz digits to turn the pre-set kHz quick ➥
tuning mode ON or OFF.
Touch the kHz digits for 1 second to enter the Tun- ➥
ing step selection screen.
Touch the Hz digits to for 1 second to toggle be- ➥
tween 10 Hz and 1 Hz steps.
u SD CARD ICON
➥ “
” appears when an SD card is inserted.
➥ “
” and “ ” alternately blinks while accessing the
SD card.
i CLOCK READOUT
Shows the current time.
• UTC time or local time can be selected.
o SPLIT ICON (p. 82)
Appears when the Split function is turned ON.
o LOCK INDICATOR (p. 37)
Appears when the Lock function is activated.
!0 LOCK ICON (p. 77)
Appears when the Lock function is turned ON.
qywertui
o
!0
@1
@2
@3
@4
@5
!1 !2 !3 !5!4
!6!7!8!9@0
Display D
