FUNCTIONS FOR TRANSMIT
6-18
Previous view
Transmitting DTMF code D
To transmit DTMF code using a DTMF send window,
program the desired code in advance.
Select the desired frequency band. (p. 3-5) q
On the Mode selection screen, select the FM or DV w
mode. (p.3-??)
• The DTMF encoder can be used in the FM or DV mode.
Push e
MENU
(C) one or more times to select the
“M-3” screen (M-3 menu).
• If your are operating in the DR mode, push
MENU
(C)
once or twice to select the “D-2” screen (D-2 menu).
Touch [DTMF]( r D) to display the DTMF mode.
• The “DTMF” screen is displayed.
Touch [SEND]( t D) to open the DTMF send window.
Touch the desired channel to transmit the DTMF y
code.
• The transceiver automatically transmits the selected
DTMF code.
• While transmitting, touch [SEND], [EDIT] or [SET](D)
or push
MENU
(C),
SET
(C) or
XFC
(R), cancels the
transmission.
• After transmitting, transceiver returns to the “DTMF”
screen.
DTMF memory encoder (Continued)
The L, R, C or D in the
instructions indicate the
part of the controller.
L: Left side
R: Right side
C: Center bottom
D: Display (Touch panel)
L
eft
R
ight
C
enter
D
isplay

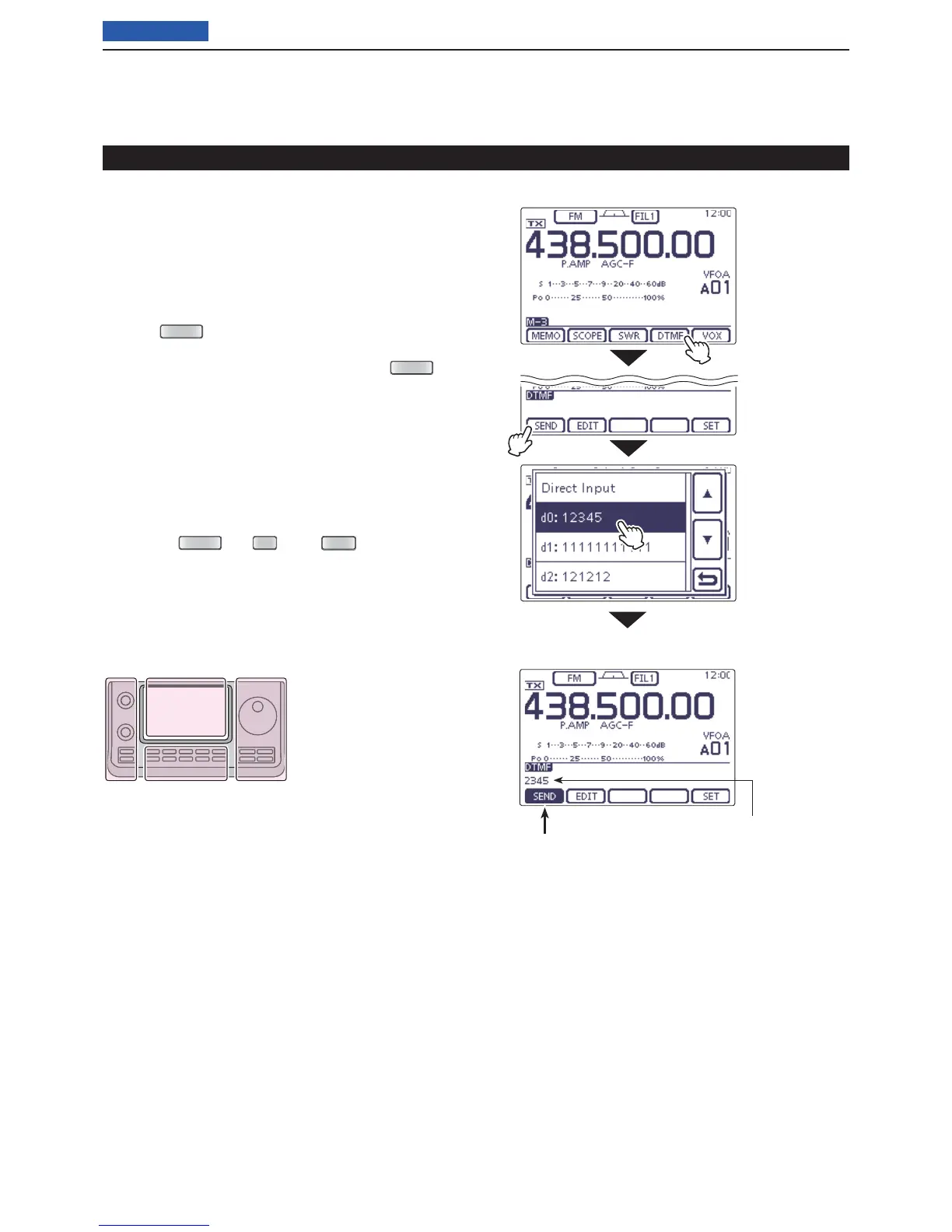

Touch [SEND]
Touch [DTMF]
The DTMF code scrolls to the
left edge, and disappears every
one digit when the each digit is
sent.
Highlighted
while transmitting
Touch the DTMF
channel
Example: d0
• While transmitting
