Icom IC-F43GS Instruction Manaul

40
13

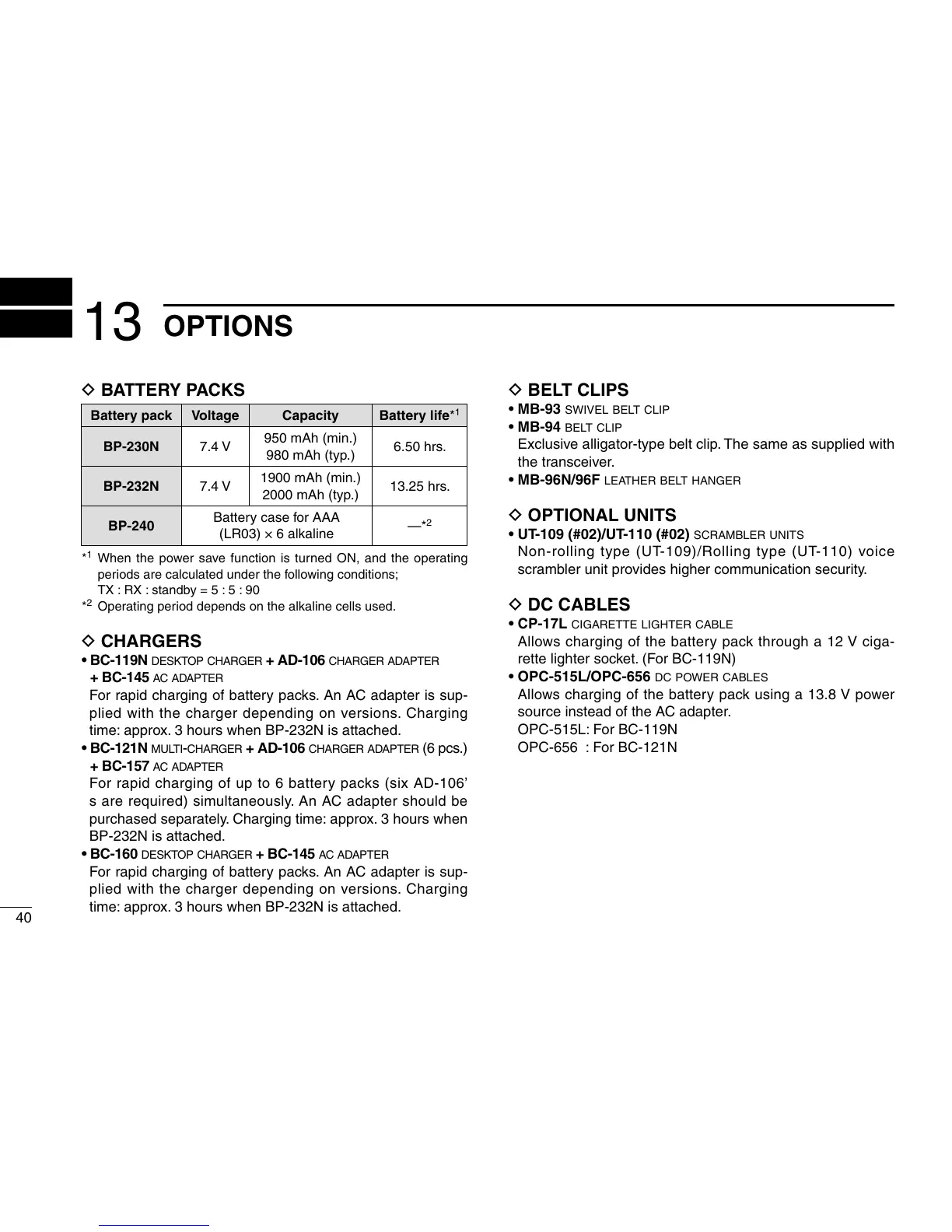

OPTIONS
D BATTERY PACKS
Battery pack Voltage Capacity Battery life*
1
BP-230N 7.4 V
950 mAh (min.)
980 mAh (typ.)
6.50 hrs.
BP-232N 7.4 V
1900 mAh (min.)
2000 mAh (typ.)
13.25 hrs.
BP-240
Battery case for AAA
(LR03) × 6 alkaline
—*
2
*
1
When the power save function is turned ON, and the operating
periods are calculated under the following conditions;
TX : RX : standby = 5 : 5 : 90
*
2
Operating period depends on the alkaline cells used.
D CHARGERS
• BC-119N DESKTOP CHARGER + AD-106 CHARGER ADAPTER
+ BC-145
AC ADAPTER
For rapid charging of battery packs. An AC adapter is sup-
plied with the charger depending on versions. Charging
time: approx. 3 hours when BP-232N is attached.
• BC-121N
MULTI-CHARGER + AD-106 CHARGER ADAPTER (6 pcs.)
+ BC-157 AC ADAPTER
For rapid charging of up to 6 battery packs (six AD-106’
s are required) simultaneously. An AC adapter should be
purchased separately. Charging time: approx. 3 hours when
BP-232N is attached.
• BC-160
DESKTOP CHARGER + BC-145 AC ADAPTER
For rapid charging of battery packs. An AC adapter is sup-
plied with the charger depending on versions. Charging
time: approx. 3 hours when BP-232N is attached.
D BELT CLIPS
• MB-93
SWIVEL BELT CLIP
• MB-94 BELT CLIP
Exclusive alligator-type belt clip. The same as supplied with
the transceiver.
• MB-96N/96F
LEATHER BELT HANGER
D OPTIONAL UNITS
• UT-109 (#02)/UT-110 (#02)
SCRAMBLER UNITS
Non-rolling type (UT-109)/Rolling type (UT-110) voice
scrambler unit provides higher communication security.
D DC CABLES
• CP-17L
CIGARETTE LIGHTER CABLE
Allows charging of the battery pack through a 12 V ciga-
rette lighter socket. (For BC-119N)
• OPC-515L/OPC-656
DC POWER CABLES
Allows charging of the battery pack using a 13.8 V power
source instead of the AC adapter.
OPC-515L: For BC-119N
OPC-656 : For BC-121N
