4
2

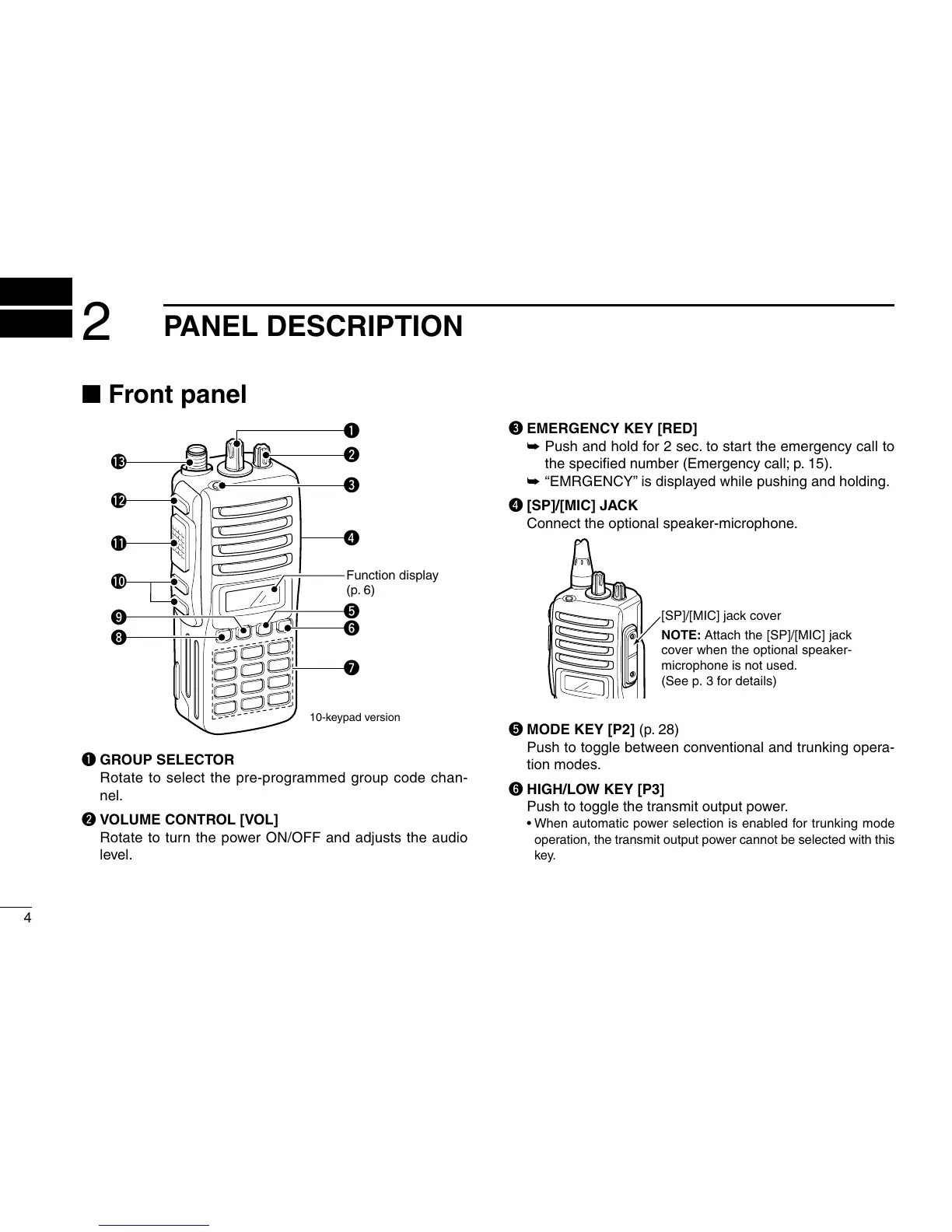

PANEL DESCRIPTION
■ Front panel
q
w
e
r
t
u
10-keypad version
y
i
o
!0
!1
!2
!3
Function display
(p. 6)
q GROUP SELECTOR
Rotate to select the pre-programmed group code chan-
nel.
w VOLUME CONTROL [VOL]
Rotate to turn the power ON/OFF and adjusts the audio
level.
e EMERGENCY KEY [RED]
➥ Push and hold for 2 sec. to start the emergency call to
the specified number (Emergency call; p. 15).
➥“EMRGENCY” is displayed while pushing and holding.
r [SP]/[MIC] JACK
Connect the optional speaker-microphone.
[SP]/[MIC] jack cover
NOTE: Attach the [SP]/[MIC] jack
cover when the optional speaker-
microphone is not used.
(See p. 3 for details)
t MODE KEY [P2] (p. 28)
Push to toggle between conventional and trunking opera
-
tion modes.
y HIGH/LOW KEY [P3]
Push to toggle the transmit output power.
• When automatic power selection is enabled for trunking mode
operation, the transmit output power cannot be selected with this
key.
