iCR 3600
TM
– Service Manual
1.
Attach the large wall mounting plate against wall at desired height. Allow the
contractor to determine the proper screws to fasten the large wall mounting plate to
the wall.
2.

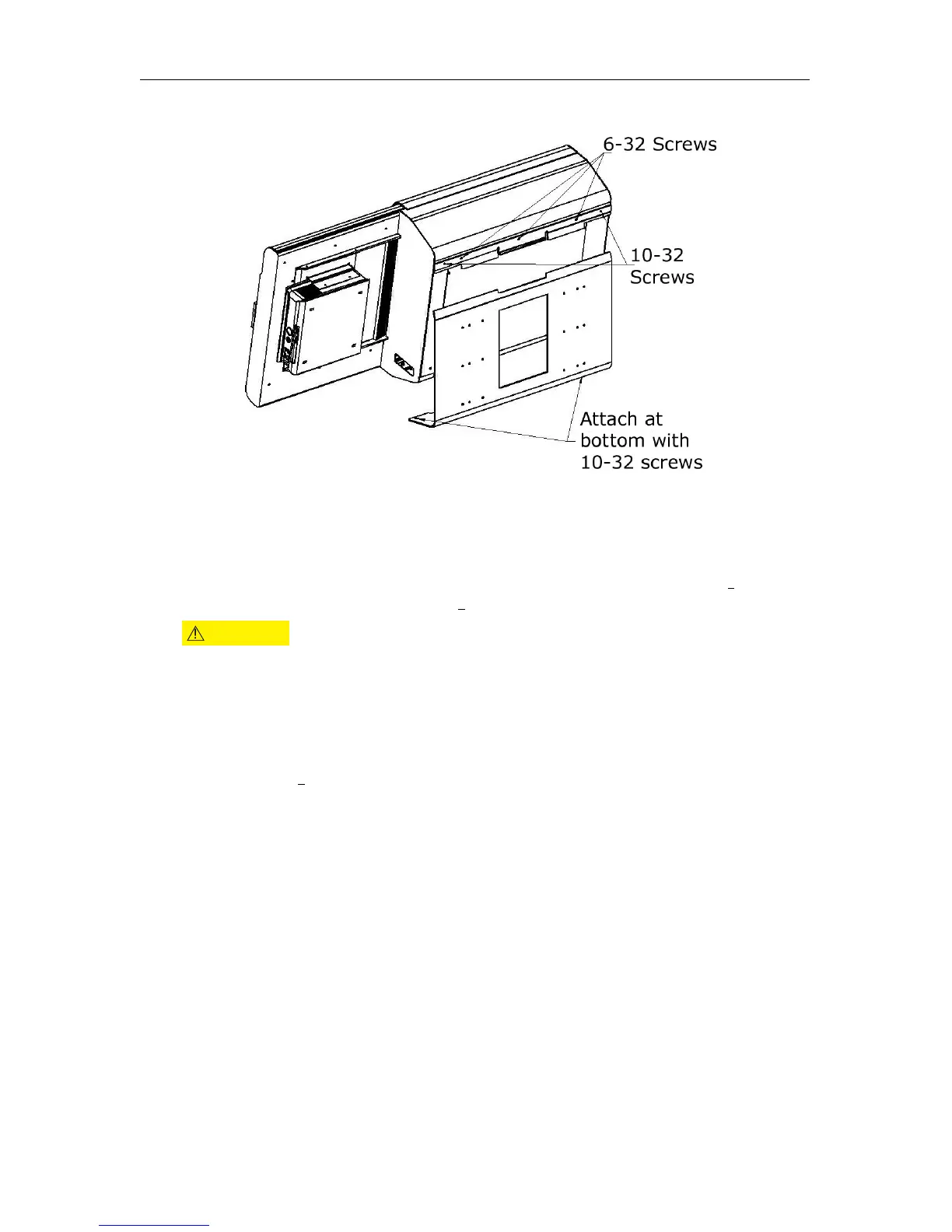

Attach the small wall mounting plate to the CR unit with three (3) 6-32 x
3
8
” flathead
undercut screws and two (2) 10-32 x
3
4
” truss head screws.
CAUTION
Always practice proper heavy lifting procedures. Improper lifting
may cause injury.
3.
With at least two people, lift the CR unit onto the large wall mounting plate so that
the bottom of the small wall mounting plate rests in the top notch of the large wall
mounting plate.
4.
Secure the bottom of the CR unit to the bottom of the large wall mounting plate with
two (2) 10-32 x
3
4
” truss head screws.
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
9 of 61 Document # 3600-02A Rev C
March 22, 2010
