iCR 3600
TM
– Service Manual

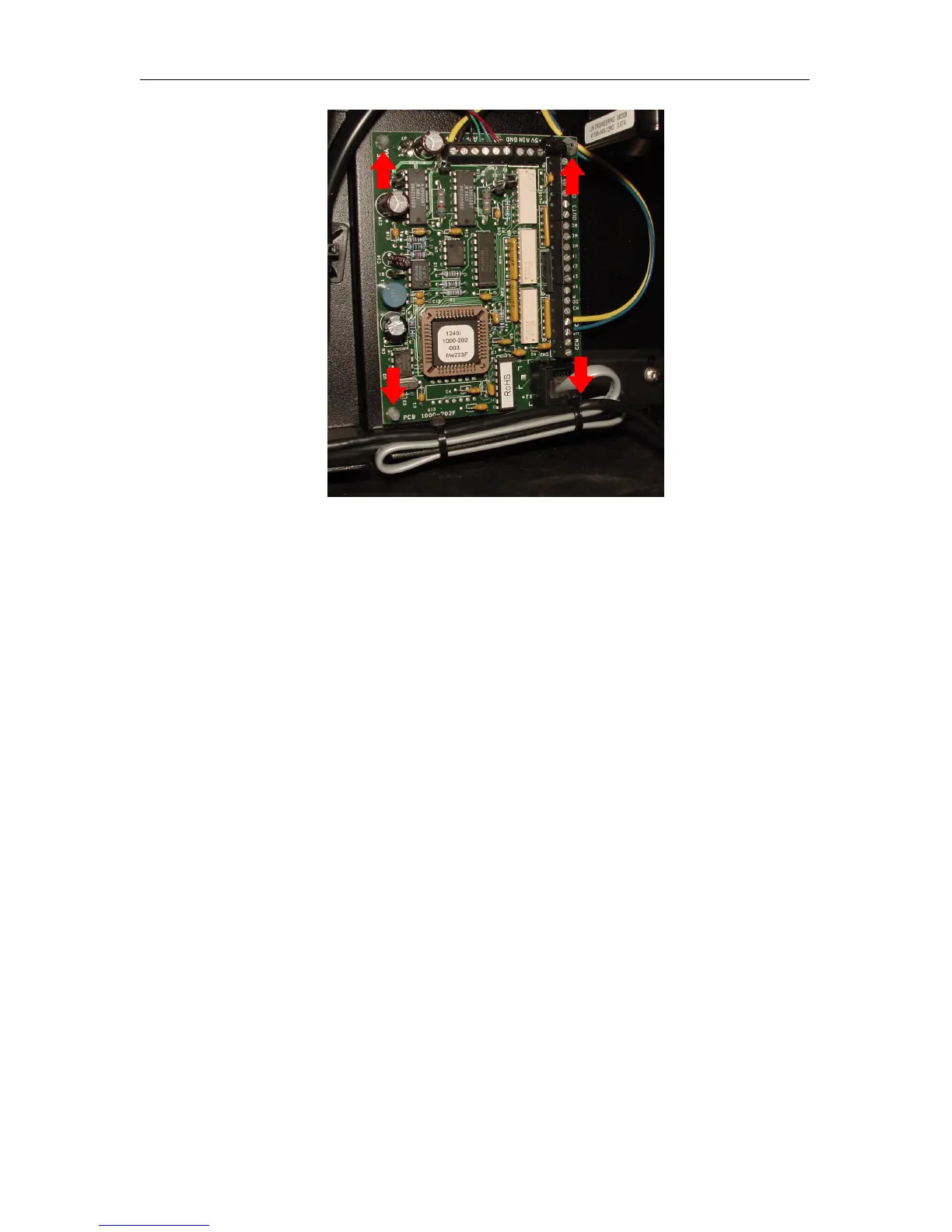

5. Remove the Motor Controller board from the CR unit.
6.
Replace the Motor Controller board, then reassemble the CR unit in the reverse order
from taking it apart.
8.7 Replacing the Main Power Supply
1. Remove the module from the case, as covered in Section 8.5 on page 48.
2. Unplug the power connectors from the board.
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
52 of 61 Document # 3600-02A Rev C
March 22, 2010
