iCR 3600
TM
– Service Manual

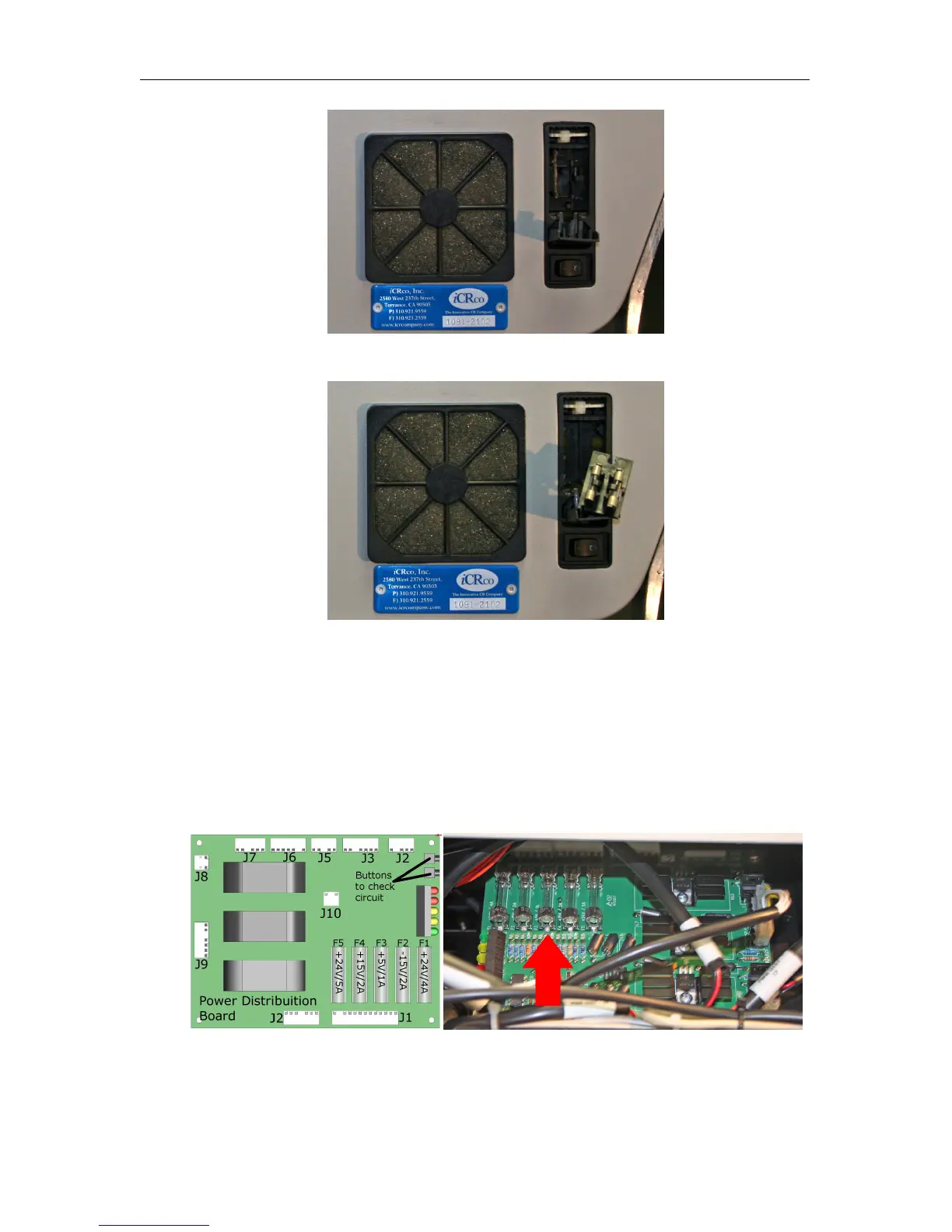

4. The fuses are located on the back of the fuse housing.
5. The fuses are 3A/250V.
8.12.2 Power Distribution Board Fuses
1. Make sure the CR unit is powered off. Remove the power cord from the unit.
2. Remove the front cover, as covered in Section 8.1.
3.
There are five fuses located on the power distribution board. Remove & check them:
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
58 of 61 Document # 3600-02A Rev C
March 22, 2010
