iCR 3600
TM
– Service Manual
8.13 Changing the Brushes
1. Make sure the CR unit is powered off. Remove the power cord from the unit.
2. Remove the front cover, as covered in Section 8.1.

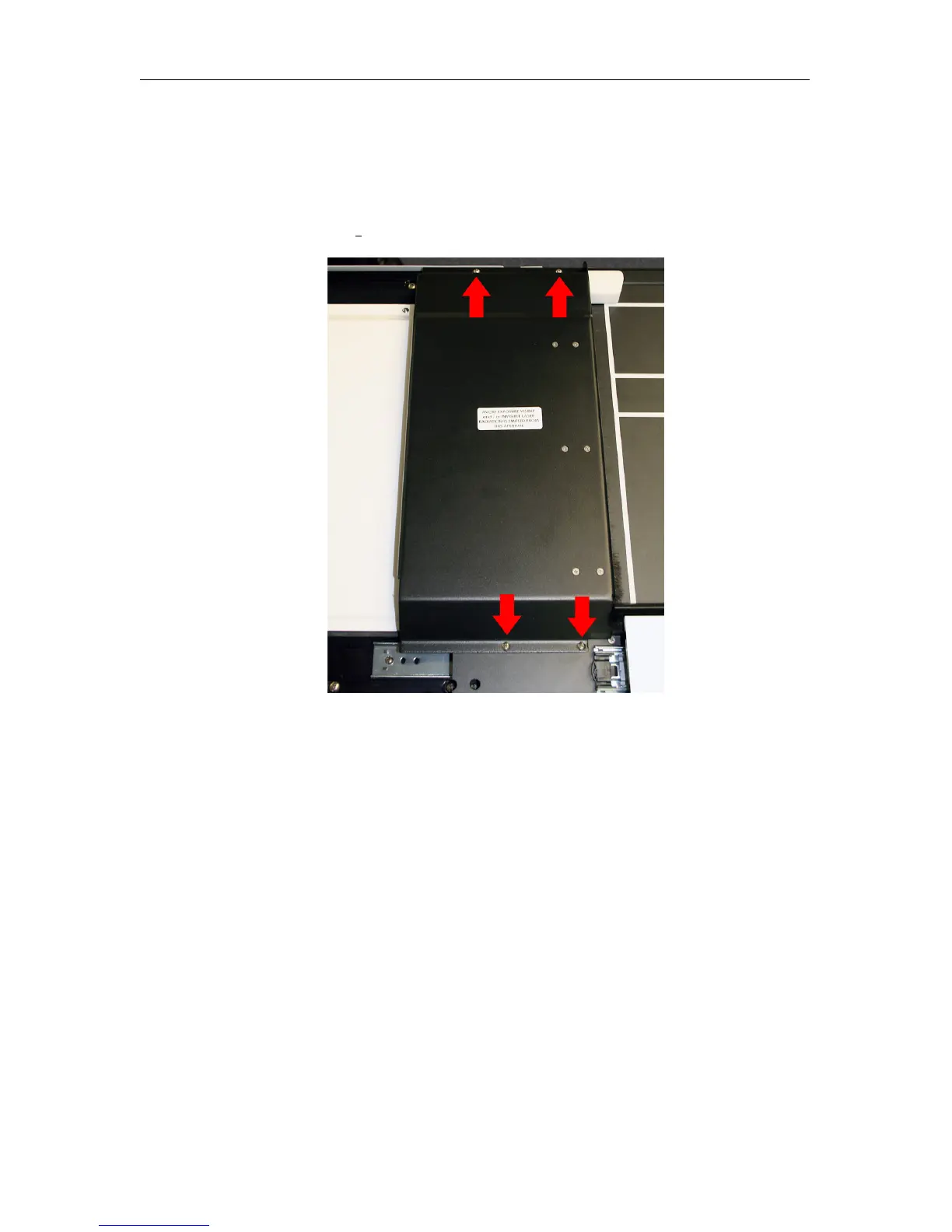

3. Remove two (2) 6-32 x
1
4
” & two (2) 6-32 x 1” truss head from the brush bar cover.
4. Apply masking tape over the scan slot to minimize dust entry.
5. The user now has access to the Caterpillar and Brush Bar Brushes.
8.13.1 Caterpillar Brush
The Caterpillar brush is located next to the eraser lights.
