iCR 3600
TM
– Service Manual
3.

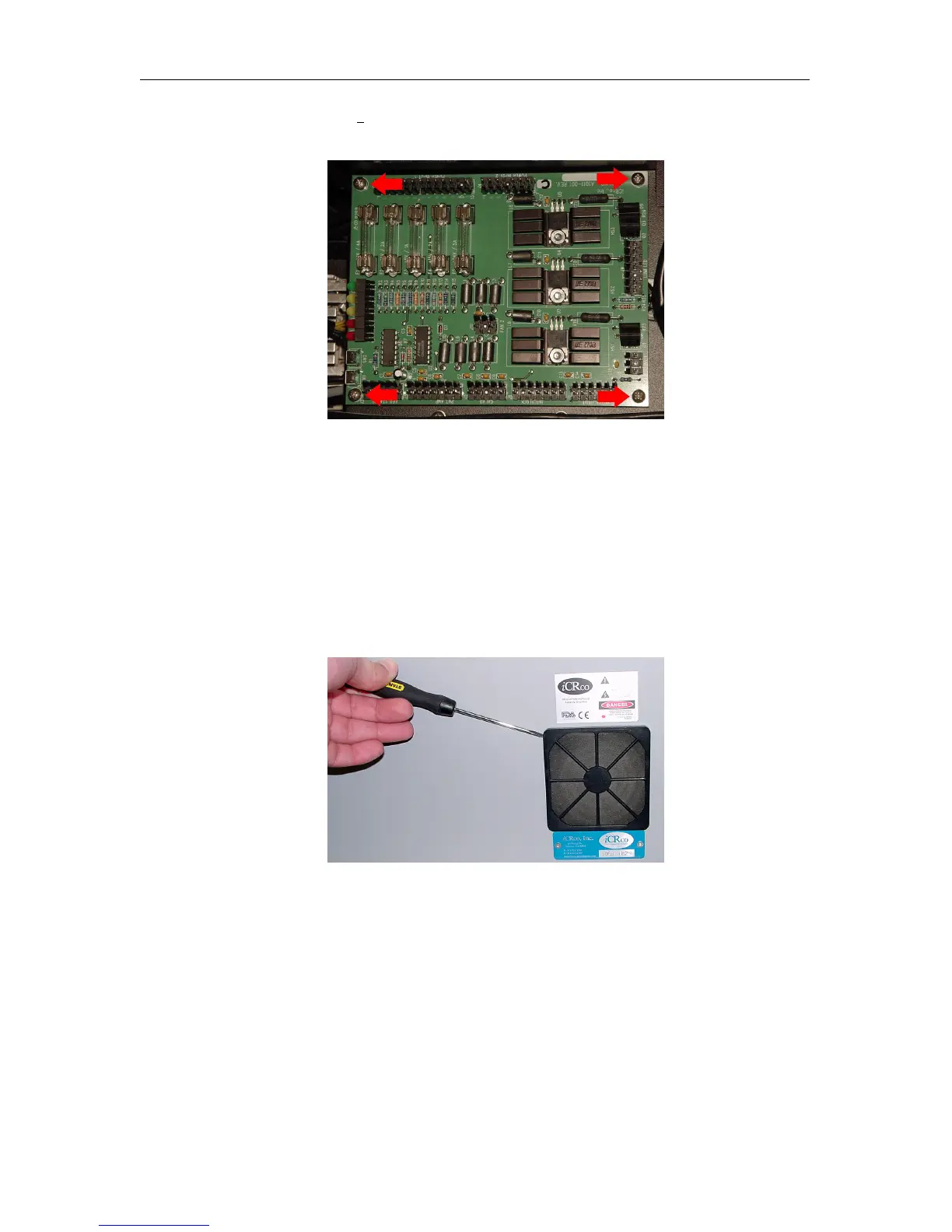

Remove four (4) 6-32 x
3
8
” screws, washer, and lock washer from the Power Distribu-
tion board.
4. Remove the Power Distribution board from the CR unit.
5.
Replace the Power Distribution board, then reassemble the CR unit in the reverse
order from taking it apart.
8.10 Cleaning the Fan Filter
1.
With a small, flathead screwdriver, gently pry the fan filter housing away from the
machine. It should pop off with minimal force.
2. Remove the fan filter.
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
55 of 61 Document # 3600-02A Rev C
March 22, 2010
