iCR 3600 - Service & Maintenance Procedures; Component Removal and Replacement

iCR 3600
TM
– Service Manual
s
8. Service & Maintenance Procedures
8.1 Removing Front Cover

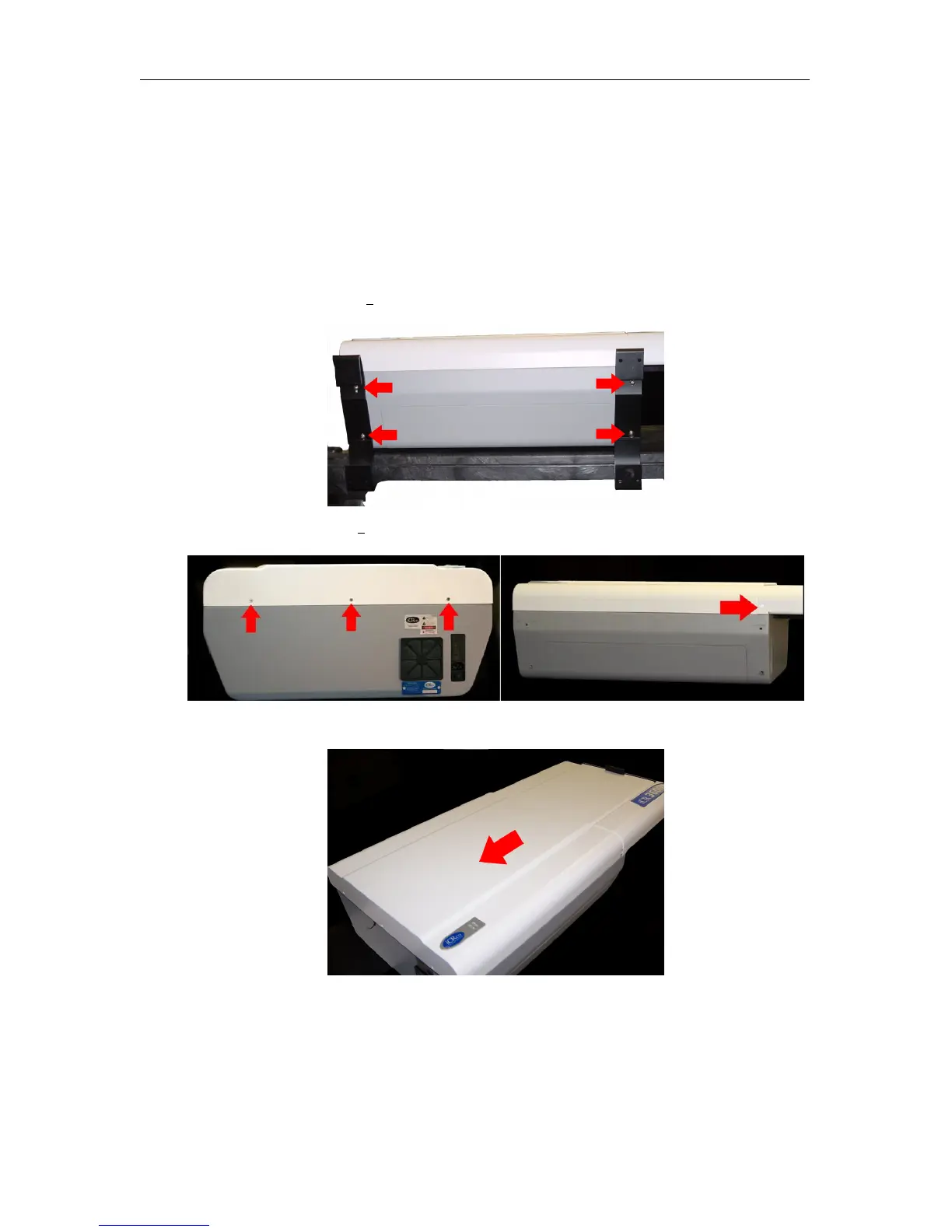

1. Make sure the CR unit is powered off. Remove the power cord from the unit.
2. Orient the CR unit on its back.
3. Remove four (4) 10-32 x
1
2
” truss head screws from the feet.
4. Remove four (4) 6-32 x
3
8
” flathead screws from the front cover.
5. Slide the top cover back, then lift the cover off.
6. Slide the door to the open position.
7. There is a plastic release latch on the underside of the door. Squeeze the latch towards
the feet of the unit to release the door from the door slide, then slide the rail back,
