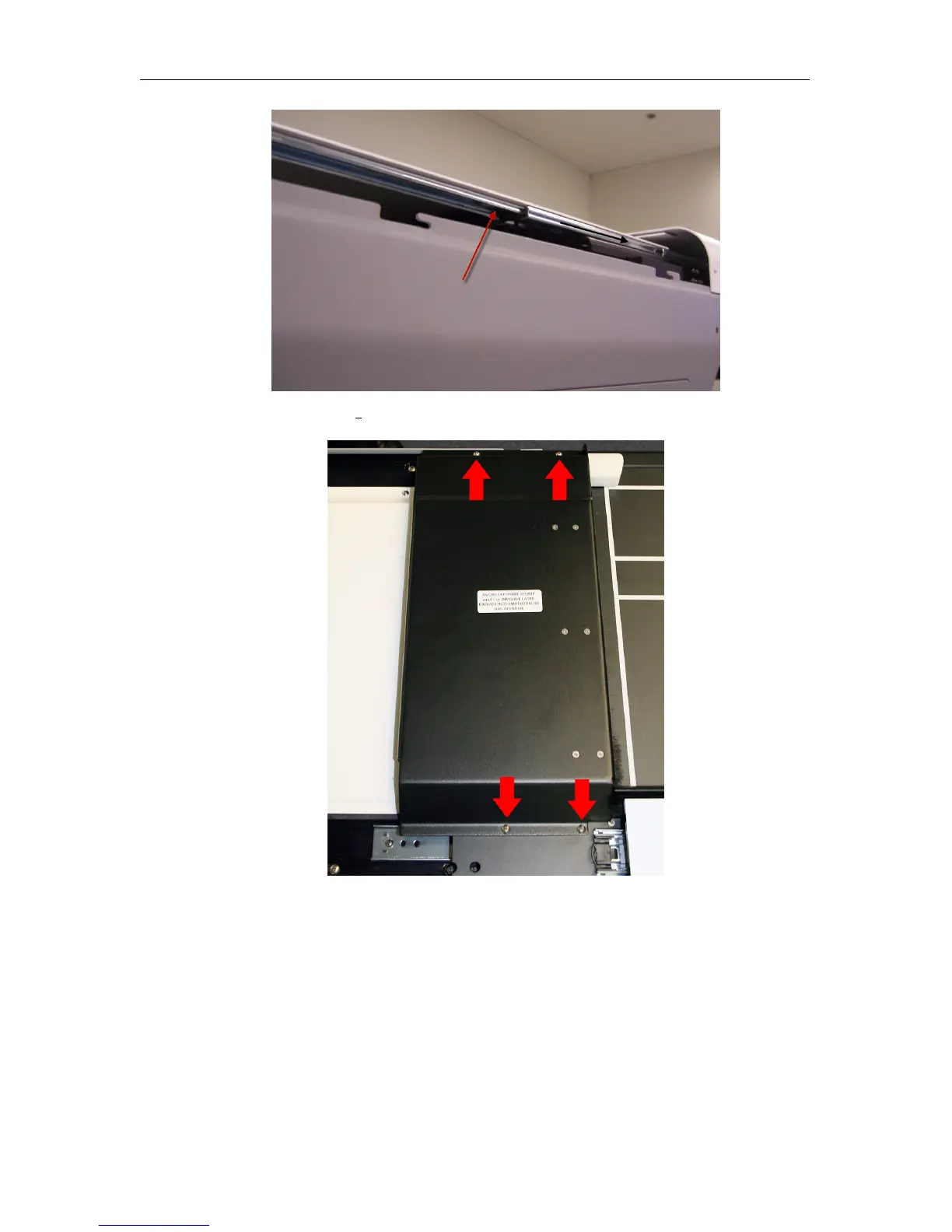

8. Remove two (2) 6-32 x
1
4
” & two (2) 6-32 x 1” truss head from the brush bar cover.
9. The scan slot is located under the brush bar cover.
