iCR 3600
TM
– Service Manual

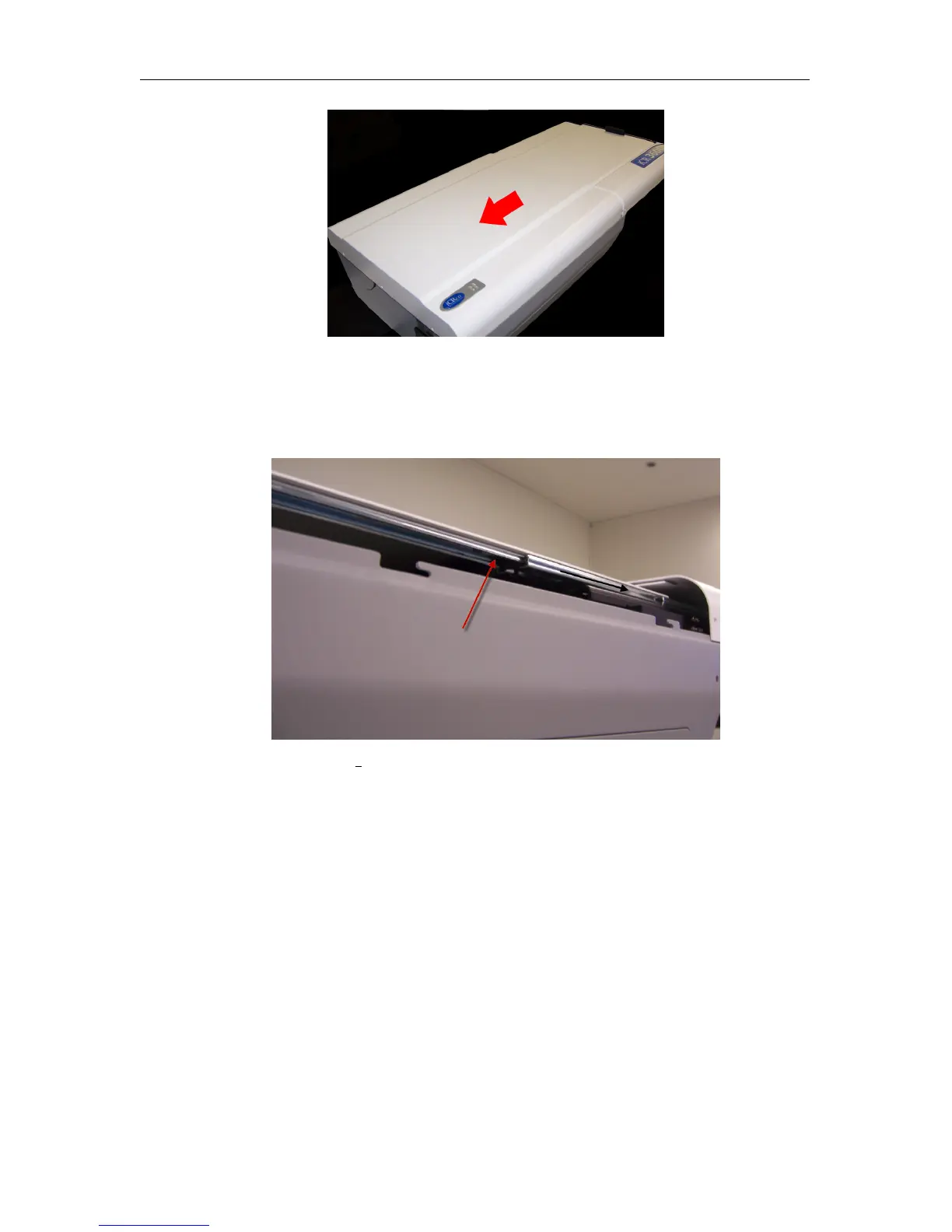

8. Slide the door to the open position.
9.
There is a plastic release latch on the underside of the door. Squeeze the latch towards
the feet of the unit to release the door from the door slide, then slide the rail back,
removing it from the door.
10. Remove two (2) 6-32 x
1
4
” & two (2) 6-32 x 1” truss head from the brush bar cover.
c
2007-2009
Confidential and Proprietary
Property of iCRco, Inc.
49 of 61 Document # 3600-02A Rev C
March 22, 2010
