iCR 3600 - Page 76

iCR 3600
TM
– Service Manual

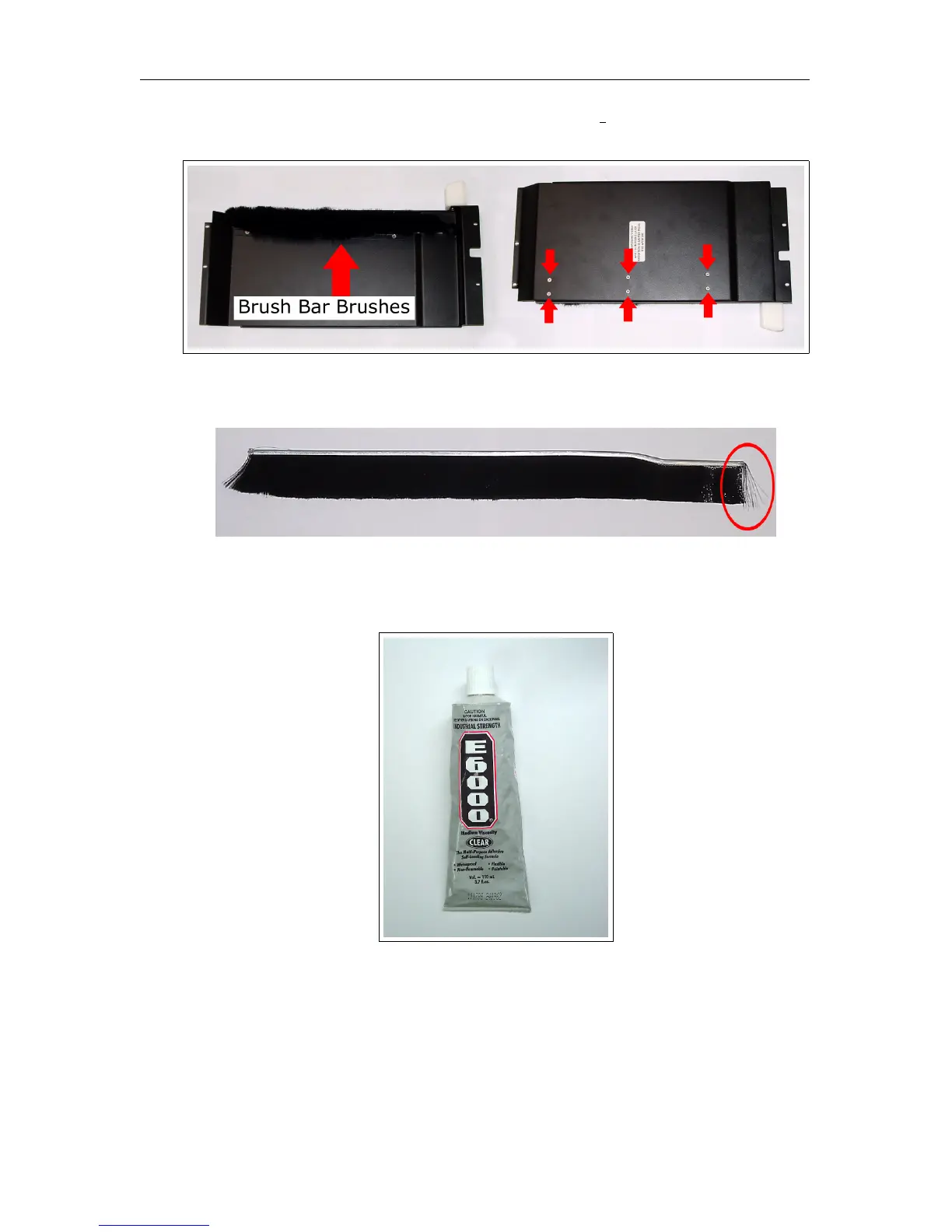

1. To remove the Brush Bar Brushes, remove six (6) 6-32 x
1
4
” flathead undercut screws
from the Brush Bar.
2. Slide the old brush out of its holder.
3. Trim any stray brush hairs from the new brush using a razor blade.
4. Slide the new brush into the holder.
5. Apply a dab of E-6000/Goop/UHU or equivalent clear gel glue (non-silicone) adhe-
sive to the non-bent side of the brush.
6. Screw the brush holder back into the Brush Bar.
