ICT PRT-CTRL-DIN-IP - Page 59

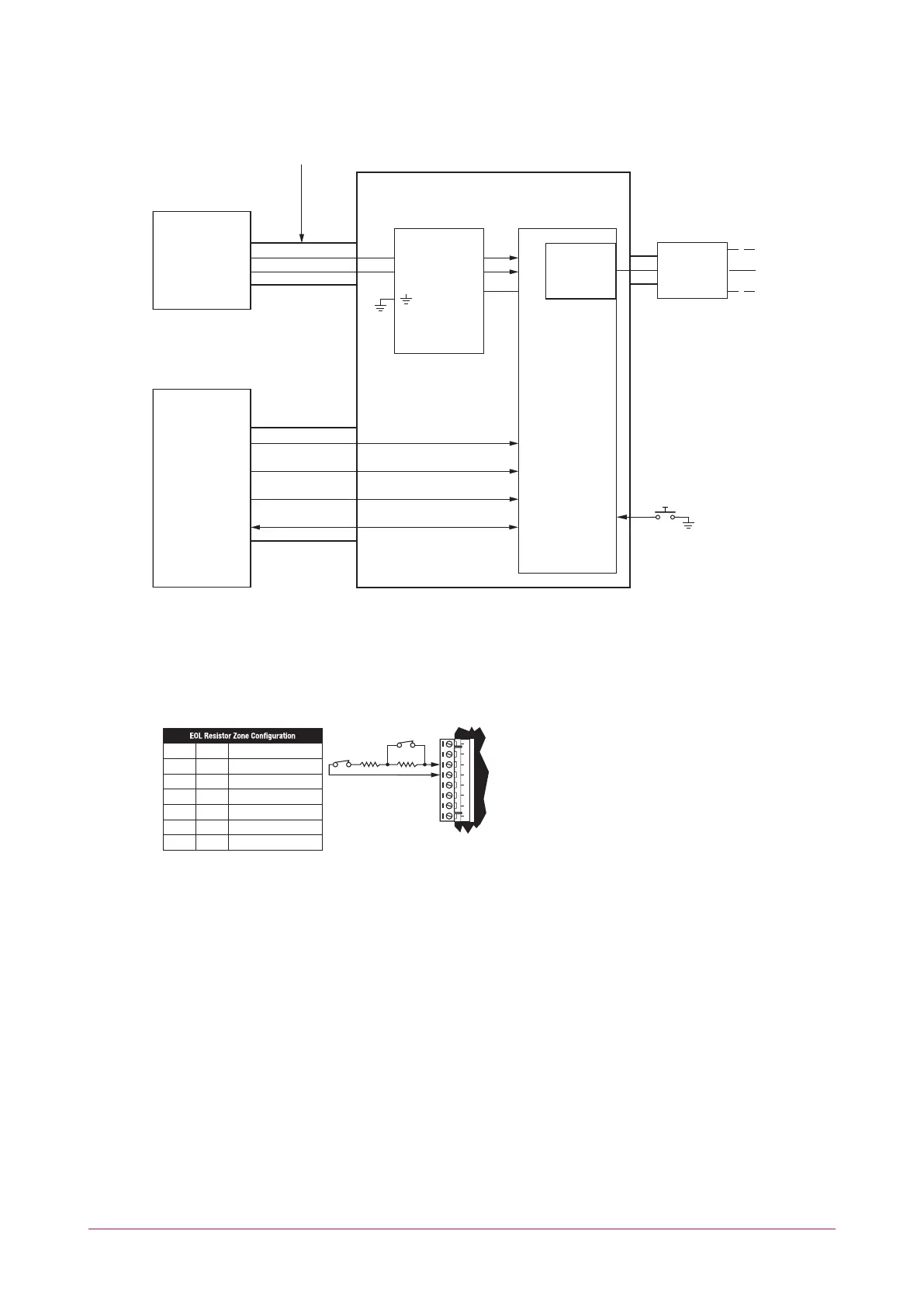

ETHERNET
ENCLOSURE
FIRE
SUPERVISORY
TROUBLE
FIRE ALARM PANEL
Z1
Z2
Z3
CONTROLLER
COM STATUS / FB
MAINS SUPPLY
(120V AC)
AC
AC
CAN/ULC-S559
CONTROLLER
ACTIVE COMMUNICATION
INTERNET
TELECOM
EQUIPMENT
24h Standby / Backup
Required for Telecom
Equipment
Note: All cables shall be protected within metal conduits.
Metal Conduit
* EOL resistor must be installed at the Fire Alarm Control Panel Output.
Typical Zone Circuits
Value 1 Value 2 Monitored Status
1K 1K Open, Close, Tamper, Short
6K8 2K2 Open, Close, Tamper, Short
10K 10K Open, Close, Tamper, Short
2K2 2K2 Open, Close, Tamper, Short
4K7 2K2 Open, Close, Tamper, Short
4K7 4K7 Open, Close, Tamper, Short
+AUX- Z1 COM COMZ2 Z3 Z4
N.C
Tamper
N.C Zone Contact
Value 2 Value 1
+
-
+
-
ULC certified 12V DC Power Supply
12V DC
485 485
+ -
C NC NCC
12VDC
AC
FAIL
BATT
FAIL
* Fire zones shall be separated from burglar zones through area partitioning.
* Fire zones Z1-Z3 shall be used exclusively for fire monitoring and cannot be programmed to activate the bell output
* Fire Zone Z4 N.O Push Button to be used as monitoring reset switch.
* The AC FAIL output on the Power Supply MUSTbe programmed to follow the AC Trouble Input as follows:
AC FAIL = OPEN on fail
N.O Zone Contact
RESET Push Button
Z4
Programmable
Output
PRT-CTRL-DIN | Protege GX DIN Rail Integrated System Controller | Installation Manual 59
