IDEAL INDUSTRIES, Inc. 2-12
Cable ID Prefix
The cable ID Prefix function is used to add a name to the cable ID
for stored tests. There are several preset names in the cable ID
Prefix which are accessed through the pull-down list in the Autotest
tab. However, there are many instances when an installation may
require the use of a name that is not in the preset list. For example,
when installing cable in a home the list can be updated to include
the names: “DEN, THEATRE and KITCHEN”.
The Cable ID Prefix screen allows names to be added or removed
from the list to suit each situation. To add a name to the list:
? Move the cursor to the “Add Cable ID Prefix” line and press
Enter. Type in the desired name and press Enter again.
? Press F1 (Add) to add the new name to the list.
? Press F2 (Save) to confirm the addition of the new name.
The new Cable ID prefix will now appear in the Autotest tab and
can be used on any future test.
Names can also be deleted from the Cable ID Prefix list by
highlighting the name and pressing the F4 (Delete) key.

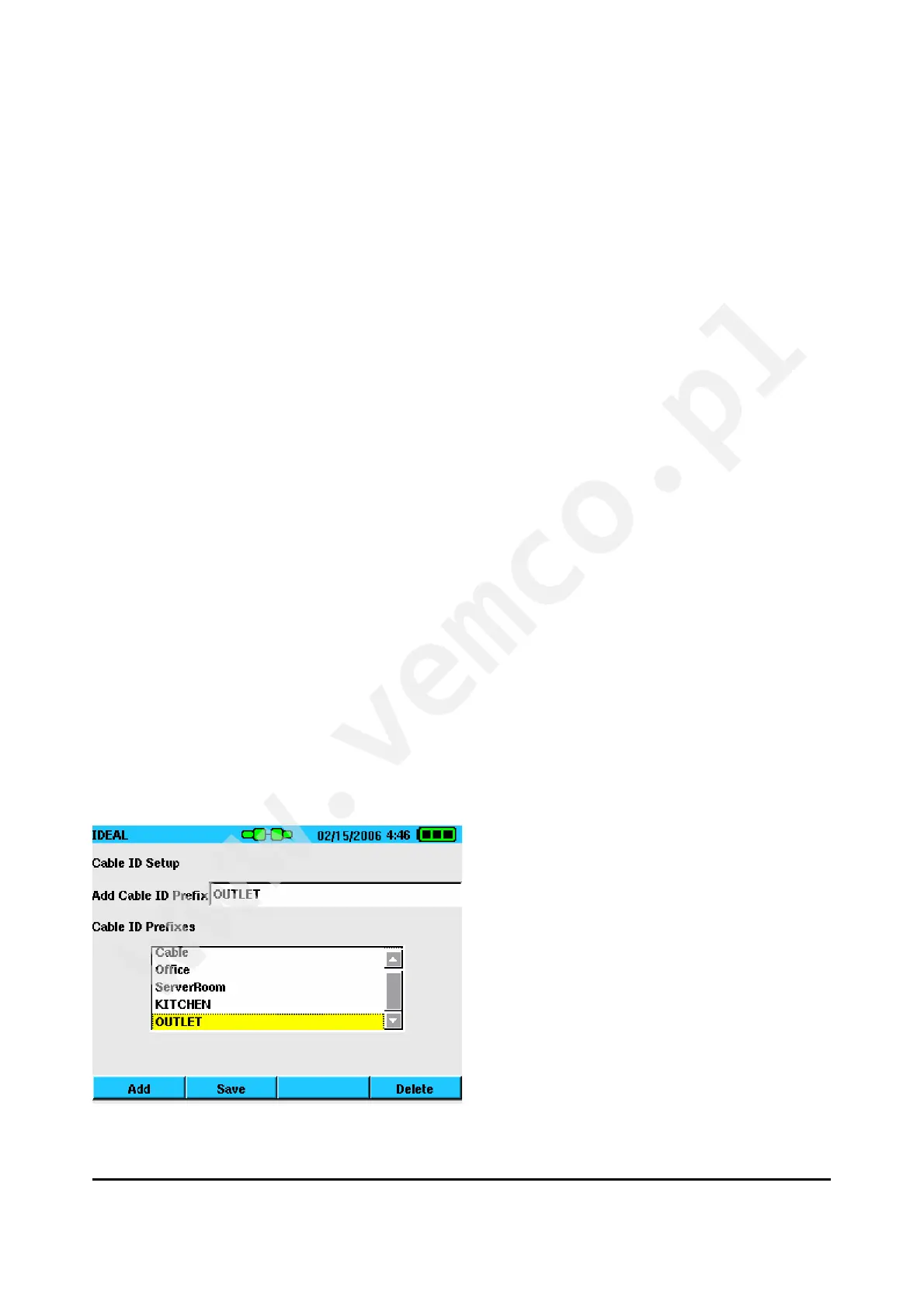

Figure 2-16 Cable ID Prefix Setup
