ifm System Manual ecomatmobile BasicDisplay (CR0451) V01
CAN in the PDM360 Physical connection of CAN
9.2.3 Bus cable length
1180
The length of the bus cable depends on:
 type of the bus cable (cable, connector),
 cable resistance,
 required transmission rate (baud rate),
 length of the spurs.
To simplify matters, the following dependence between bus length and baud rate can be assumed:
10050 1000 10000
5
10
20
50
100
200
500
1000
Bus-Länge
Bus length
[m]
Baudrate
Baud rate
[kBit/s]

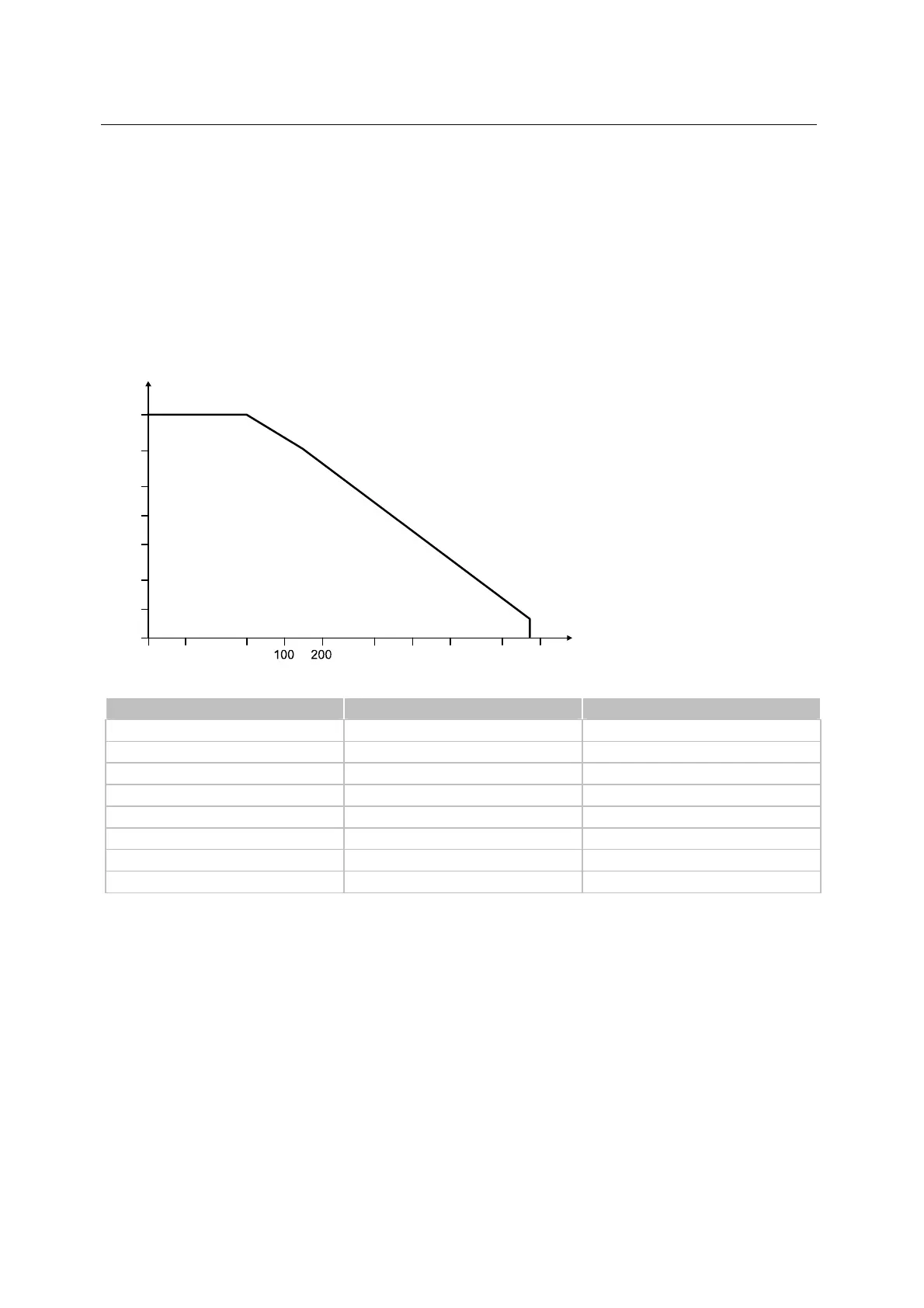

Figure: bus cable length
Baud rate [kBit/s] Bus length [m] Bit length nominal [µs]
1 000 30 1
800 50 1.25
500 100 2
250 250 4
125 500 8
62.5 1 000 20
20 2 500 50
10 5 000 100
Table: Dependencies bus length / baud rate / bit time
