10.6.1 OutputGroup
23326
Function block type:
Function block (FB)
Library:
ifmIOutGroup.library

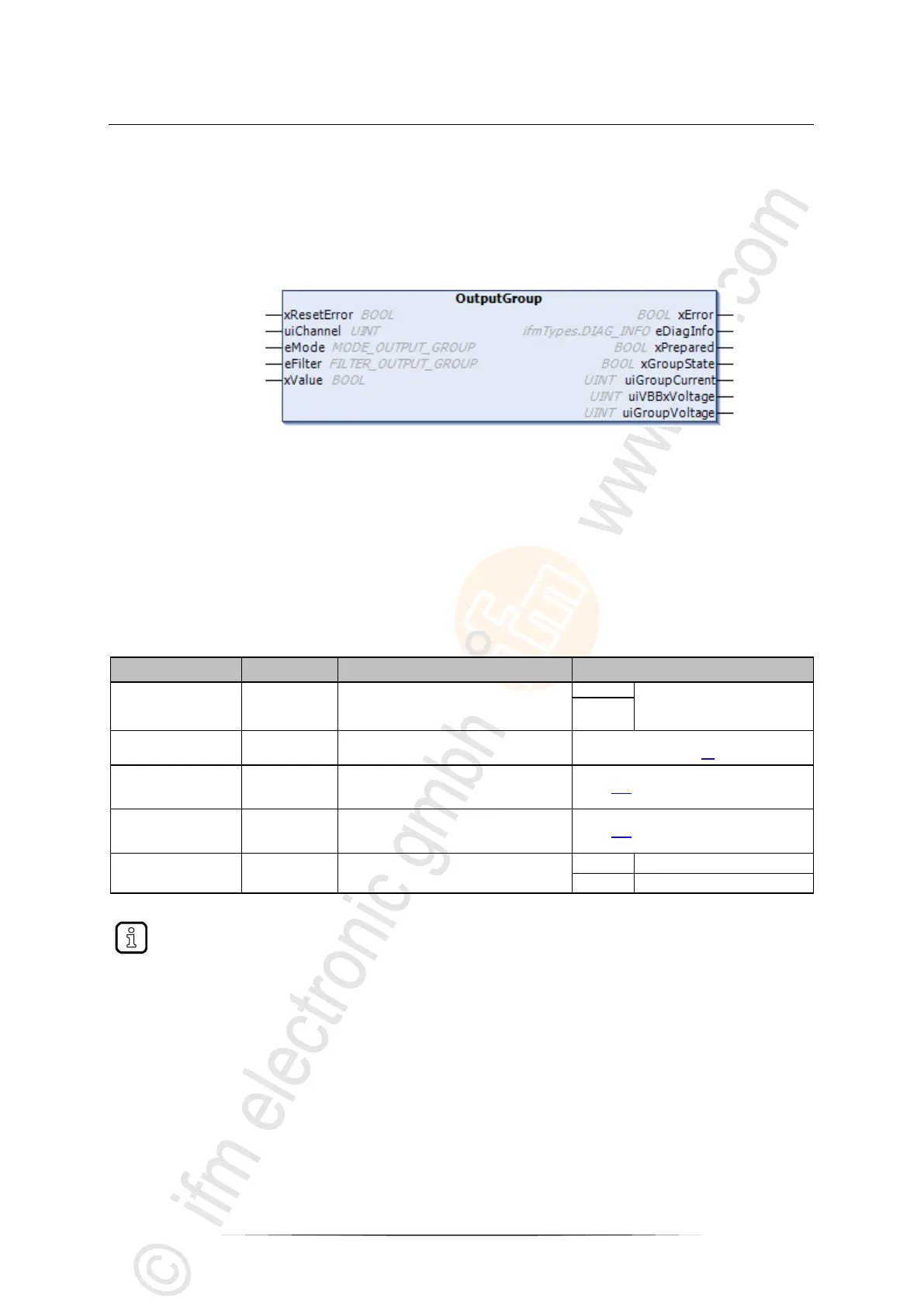

Symbol in CODESYS:
>
Description
23327
The FB controls the activation status of an output group and provides diagnostic information about the
group and the connected outputs. Using the FB, an output group including the corresponding outputs
can be switched on or off.
>
Input parameters
23328
Parameter
Data type
Description
Possible values
xResetError
BOOL
Reset request for an occurring error
FALSE
When switching from FALSE
 TRUE: Reset request to the
lower level system
TRUE
uiChannel
UINT
Output channel group
→ Data sheet
→ Note on wiring (→ p. 29)
eMode
MODE_
OUTPUT_
GROUP
Operating type of the output channel
group
→ MODE_OUTPUT_GROUP (ENUM)
(→ p. 146)
eFilter
FILTER_
OUTPUT_
GROUP
Defines the limit frequency of the output
filter
→ FILTER_OUTPUT_GROUP (ENUM)
(→ p. 146)
xValue
BOOL
Activation requirement for the output
group
FALSE
Deactivate output group
TRUE
Activate output group
23337
The error of an output group will only be reset if all corresponding outputs are error-free.
