ifm Programming Manual ecomatController/60-1 (CR711S) Operating System V2.5.0.n 2017-12-19
System description Hardware description
>
Output type OUT PWM-n-B
23093
n = current rating
Example: n = 25  I
max
= 2.5 A
Binary output or
analogue output with pulse width modulation (PWM)

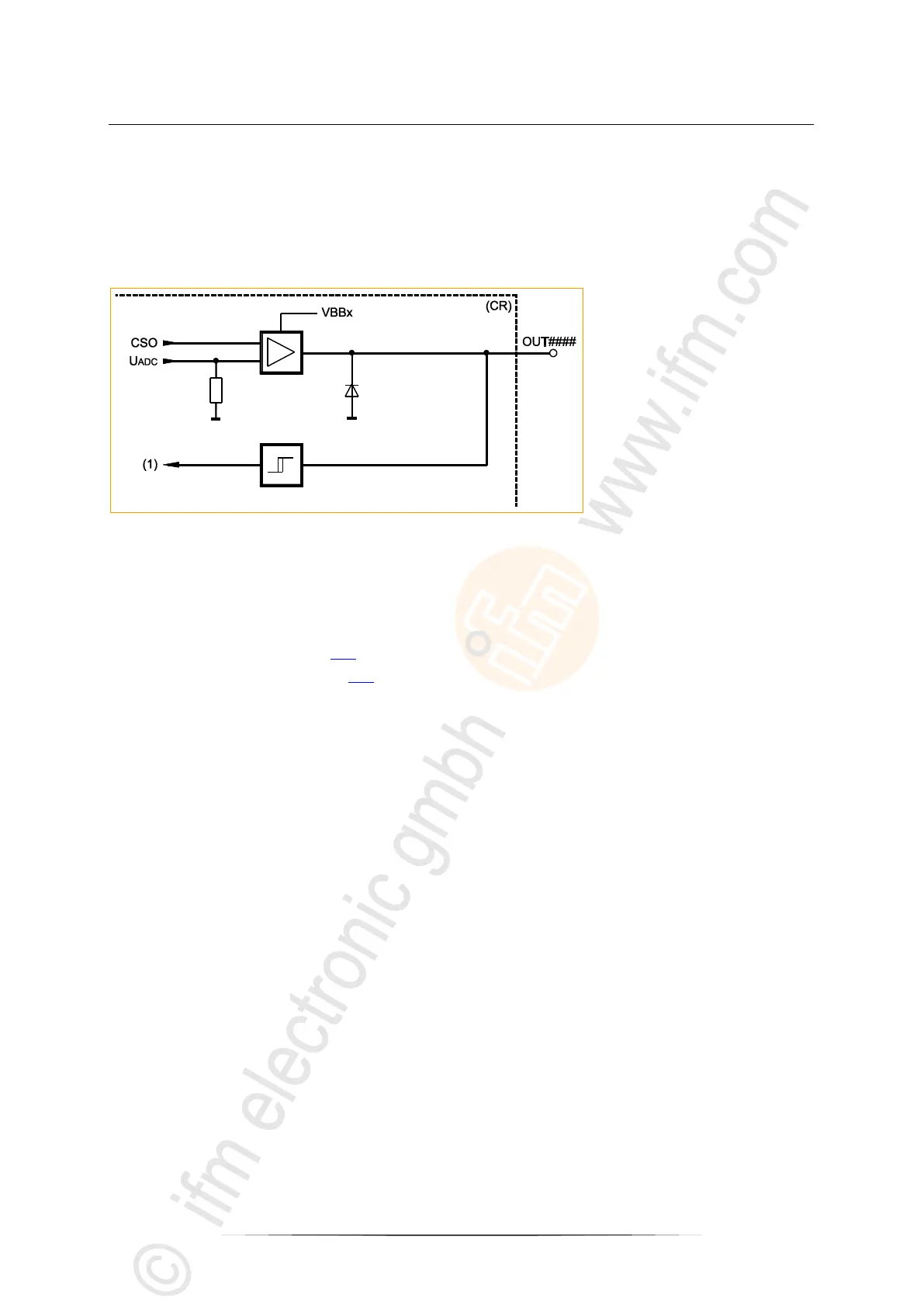

Block diagram
OUT PWM-n-B
OUT#### = connection of PWM output no. ####
(CR) = device
(1) = measured value (binary)
U
ADC
= current mirror
Configure input → Chapter System configuration
Possible operating modes:
 Binary output CSO (B
H
) with restricted current measurement
 analogue output CSO witch pulse width modulation (PWM
H
), without current measurement
Setting and measurement via:
 Function block Output (→ p. 128) for binary output
 Function block PWM1000 (→ p. 156) for PWM
