Input type IN DIGITAL-B
23089
Binary inputs

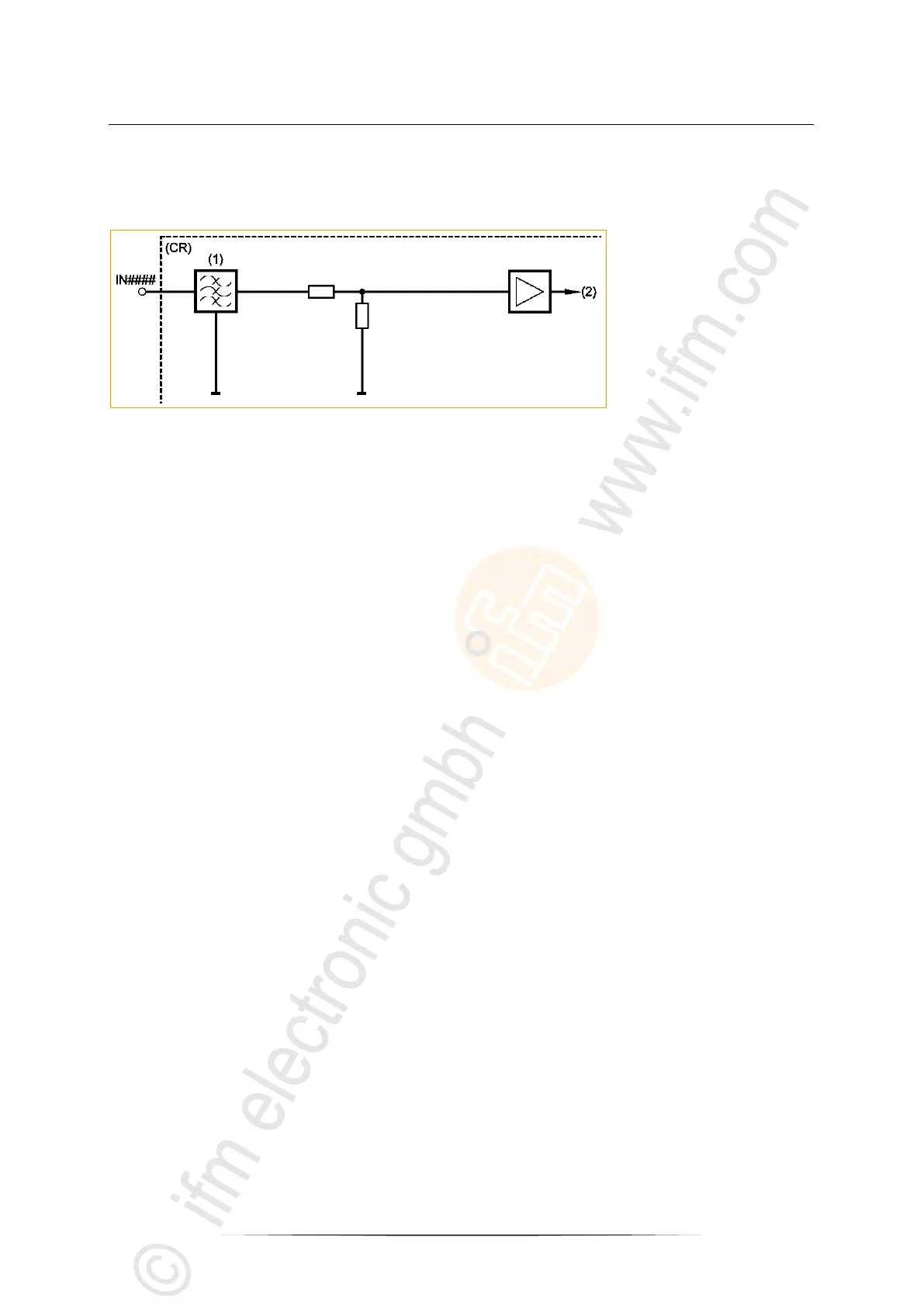

Block diagram
IN DIGITAL-B
IN#### = Connection of binary input no.
####
(CR) = device
(1) = input filter
(2) = measured value (analogue)
Input not configurable
Possible operating modes:
 Binary input CSI (B
L
) (R
E
= 3.3 k) or Namur
