19
UK

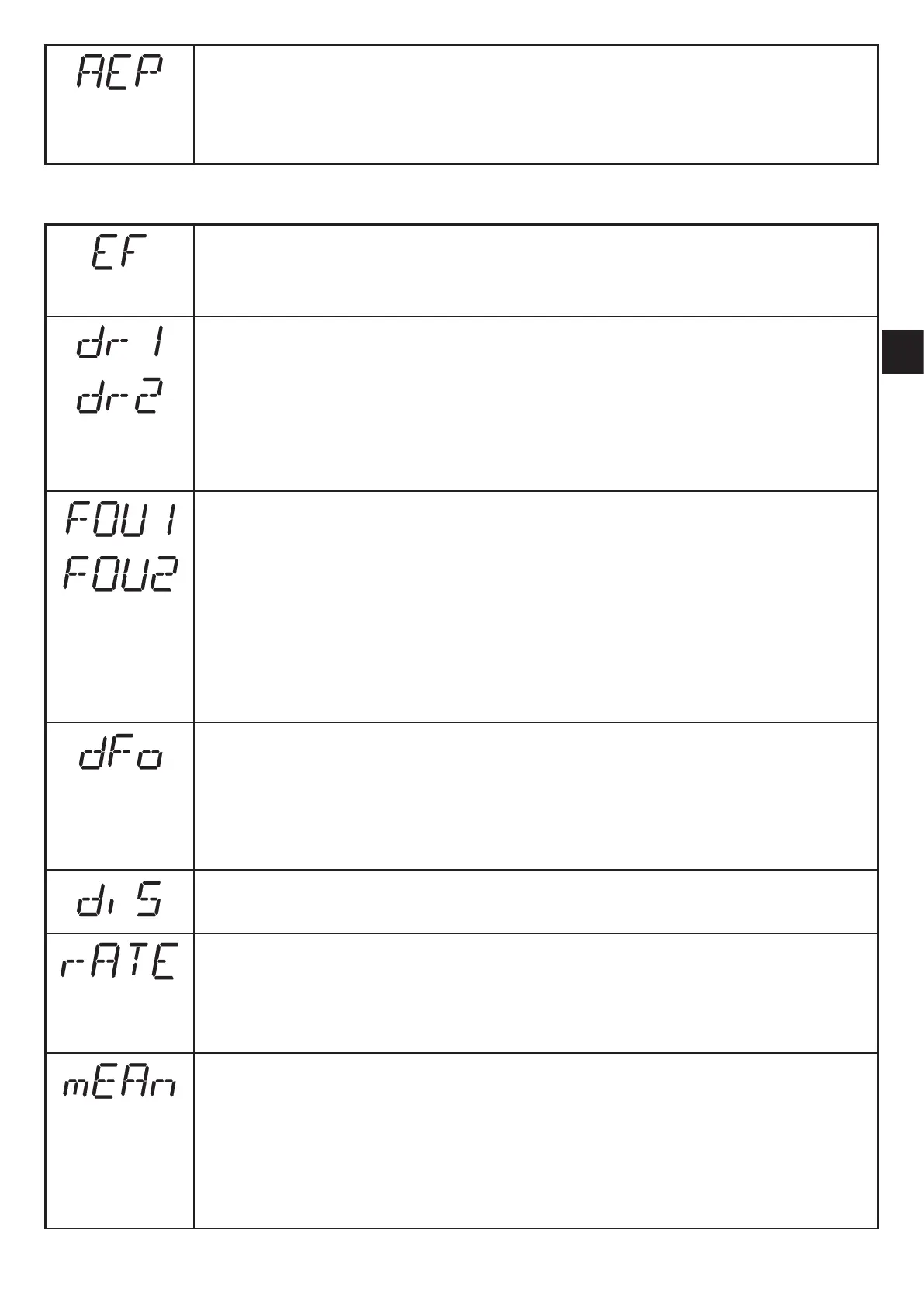

Analogue end point
Measured value at which 20 mA / 10 V are provided�
[AEP] is only active if [OU2] = [I] or [U]�
→ 9.3.11 Scaling of the measuring range (analogue output)
8.2.3 Extended functions
Extended functions
Press [SET] to open the submenu "Extended functions"
→ 10.4 Extended functions
Delay for the switching outputs
[drx] = switch-off delay�
The output changes its switching status only after the delay has elapsed�
If the switching condition is no longer met after the delay has elapsed, the
switching status of the output does not change�
→ 10.4.1 Setting of the delay time for switching outputs
Error reply for the switching outputs
With [FOUx] the behaviour of [OUx] can be defined in case of an internal
error�
[FOUx] = [ON] The switching output is switched or the analogue value
20 mA / 10 V is provided�
[FOUx] = [OFF] The switching output is not switched or the analogue
value 4 mA / 0 V is provided�
→ 10.4.2 Response of the outputs in case of a fault
Time delay after signal loss
A time delay of 0���5 s can be set for the switching behaviour of OUT1 and
OUT2� Error situations can be suppressed for a short period�
At [0] the delay time is not active�
→ 10.4.3 Setting of the delay time after signal loss
Display setting
2 settings can be selected: [ON], [OFF]� → 10.3.2 Setting the display
Setting of the sampling rate
The sampling rate indicates the maximum time after which a new result of
measurement is provided and the outputs are updated�
→ 10.4.4 Setting of the sampling rate
Setting of the mean filter
The mean filter suppresses level fluctuations during the set period� The
measurement results during this period are averaged and influence the
switching status accordingly� Then a new averaging starts� Setting range
is [OFF] or 1���60 s�
→ 10.4.6 Setting of the mean filter
