P15
Step 2: Visually inspect all wiring and components and Power up the SCRP

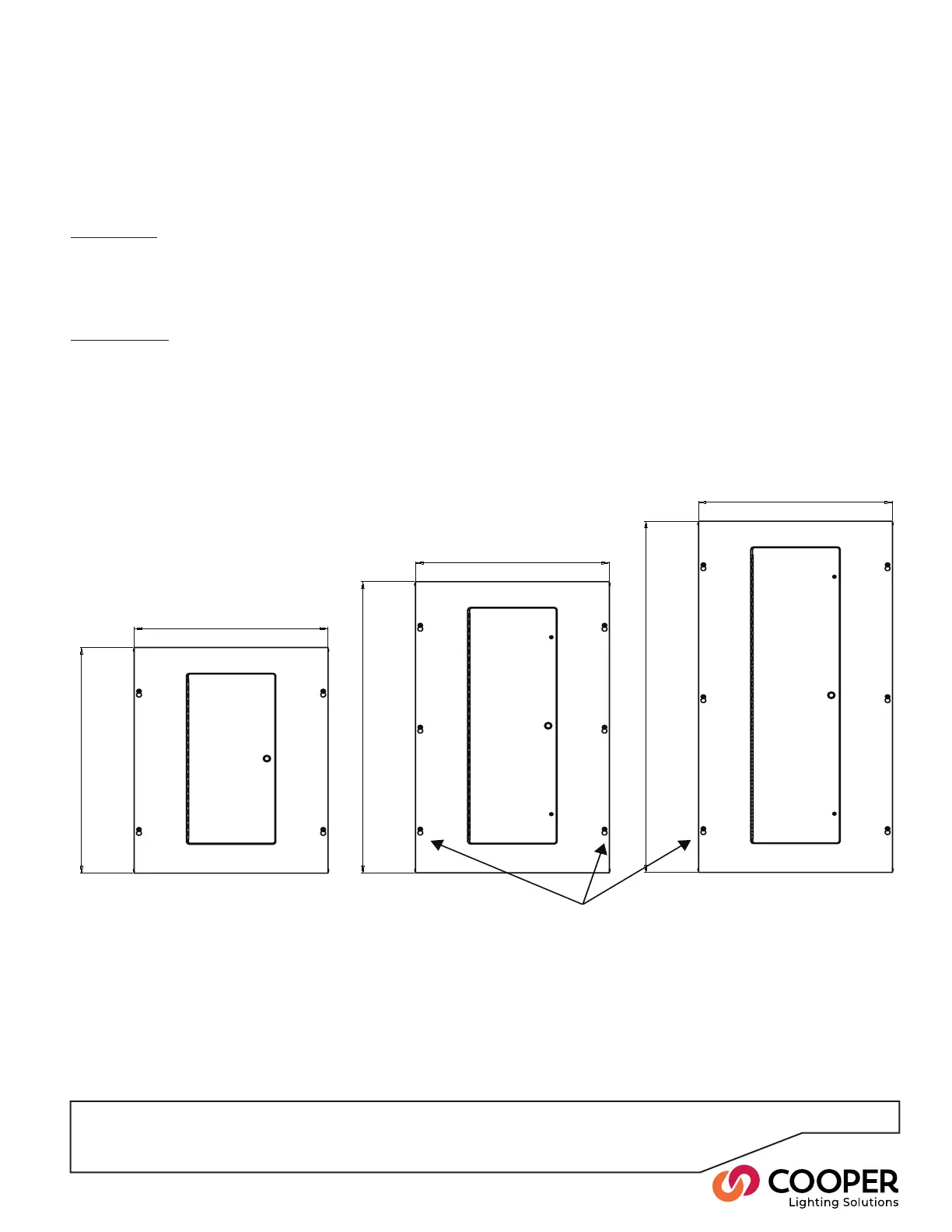

To remove the front panels
1. Remove the outer bolts that hold the panel door in
place and carefully lift off the panel door cover.
To ensure the SCRP Switched Relay Controller
is powered down
For SC-RP
1. Locate the main breaker that feeds the SCRP
Switched Relay Controller
2. Turn off the main breaker.
For SC-RPB
1. Locate the breaker that feeds the main power supply.
2. Turn off the power supply breaker.
3. Locate each breaker that feeds the relay cards.
4. Turn off each breaker that feeds the relay cards.
Objective: To verify proper wiring and mounting.
24.000
40.000
24.000
31.000
24.000
48.250
Outer Bolts
To Next Page
