iLumin SC-RP - Output Configuration and Verification; Step 5: Energize Outputs to Identify Loads; Apply Power to Outputs for Identification

P19
WARNING: Before applying power to any Output, check
that the associated load wiring and load(s) are in a safe
condition and are ready to be energized.
1. Energize each feeding circuit to supply power to the
Outputs.
2. Push the rst corresponding relay pushbutton to en-
ergize the relay or press and hold the button until the
relay clicks to invoke ash to nd mode.
3. Using the installation plans as a guide, walk around
the installation site and identify controlled luminaires.
Step 5: Energize each Output one at a time to determine the location, type and
current draw of its load.
Objective: To conrm the location, type and current of the loads attached to each Output, prior to commissioning.
To apply power to each Output and determine the location and type of the load

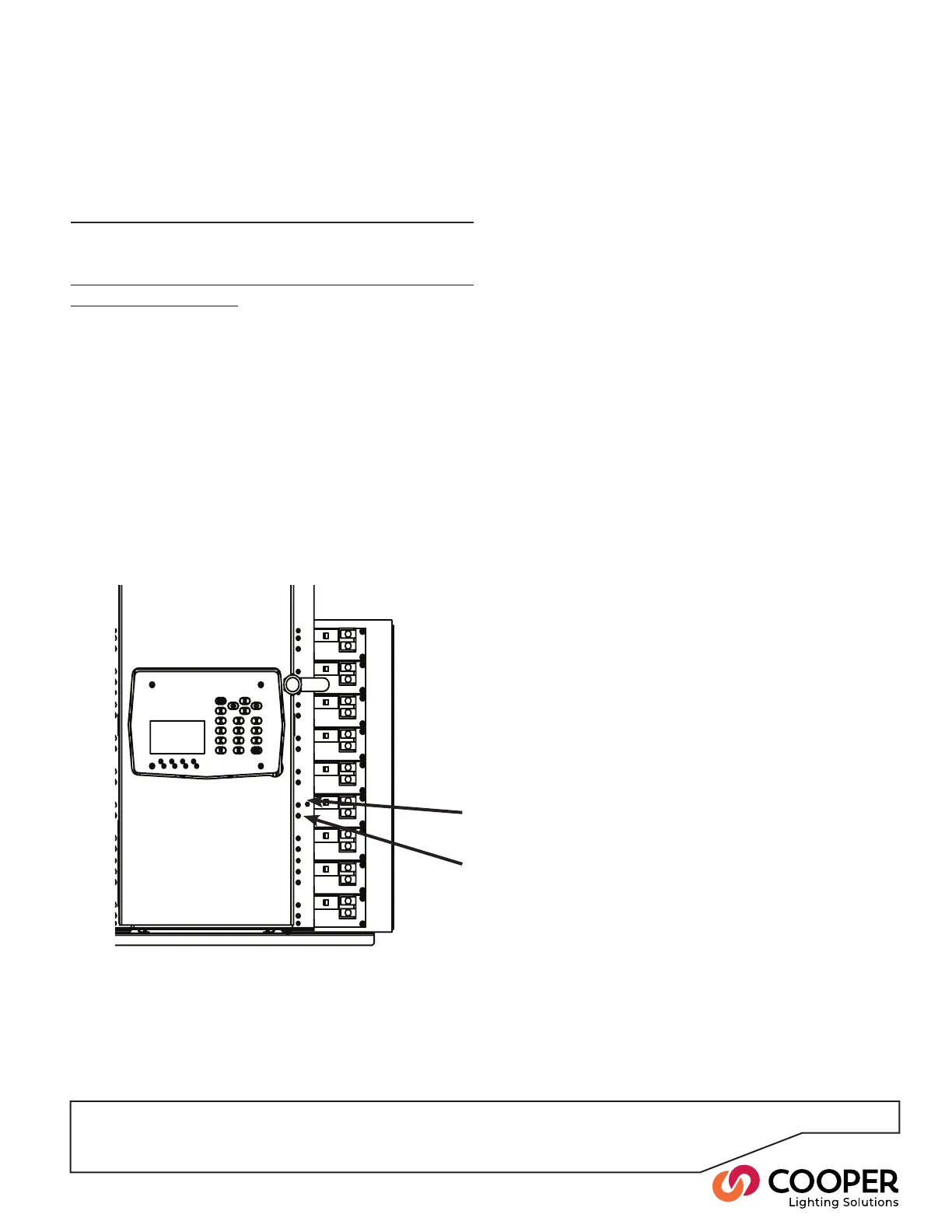

For SC-RPB & SCRP
Pushbutton
Status LED
red = Output Off
green = Output On
4. Log a description of the luminaires against the Output
number. Also note the type of luminaires used as this
information will be needed when setting the Output
behaviors.
5. Press the relay pushbutton to turn off the relay and
cancel ash to nd mode.
6. Repeat for additonal relays.
LED off means no relay is installed in that connector.
