P17
Load Wiring
High voltage load wiring
Each load channel is served by a dedicated relay card.
For each card, load connections are made using a two
terminal screw block connector.
Available at the connection block are line and load
connections.
Total load per channel
The load on each channel must not exceed 16A.
Load wire gauges
Load wiring must be sized according to the nature of the
channel load(s) and with strict regard to regulations and
codes in force within your locality. The maximum
permissible wire gauges accepted by the connector
blocks are:
Solid: 8 AWG (6 mm
2
)
Stranded 2R wire
Neutral

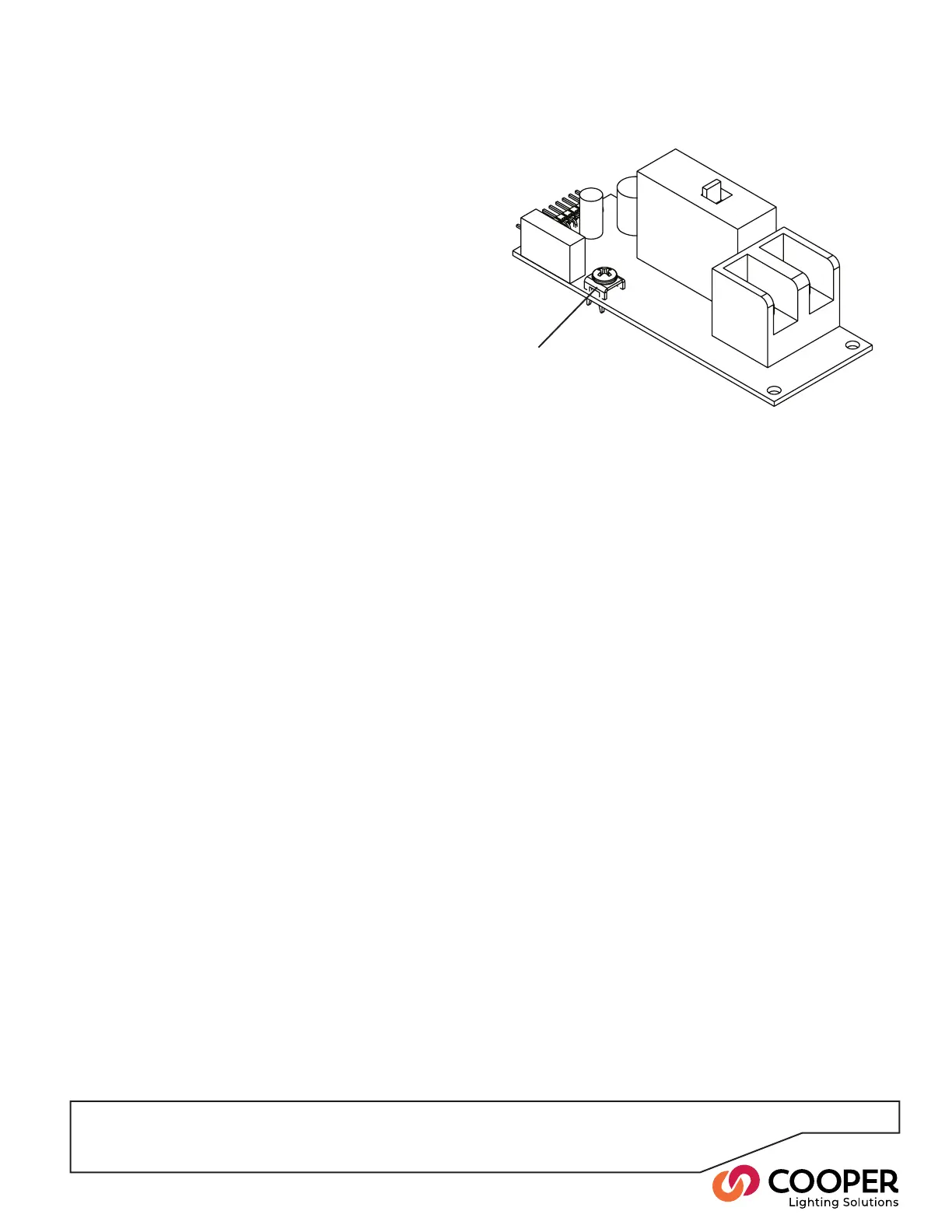

A separate neutral connection is available on each relay
card for voltage reference only. No load current need ow
through this conductor allowing it to be much smaller
than the line and load conductors.
Neutral
