AUDAX TOP ErP

Y/G

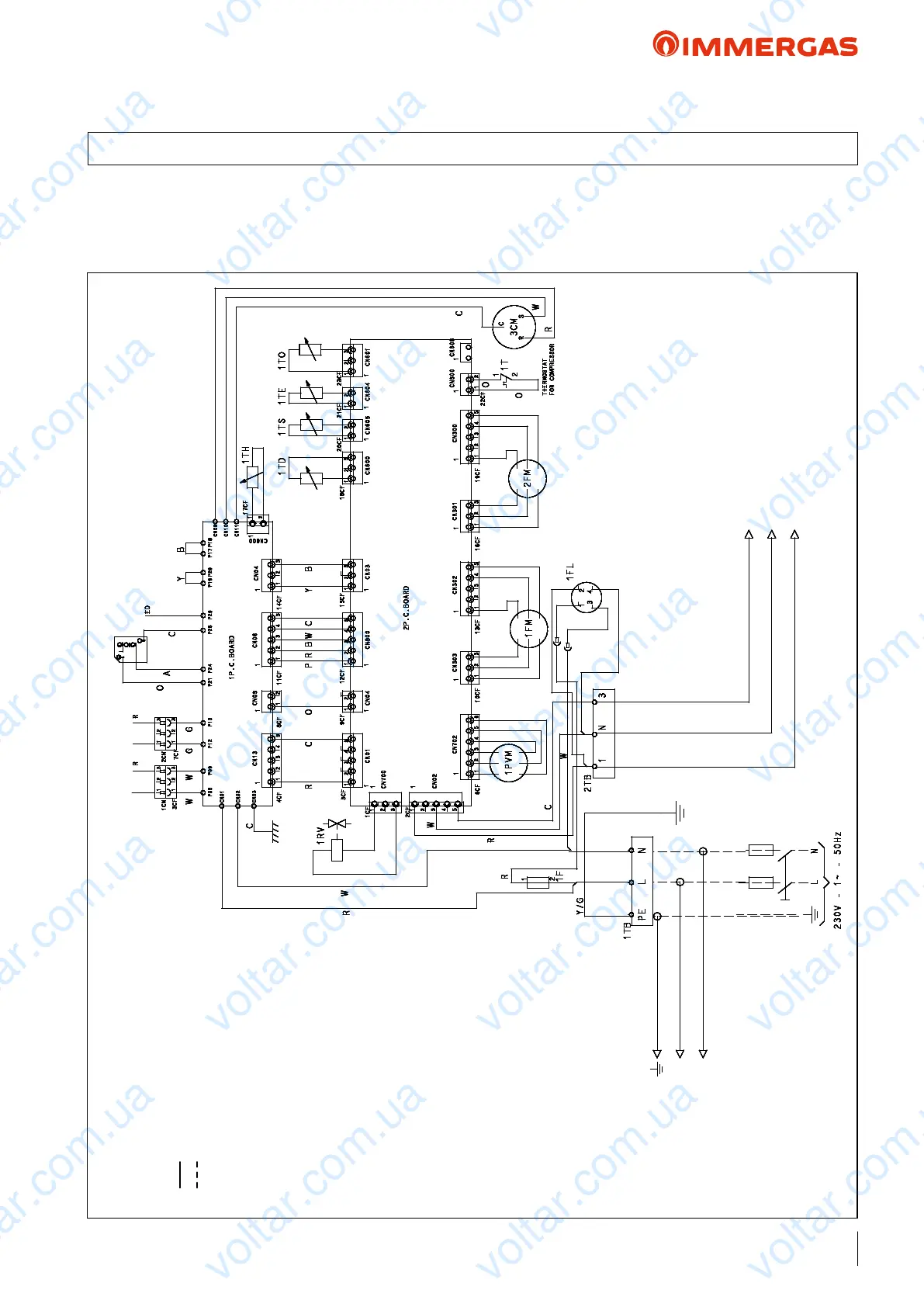

34.1 AUDAX TOP 12 ErP P.C.B.

e AUDAX TOP 12 ErP heat pumps are designed to function

correctly, also without system Manager. ey must only be set

from the Control Panel (standard supply).

Remember to install a circuit breaker switch (you can also add a

disconnecting switch, which is not supplied with the machine).

KEY:

= Manufacturer's wiring

= Installer's wiring

CM = Compressor motor

FM = Fan motor

RV = Reversing valve (4-way)

TS = Low-pressure pipe temperature probe

TO = Outdoor unit temperature probe

TD = High-pressure pipe temperature probe

TE = Condenser pipe temperature probe

PMV = Modulating valve motor

R = Inductance

F = Fuse

Cable colour:

R = Red

Y = Yellow

O = Orange

A = Brown

C = Black

V = Purple

B = Blue

W = White

P = Pink

G = Grey

Y/G = Yellow/Green
