AUDAX TOP ErP



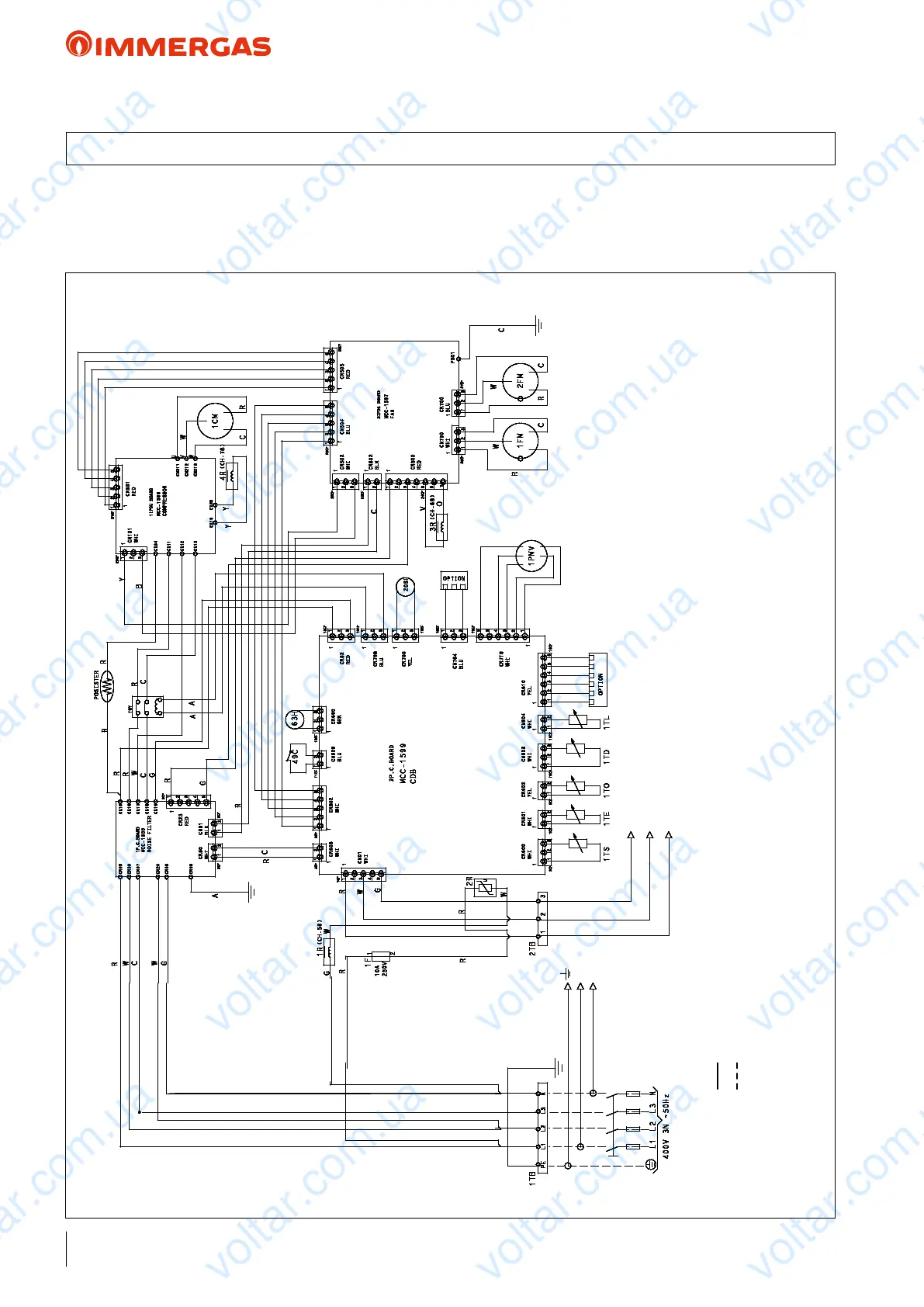

34.2 AUDAX TOP 16 ErP P.C.B.

e AUDAX TOP 16 ErP heat pumps are designed to function

correctly, also without system Manager. ey must only be set

from the Control Panel (standard supply).

Remember to install a circuit breaker switch (you can also add a

disconnecting switch, which is not supplied with the machine).

KEY:

= Manufacturer's wiring

= Installer's wiring

CM = Compressor motor

FM = Fan motor

SF = Reversing valve

TS = Low-pressure pipe temperature probe

TO = Outdoor unit temperature probe

TD = High-pressure pipe temperature probe

TE = Condenser pipe temperature probe

TL = Condenser pipe temperature probe 2

PMV = Modulating valve motor

R = Inductance

F = Fuse

C = Compressor thermostat

H = High pressure switch

RY = Relay

Cable colour:

R = Red

Y = Yellow

O = Orange

A = Brown

C = Black

V = Purple

B = Blue

W = White

P = Pink

G = Grey

Y/G = Yellow/Green
