Immergas VICTRIX PRO V2 - Dirt Separator Assembly Instructions; Nipple and Gasket Assembly; Return Line Connection; Delivery Line Connection

353 620 620 620 620
G 1 1/2"
G 1 1/2"
DN100
DN100
180
200
20
330
1347 363
105
140
444
220
3
409
X
2000
Y
Z
569
11
2
7

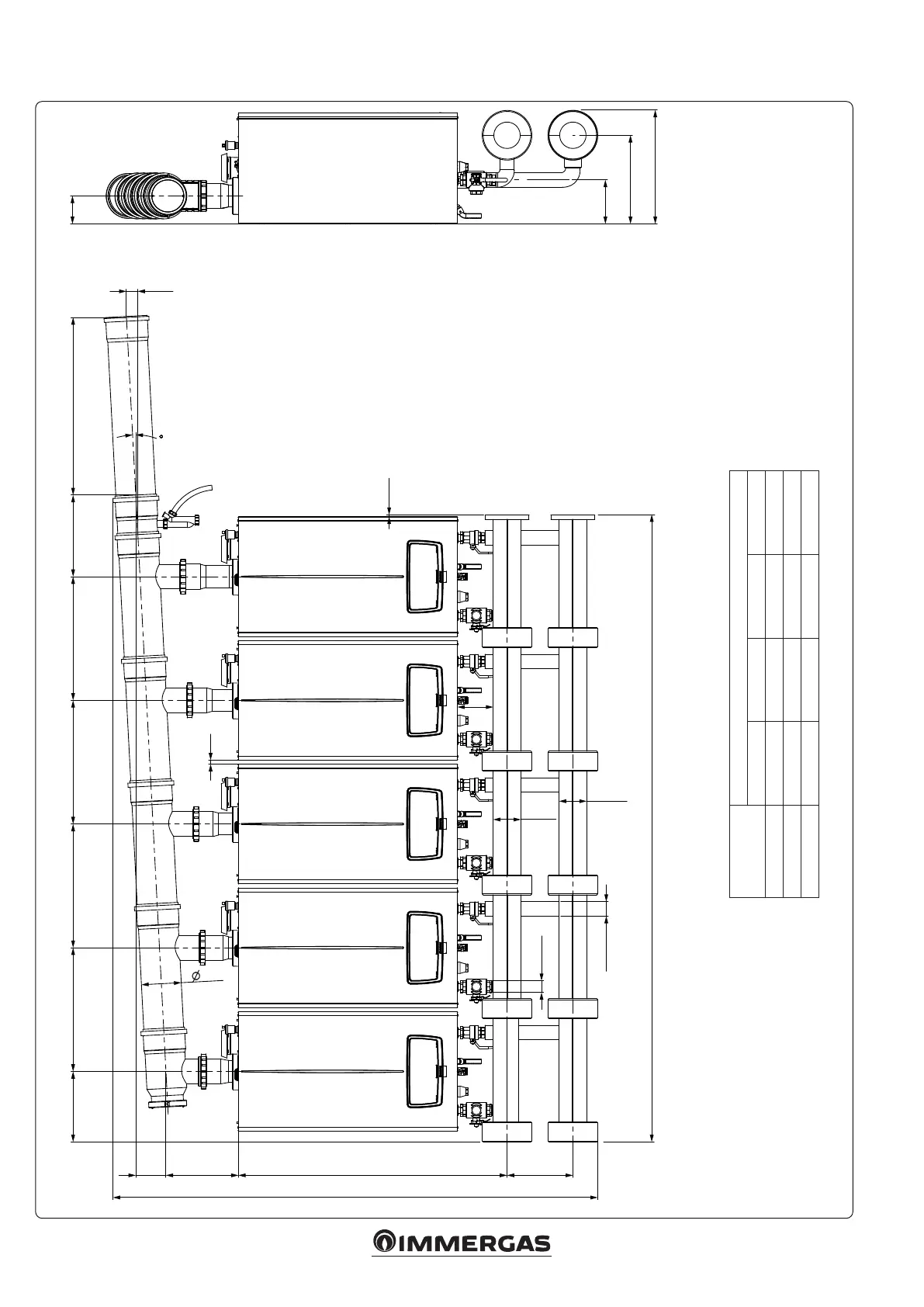

2.3 INSTALLATION CLEARANCES VICTRIX PRO V2 100120 EU
Variable
No. of Boilers
2 3 4 5
X 1284 mm 1904 mm 2524 mm 3144 mm
Y 2335 mm 2367 mm 2399 mm 2431 mm
Z 55 mm 87 mm 119 mm 151 mm
