Immergas VICTRIX PRO V2 - 2.4 Installation clearances Victrix Pro V2 150 EU

353 620 620
G 1 1/2"
G 1 1/2"
DN100
DN100
180
200
20
330 1347 363
140
444
220
X
627
620 620 475
250
3
Y
Z
105
2000
11
3
8

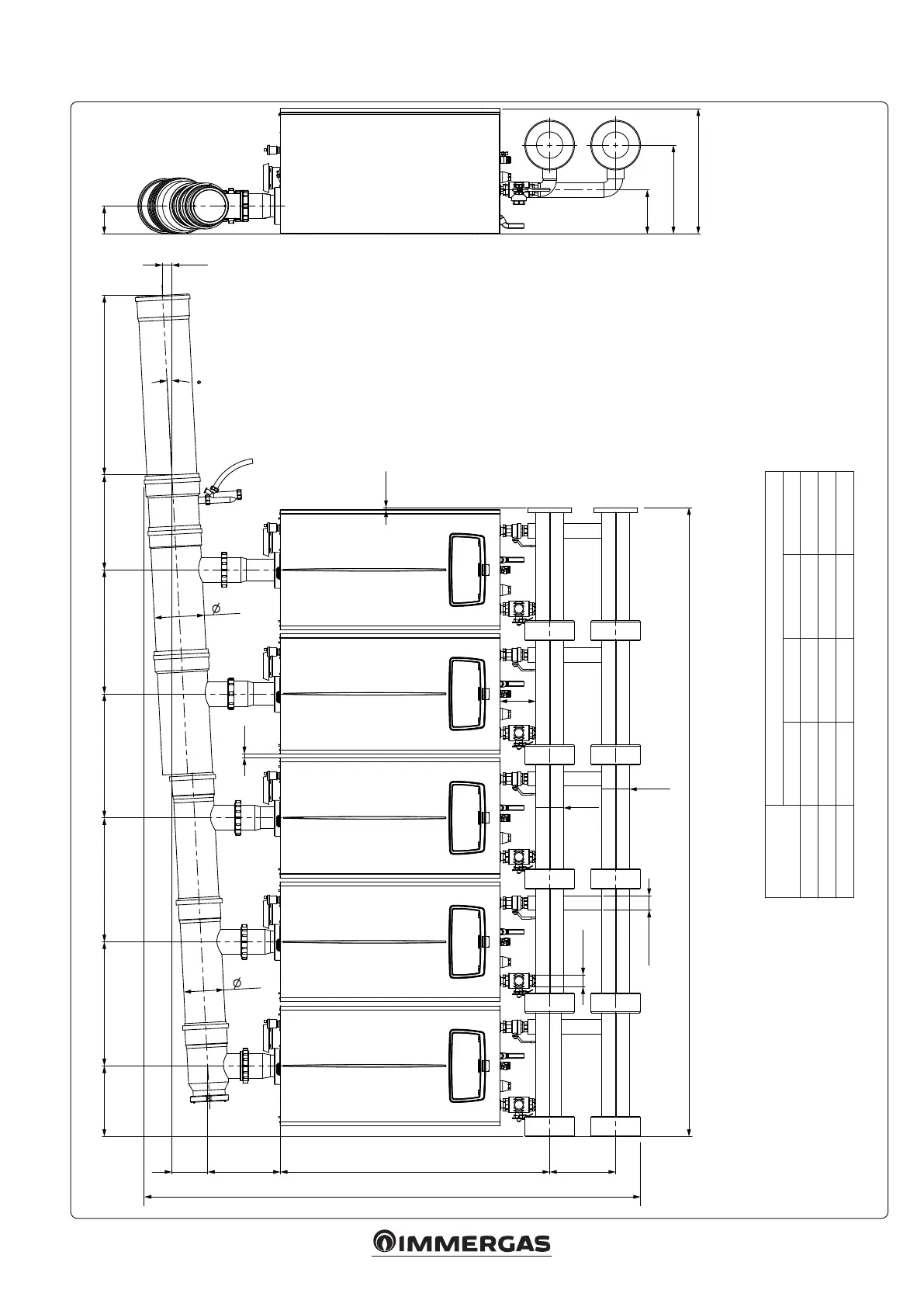

2.4 INSTALLATION CLEARANCES VICTRIX PRO V2 150 EU
Variable
No. of Boilers
2 3 4 5
X 1284 mm 1904 mm 2524 mm 3144 mm
Y 2343 mm 2375 mm 2455 mm 2482 mm
Z 59 mm 91 mm 147 mm 179 mm
