2.9 Cable drum with automatic reeling (optional)
The operation of reeling and unreeling the hose is carried out by joystick “Driving” or reeling
via foot switch. The speed of the cable drum is chosen by means of the potentiometer on the
control unit.
…………….
Always use the included manhole deflection roller.

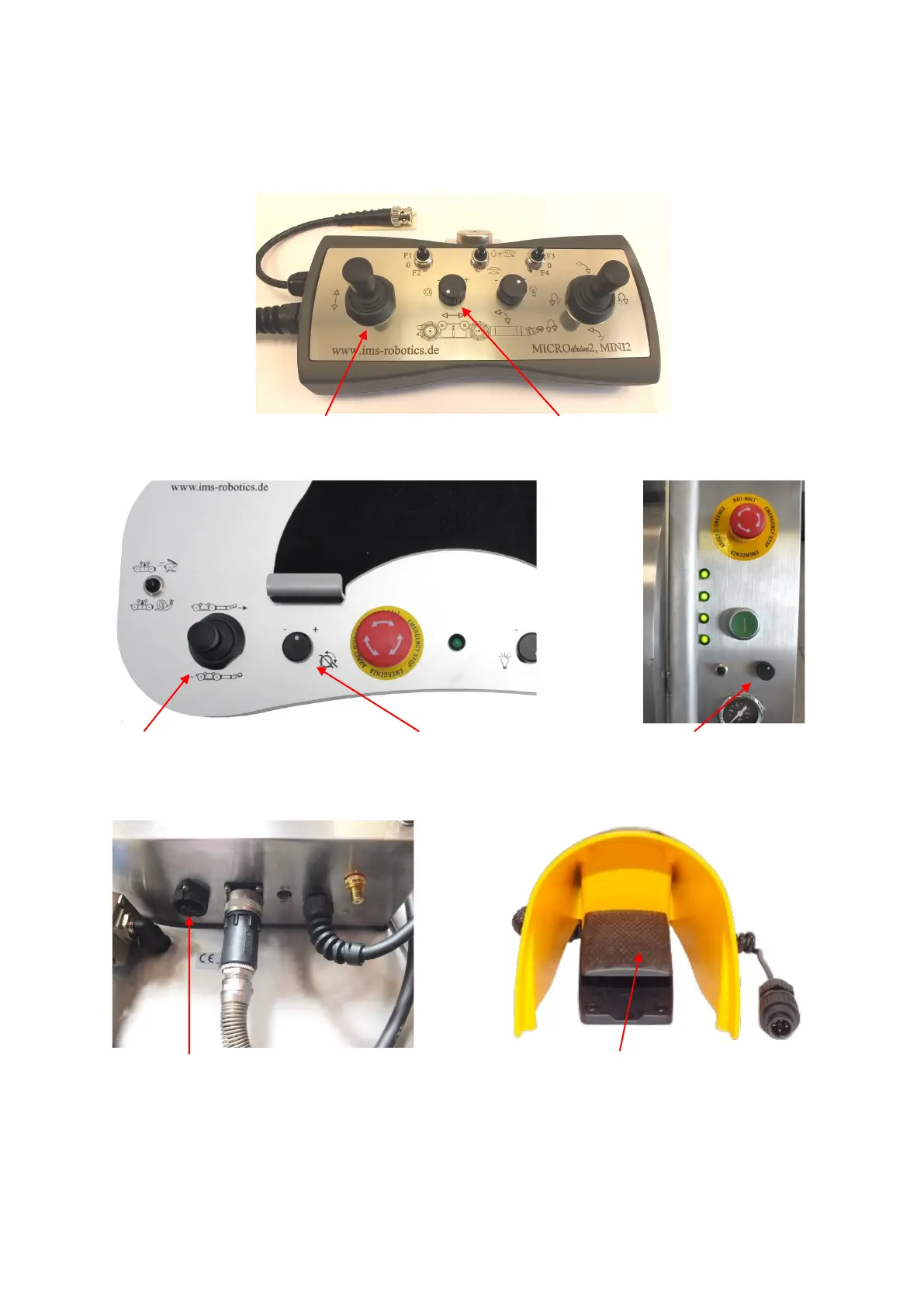

Joystick „Driving“
Speed of automatic
cable reel
Connection foot switch
Foot switch
Joystick „Driving“
Speed of automatic
cable reel
Speed of automatic
cable reel
