6 Repairs
6.1 Repair of air motor

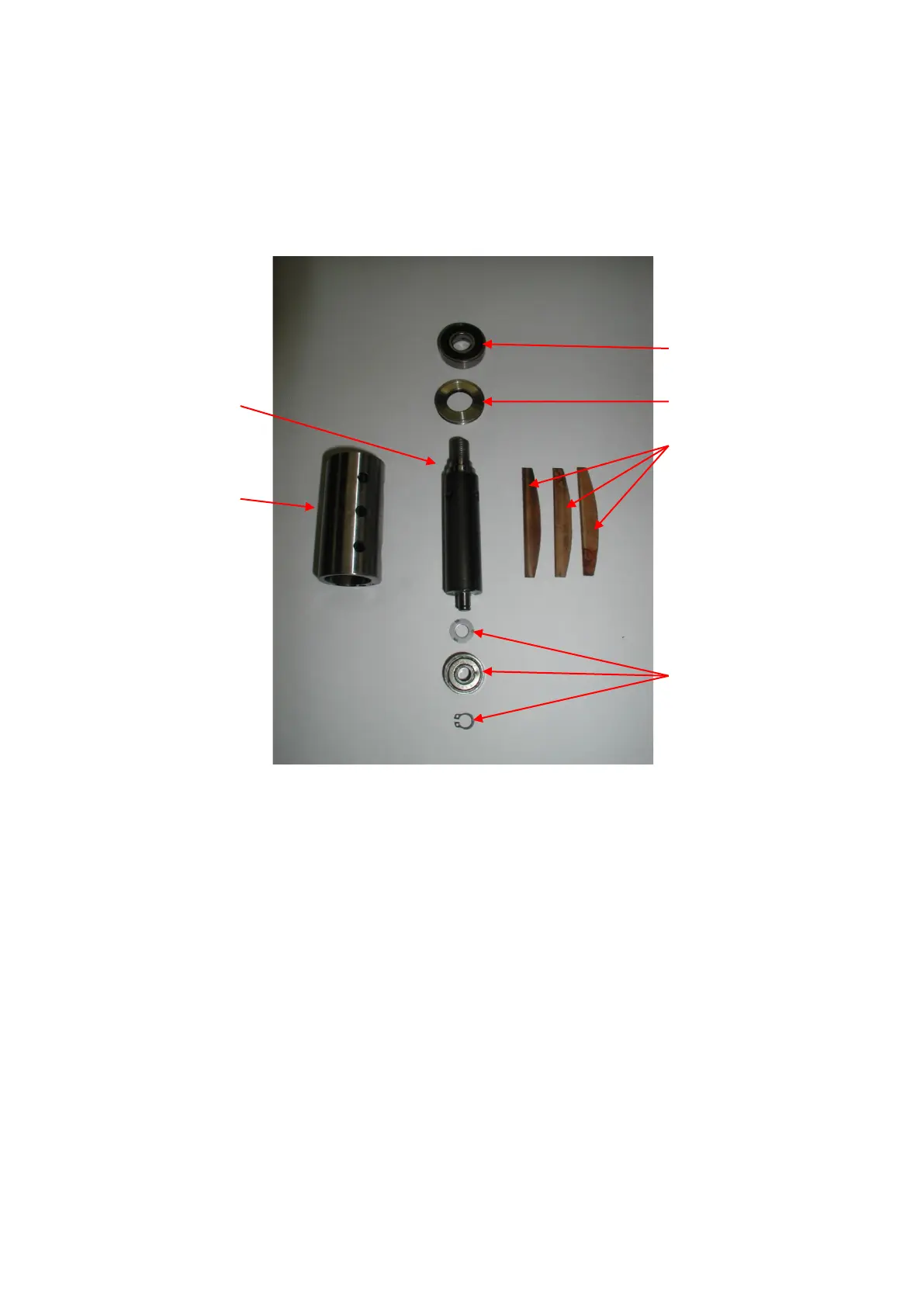

6.1.1 Overview spare parts air motor
1 006 30 001 Ball bearing with shim and retaining ring
2 021 01 027 Cylinder
3 006 30 002 Rotor with air motor ring
4 021 01 053 Set of fins
5 030 01 070 Ball bearing
6 030 01 032 Vent ring
4
1
6
5
3
2
