2.11.2 Cutting tool replacement

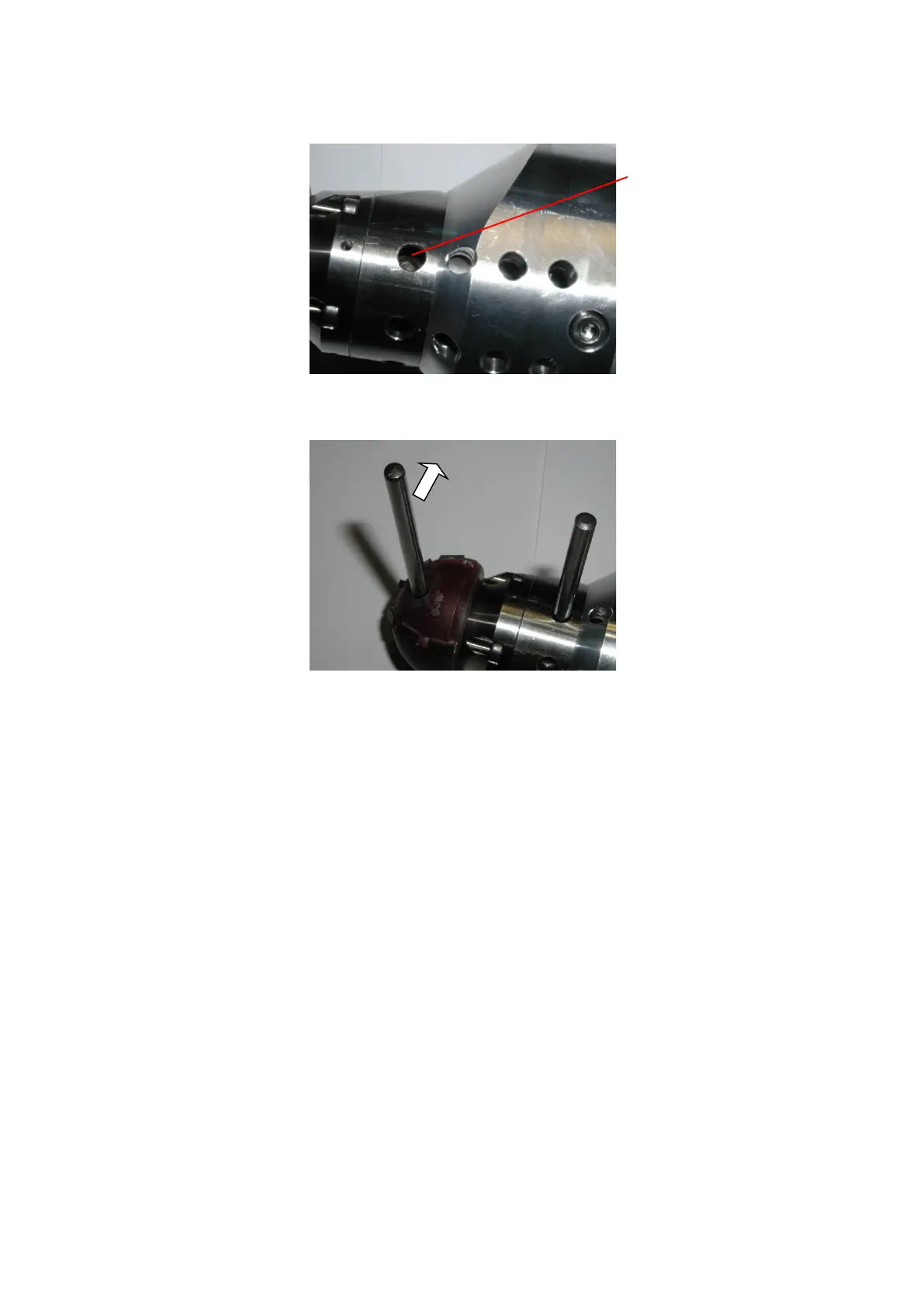

The pins (5 mm diameter) as supplied are used to remove the cutting tool. The rotor is fixed
by setting one pin into the prescribed bore hole on the housing.
The cutting tool is loosened by turning the second pin (corresponding to arrow direction)
The tool is reassembled in a similar manner.
Bore hole
