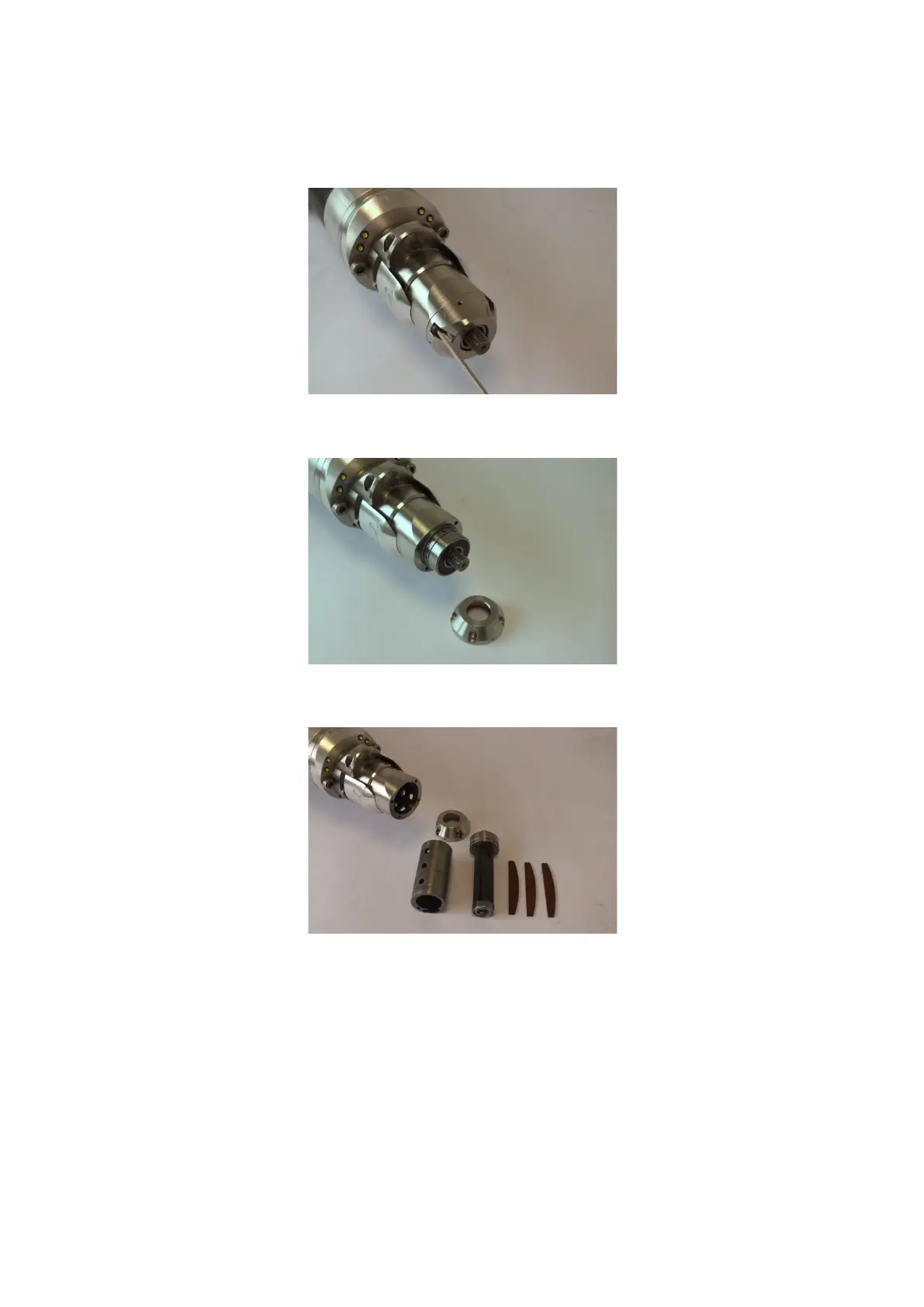

6.1.2 Removing and assembling air motor
For removing the cutting tool see 2.11.2 Cutting tool replacement. Unscrew the air
motor cap (4 screws M3x8).
Pull out the rotor with the cylinder.
Cylinder can be replaced.
Remove the fins from the rotor. Fins can be replaced now.
