4.2.3 Cleaning the camera cleaning ring
In order to prevent unnecessary soiling of the camera during work, it is advisable to
dismantle and clean the camera cleaning ring every week. To do this, proceed as
follows:

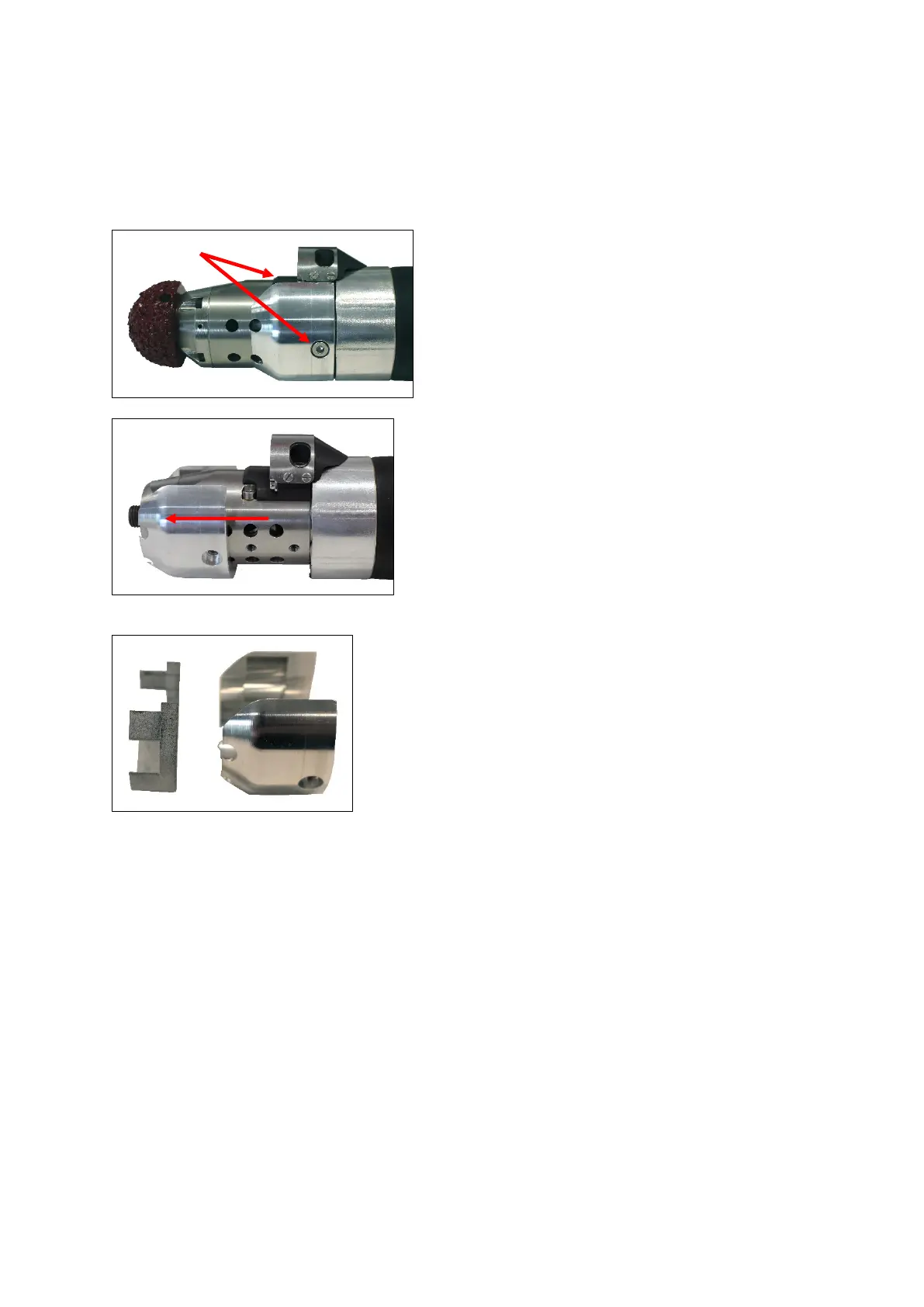

First remove the two Allen screws M4 x 6.
Then push the cleaning ring forwards in the
direction of the arrow and remove it.
There is a moulded plastic part inside the groove in
the cleaning ring. Remove this and clean all parts
thoroughly.
The assembly is done in reverse order.
