9

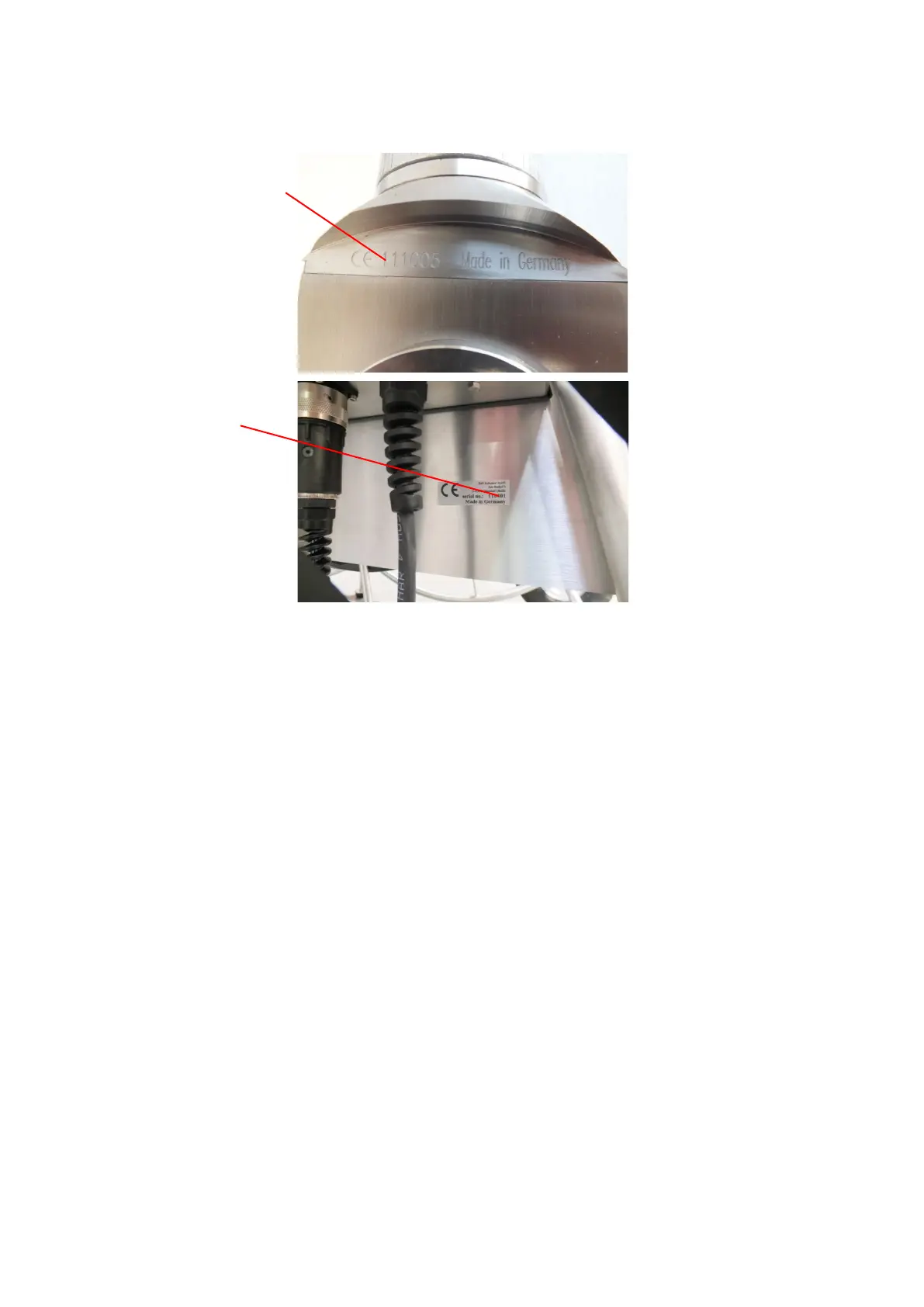

The camera, the cutter drive and the chassis are equipped with serial numbers.
All assemblies have a minimum protection class of IP54. This means that the assemblies are
protected against:
- infiltration by wire
- dust
- spray on all sides.
The supply media need to have the following properties:
Power supply: 100 - 240 VAC, 47 – 63 Hz, max. 7,4 A
Supply line pressure: Free of dirt (particles < 5 micron),
Temperature range 5 °C up to max. 40 °C
(41 °F up to max. 104 °F),
Residual water separated,
Residual oil < 5 mg/m
3
,
Supply line pressure 10 bar (145 PSI),
min. volume flow 1 m
3
/min (35 CFM).
