4 L e a d M o t o r s
4 lead motors are the least exible but easiest to wire. Speed and torque
will depend on winding inductance. In setting the driver output current,
multiply the specied phase current by 1.4 to determine the peak output
current.

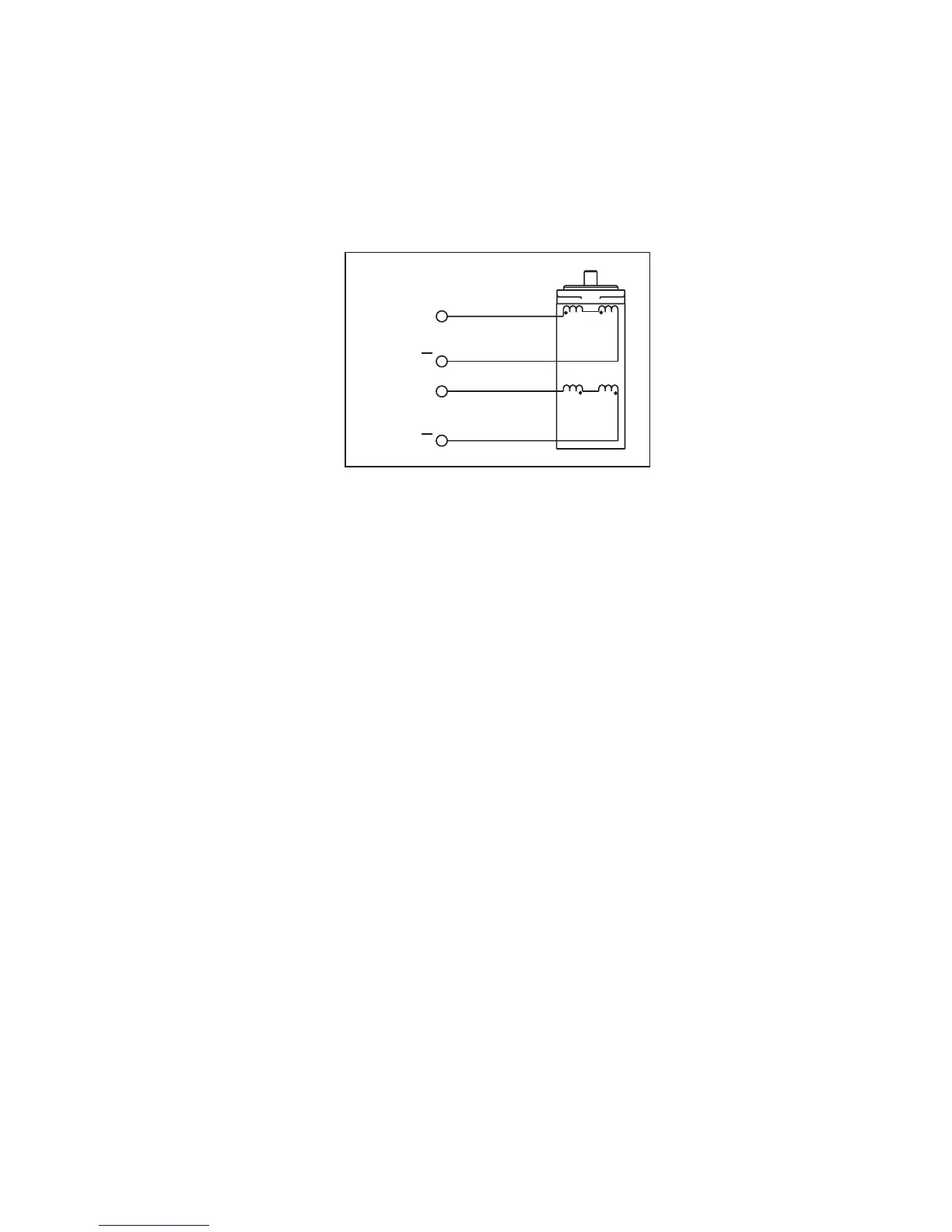

Figure 6.6: 4 Lead Motor Connections
PHASE A
PHASE
A
PHASE B
PHASE B
