A P P E N D I X a
R e c o m m e n d e d C a b l e C o n f i g u r a t i o n s :
D C S u p p l y t o I M S D r i v e r
Cable length, wire gauge and power conditioning devices play a major
role in the performance of your IMS Driver and Motor.
NOTE: The length of the DC power supply cable to the IMS Driver
should not exceed 50 feet.

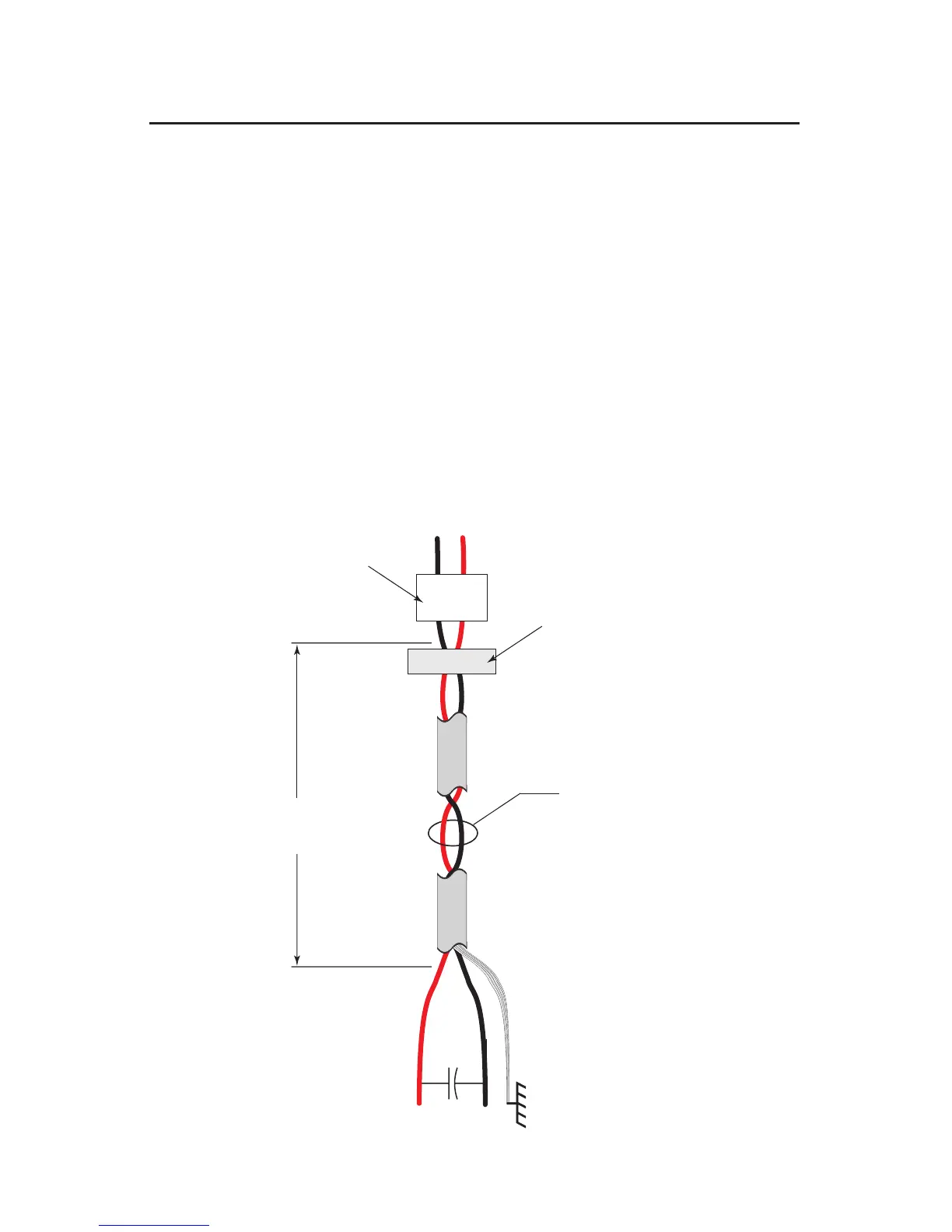

Example A demonstrates the recommended cable conguration for DC
power supply cabling under 50 feet long. If cabling of 50 feet or longer
is required, the additional length may be gained by adding an AC power
supply cable (see Examples B & C).
Correct AWG wire size is determined by the current requirement plus
cable length. Please see the IMS Driver Supply Cable AWG Table in this
