M i n i m u m C o n n e c t i o n s

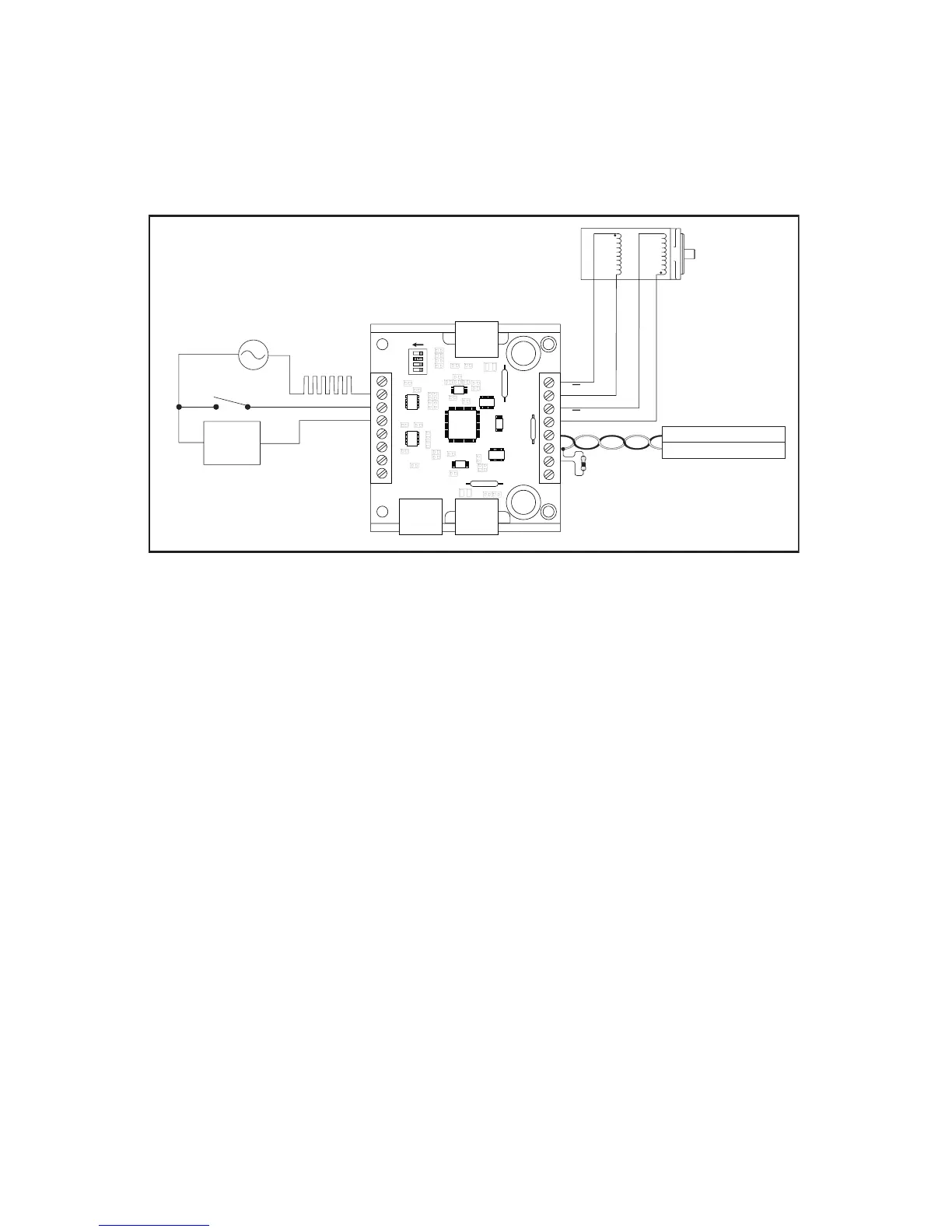

The following gure illustrates the minimum connection requirements for
the IM483.
+5 VDC
Opto
Supply
Step Clock
Oscillator
Direction
Current Adjustment
Resistor
ØA
ØA
ØB
ØB
Step Clock
P1:1
P2:1






 



TORQUE:
Maximum
torque on terminal screws is 4.5 lbs-in (0.5 N-m). DO NOT Overtighten
!
SUPPLY AND MOTOR WIRING:
Use 18 AWG twisted pair.
(Belden #9740 or equivalent)
Figure 7.12:IM483 Minimum Required Connections
