I n t e r f a c i n g t h e A d d i t i o n a l I / O o n C o n n e c t o r P 1
The MSEL inputs and Step/Direction outputs on the IM483-34P1-8P2 are
interfaced in the same way as those on the IM483-34P1. See the part of this
appendix pertaining to that model of the IM483 for interface and connec-
tion details.
O p t i o n a l S c r e w Te r m i n a l I n t e r f a c e f o r P 1
The BB-34-4P is an optional breakout board that plugs directly into the pin
receptacle for P1. This gives the user a screw terminal interface to P1. For
drawings and details please see Appendix D: Accessories, BB-34-4P.

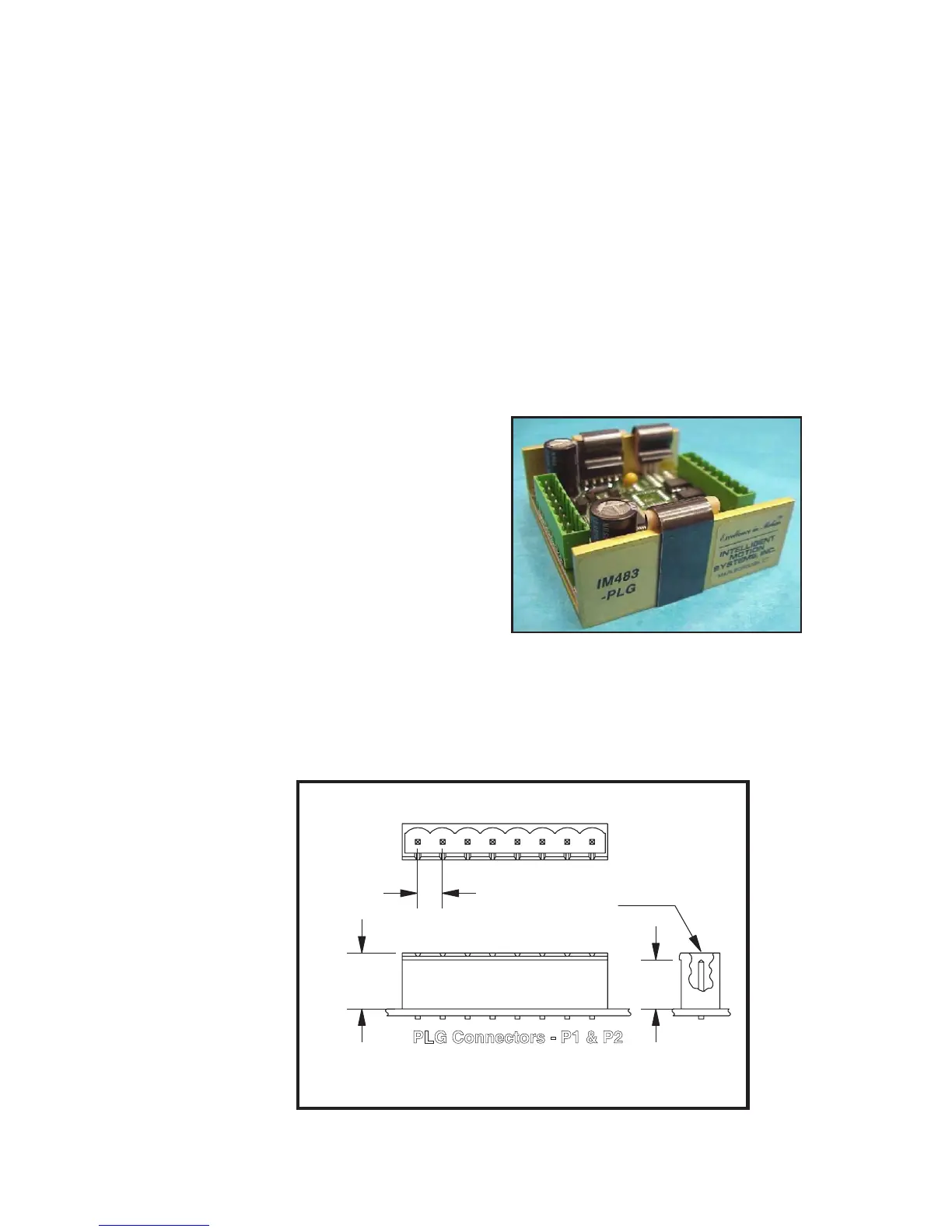

I M 4 8 3 - P L G
The IM483-PLG replaces both con-
nectors P1 and P2 with an Altech
8 position pluggable interface. The
removeable, plug-in screw termi-
nal set is available as an option
(PLG-R).
This connector option is useful
in system designs where ease of
removal is desired. For example,
the IM483-PLG is pin compatible
with the IM804/5-PLG. If more
power is needed the drives are
easily swapped.
These connectors are oriented to prevent plugging the driver in backwards.
When the mating connectors are plugged in, they will lock in place.
See Figure A.12 for pin locations and orientation.
