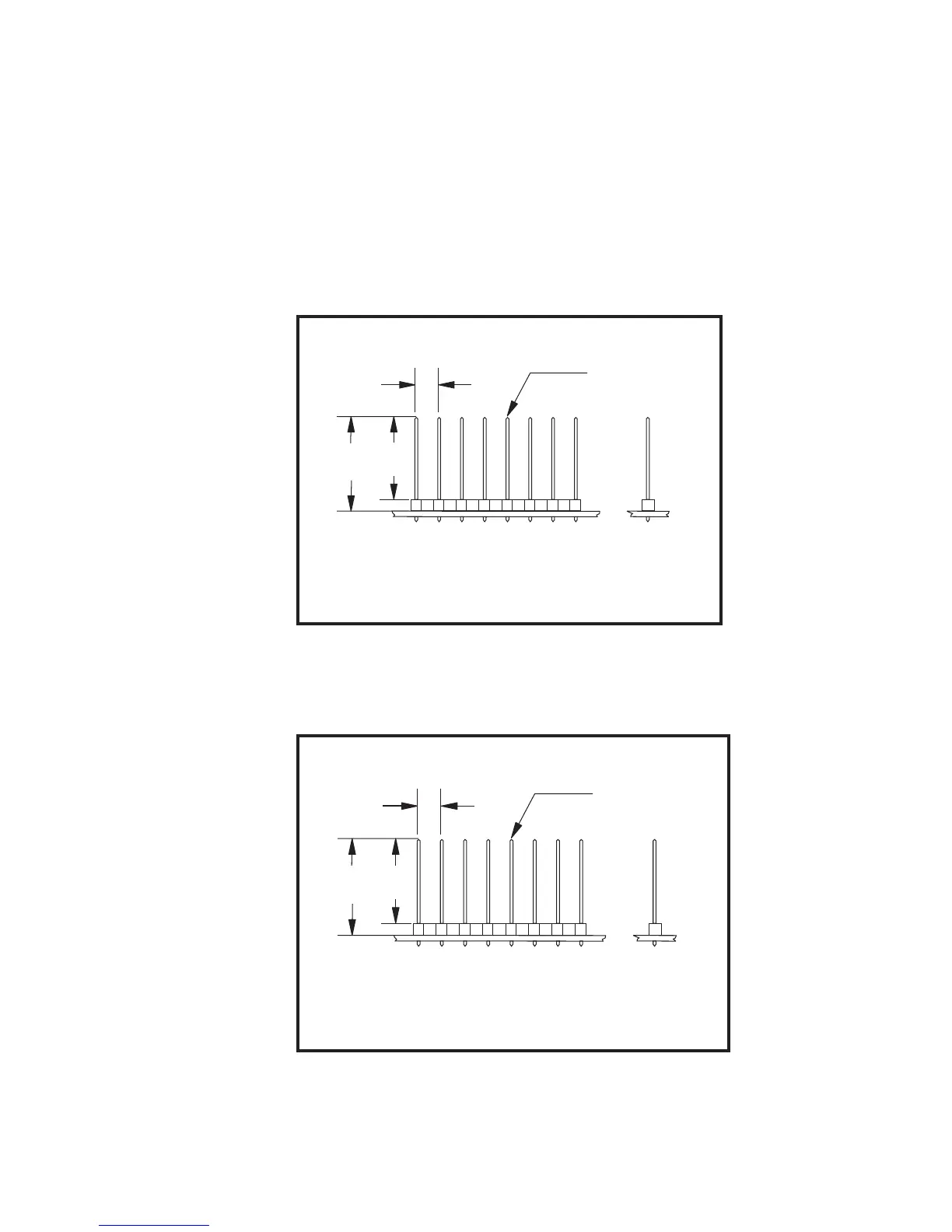

IMS IM483 - Im483-8 P2; Figure A.5 IM483-8 P2 - Connector P1; Figure A.6 IM483-8 P2 - Connector P2

60 IM483 Operating Instructions Revision R032306
61IM483 Operating Instructions Revision R032306
I M 4 8 3 - 8 P 2
This connector option uses 8 - 0.045 square pins at the P2 connector
location. The P1 connector location uses 8 -0.025 square pins.
This connector style is advantageous in a scenario where the user desires
to either solder the IM483 directly into a system PCB or wire-wrap the
interface connections. Figures A.5 and A.6 show the pin dimensions.
0.720
(18.29)
0.820
(20.83)
0.200
(5.08)
8X 0.025 (0.64)
Sq. Post
Ti
n Plated Bronze
Applicable Products:
IM483-8P2
8 Pin Connector Pins - P1
Figure A.5: IM483-8P2 - Connector P1
0.720
(18.29)
0.820
(20.83)
0.200
(5.08)
8X 0.025 (0.64)
Sq. Post
Tin Plated Bronze
Applicable Products:
IM483-8P2
8 Pin Connector Pins - P1
Figure A6: IM483-8P2 - Connector P2
