56 Model 5525-6025-6625 Parts & Specifications Manual Part # 99904215

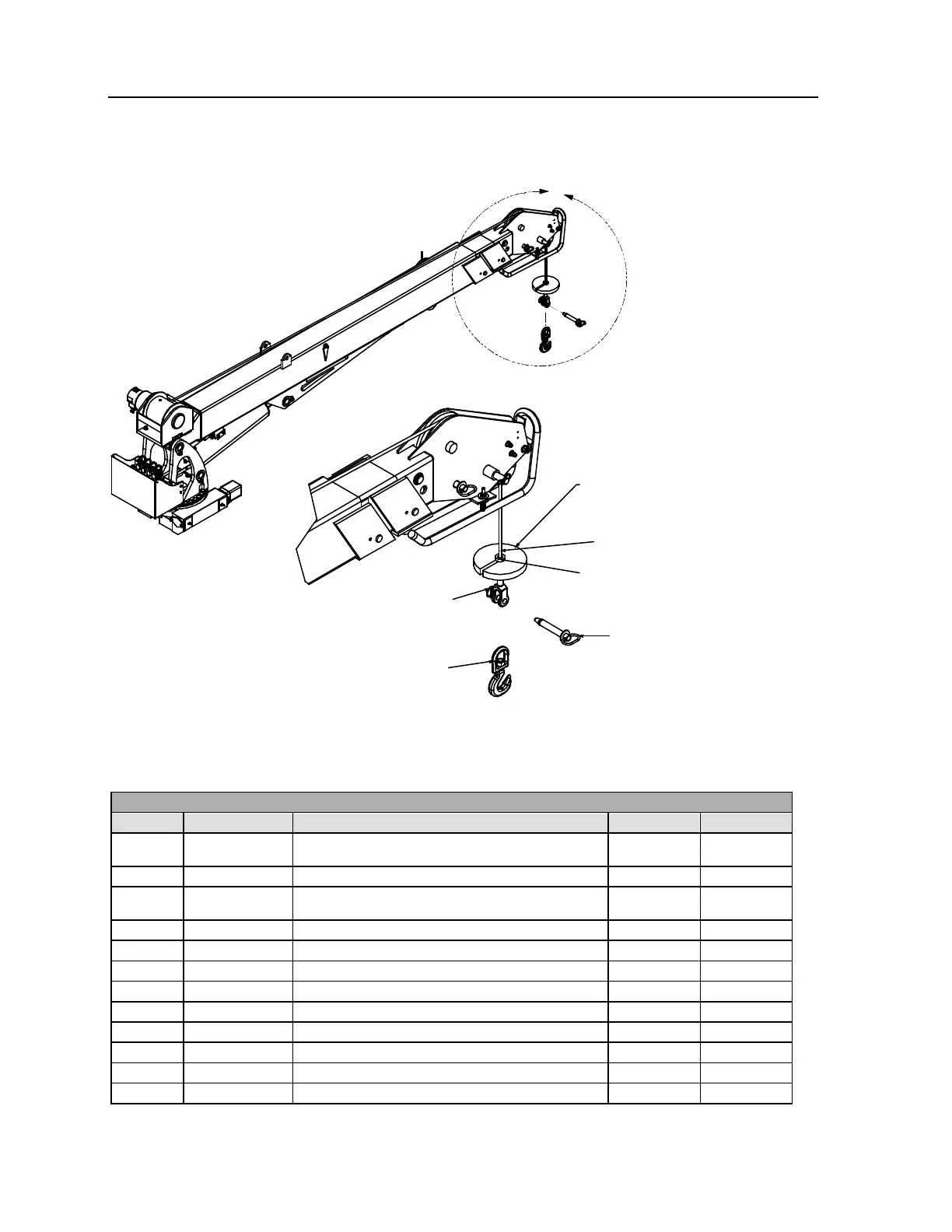

99904035 SINGLE LINE VIEW
B
42
10
11
40
44
SINGLE LINE VIEW
DETAIL B
DOWN
HAUL
WEIGHT
(SHOWN AS MOUNTED
ON TRUCK)
NOTES:
1 FOR SINGLE LINE APPLICATIONS, INSTALL PIN #18 THROUGH WIRE ROPE CLEVIS AS SHOWN.
2 MOUNT DOWNHAUL WEIGHT OVER CLEVIS.
99904035 PARTS LIST
ITEM
PART #
DESCRIPTION
KIT #
QUANTITY
1.
99903945
DWG-BASE & MAST ASY 6025 SII W/FAUVER
VB
1
2.
99904235
DWG-BOOM ASY 55-60-6625 SII
1
3.
99904036
DWG-HYD INSTALL SII PLANETARY WINCH
(A)
REF
4.
51720023
KIT-HRDW CRANE & WINCH 6025 SII
1
5.
91720393
KIT-HOSE 5525/6625 SII PLANETARY (A)
1
6.
60127985
COVER-VALVE BANK 3820/5020 SII
1
7.
52718741
PIN TYPE-MM 2.00 X 12.75 (11.94)
2
8.
52718903
PIN TYPE-MM 2.00 X 9.00 (8.19)
1
9.
73733171
PIN LOCK 1X6 W/HAIR PIN
1
10.
72661514
PIN-LOCK W/HANDLE .875 X 4.25
2
11.
72661543
PIN-QUICK 316-10QP
3
12.
71411458
CYL-5.25/2.50 21.12S 35.75CC C 6625 LWR
1
