22
Time Line to Trip Trace Correlation (Examples)
The following examples show how the OPTImizer
2
logs events.
They include:
• Arc record examples
• Interactions of the Aux A and Aux B inputs
• The phase currents
• The A INPUT DELAY setpoint
• The ARC TIME and TRAVEL TIME setpoints
The setpoints and applied limits for the following examples are given below each time line (Figs. 6A, 6B, 6C and 7).

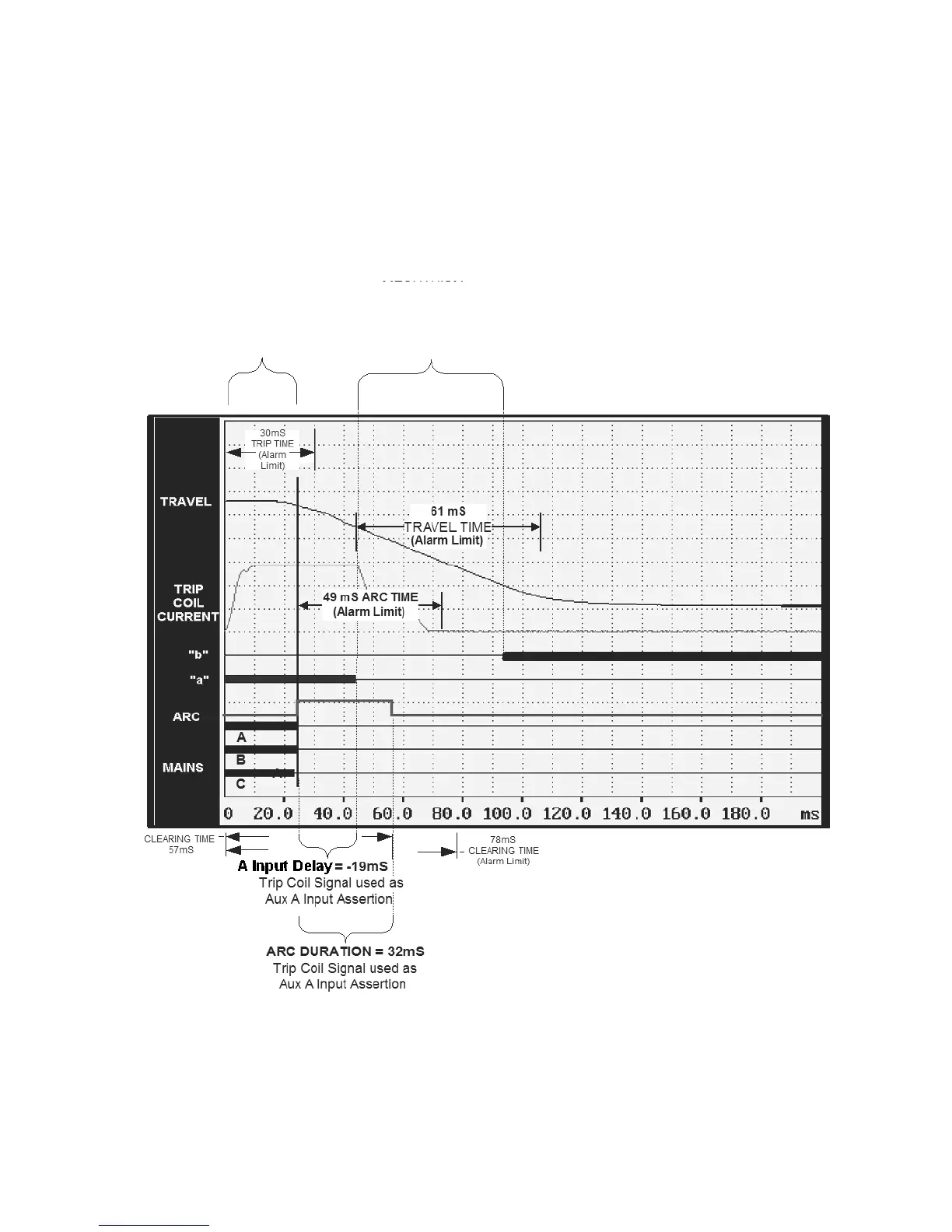

Figure 6A: Trip Trace, Using Trip Coil Voltage to Start OPTImizer
2
TRIP MECHANISM
TIME (TRIP TIME),
(24 mS)
MECHANISM
TRAVEL TIME, difference
between Aux A and Aux B
Input state changes
(49 mS)
