IndigoVision 9000 Range - Connections

12 User Guide - v7
Connection
Panel
Security
Screw

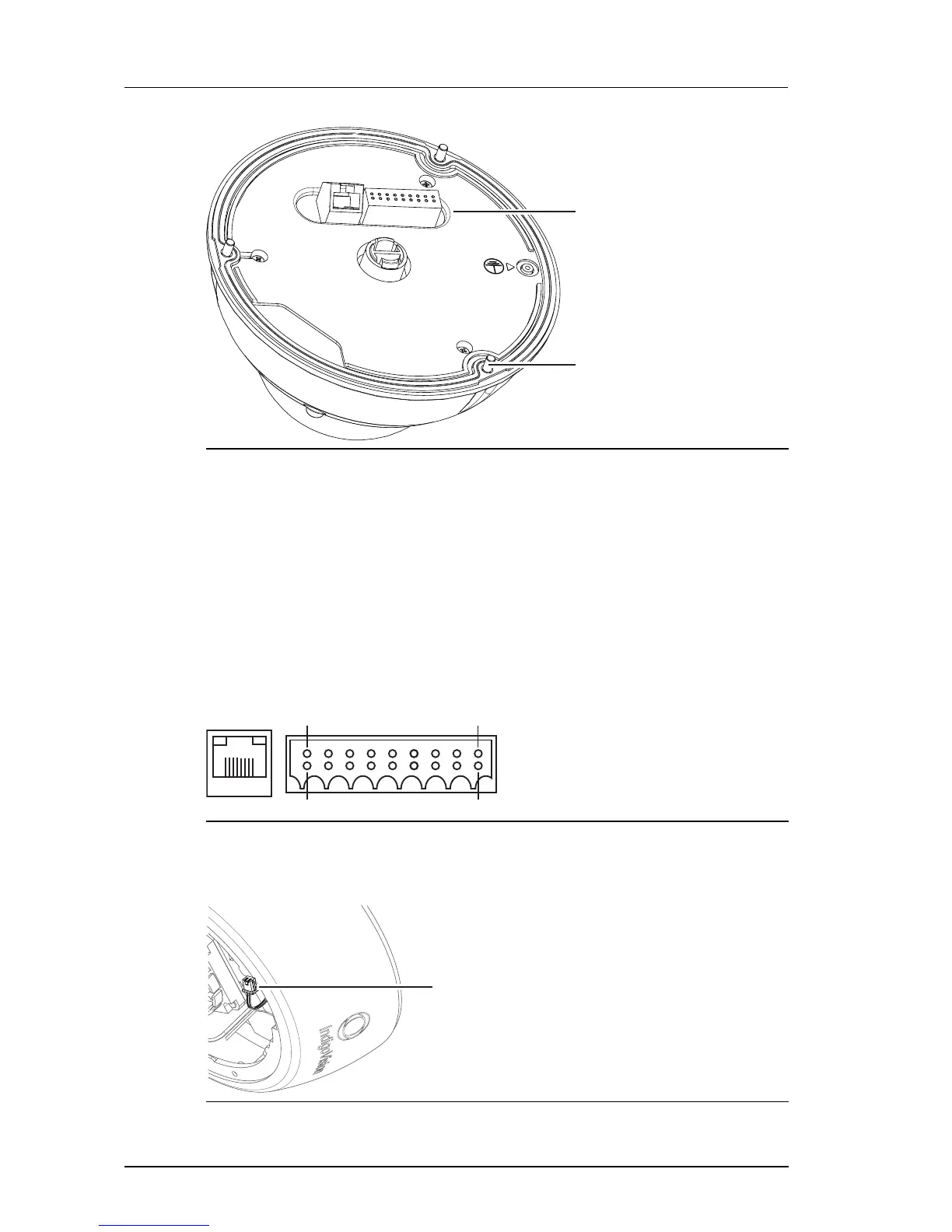

Figure 6: Environmental Vandal Resistant variant - rear view (no exit collar)
Dimensions
• 163mm (d) x 131mm (h)
Weight
• 1.3kg (including packaging)
Connections
The camera connections are situated on the back of the camera.
Pin 18
Pin 17
Pin 2
Pin 1
RJ45
Figure 7: Camera connections
An analog video cable with a 2-way connector is available to help during camera installation.
This connector is located on a flying lead connected to the camera's main circuit board.
2-way analog connector
Figure 8: 2-way analog connector
2 Hardware Description Enhanced SDFixed Dome - 9000 Range
