User Guide - v7 19
• 1 x hole template
Ensure you remove the packing material from inside the camera before operating the camera.
Remove the camera bezel by unscrewing the three security screws situated around the dome
bubble (use the Torx T10 bit supplied). Then lift off the bezel, the dome bubble, and the lens
shroud.
Environmental Vandal Resistant variant

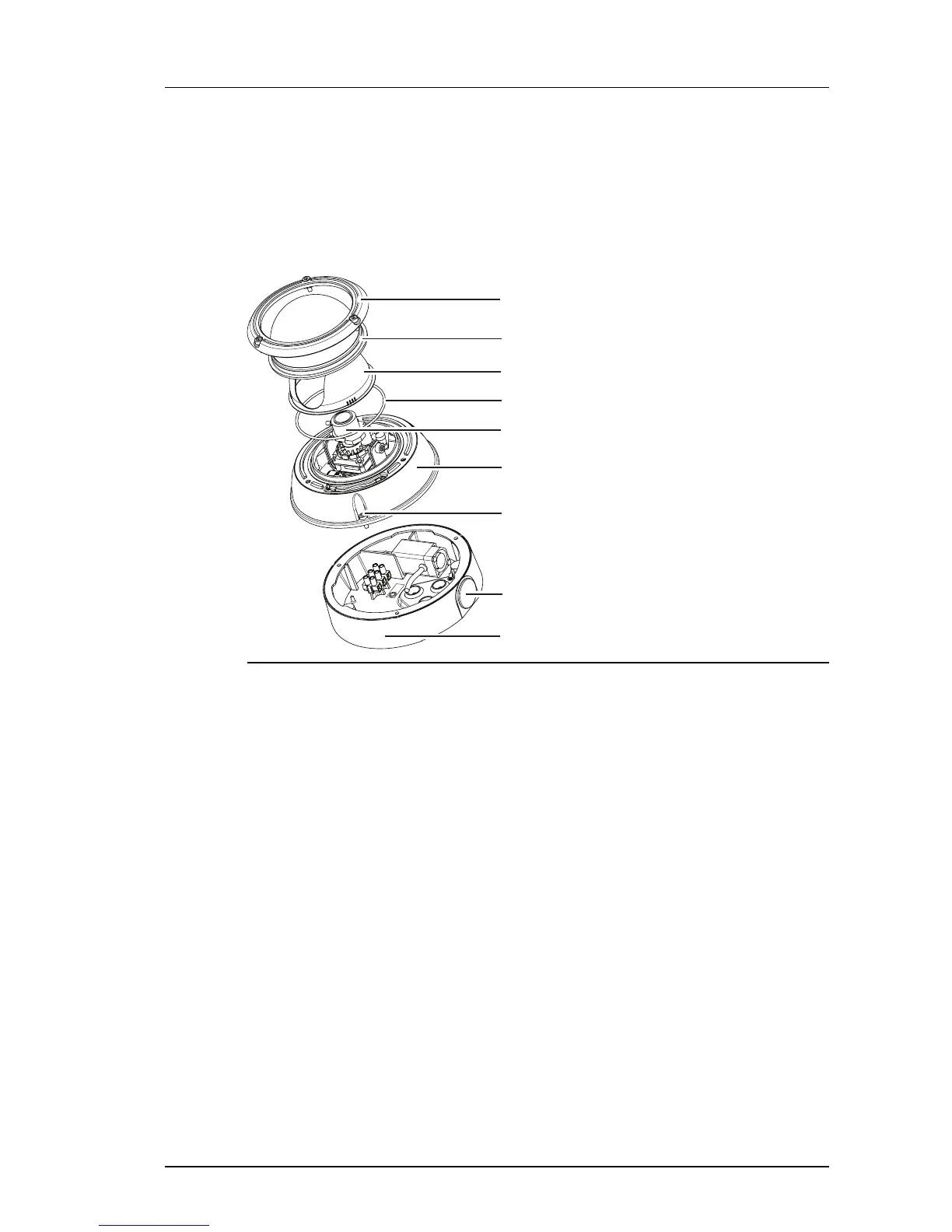

Figure 12: Vandal Resistant variant package contents
1. Bezel
2. Dome Bubble
3. Lens Shroud
4. Seal
5. Lens Assembly
6. Camera Assembly
7. Security Screw (x3)
8. Exit Hole
9. Exit Collar with sealing plugs and gasket
In addition to the camera, the following items are also provided:
• 1 x analog video cable
• 1 x Ethernet cable with grommet
• 1 x allen key
• 1 x torx bit
• 1 x 12Vdc power supply (for heater)
• 1 x desiccant bag
• 1 x spare grommet
• 1 x mini inline-coupler for Ethernet
• 1 x hole template
Enhanced SDFixed Dome - 9000 Range 3 Getting Started
