Wall/Ceiling preparation
Before fitting the camera, drill fixing holes on the wall or ceiling for the camera, and cut out the
cable access hole.
62.8mm 32.0mm
47.5mm
50.0mm
108.8mm
125.5mm

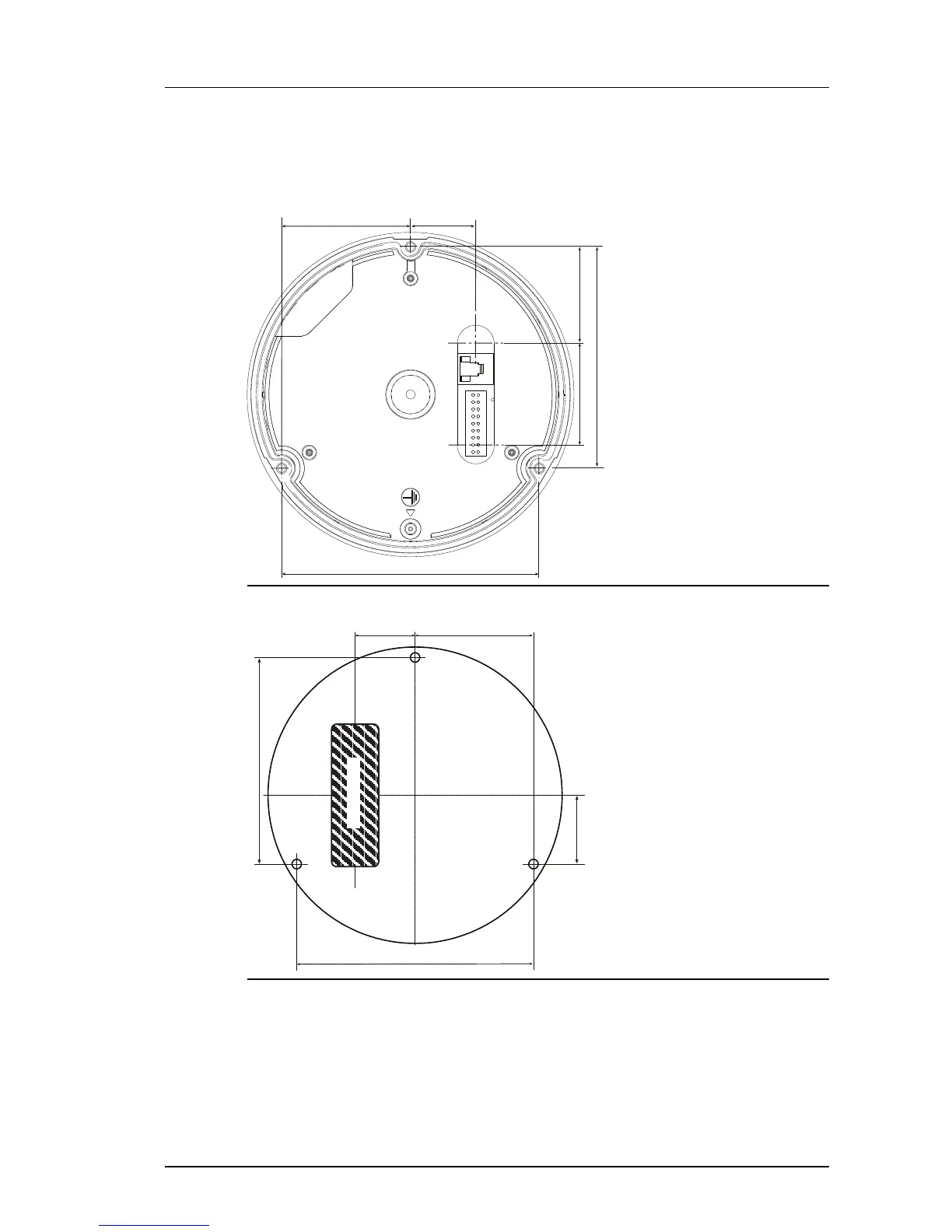

Figure 22: Underside of Standard Vandal Resistant variant without exit collar
32.0mm
62.75mm
125.5mm
36.0mm
108.75mm
30.0 x 75.0mm
Figure 23: Wall/ceiling fixing points and access hole
1. Use the profile template provided to mark out the fixing holes and cable access point
on the mounting surface.
2. Prepare the holes and make the cutout on the mounting surface, fitting appropriate
mounting plugs.
